AC30 Din Rail Modular Socket

Jiangxi Shuanghong Technology Electric Co., Ltd.
AC30 Din Rail Modular Socket thumbnail-1
AC30 Din Rail Modular Socket thumbnail-2
AC30 Din Rail Modular Socket thumbnail-3
AC30 Din Rail Modular Socket thumbnail-4
AC30 Din Rail Modular Socket thumbnail-5
AC30 Din Rail Modular Socket thumbnail-6
AC30 Din Rail Modular Socket photo-1
AC30 Din Rail Modular Socket photo-2
AC30 Din Rail Modular Socket photo-3
AC30 Din Rail Modular Socket photo-4
AC30 Din Rail Modular Socket photo-5
AC30 Din Rail Modular Socket photo-6
US$ 0.1 - 1 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
SG
Model Number:
AC30
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB NB/SH
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Brand Name SG
Model Number AC30
Type Other, Plug with Socket, Plug with Socket
Grounding Other, Standard Grounding, Standard Grounding
Rated Voltage 230/440V, 230/440V
Rated Current 10,16,25, 10,16,25
Application Other, Residential / General-Purpose, Residential / General-Purpose

Din rail modular socket Din rail modular socket Din rail modular socket Din rail modular socket Din rail modular socket Din rail modular socket Din rail modular socket



Product Description

Product Description

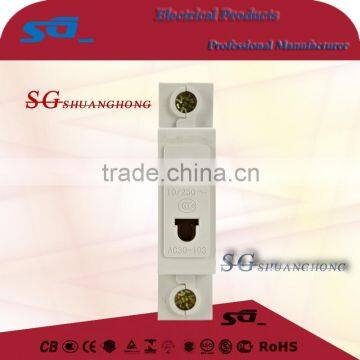

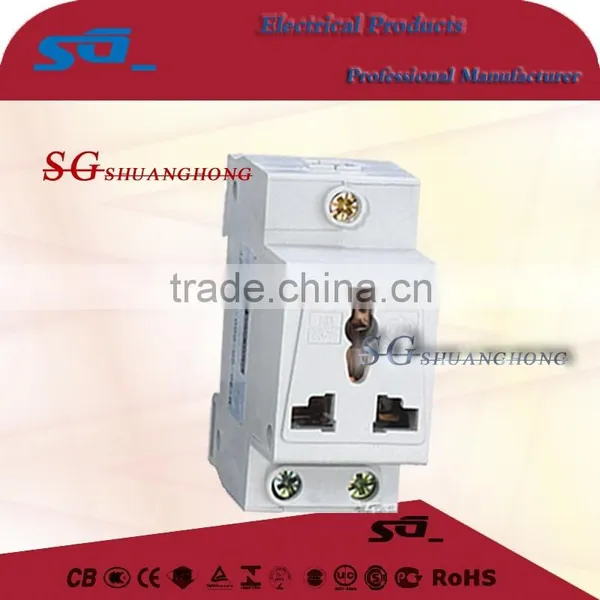

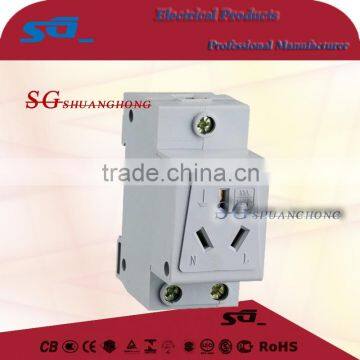

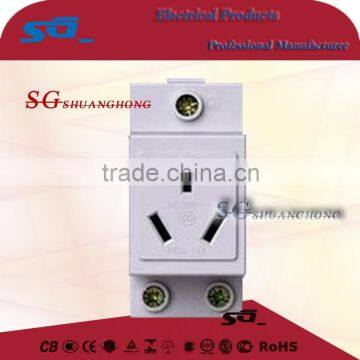

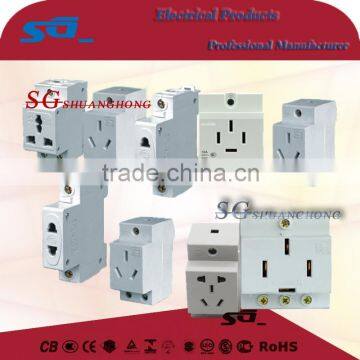

AC30 series Din rail modular socket



Application                                                              (AC30 Moudular Socket)
AC30 modular socket can be used together with our other modular products for connection of mobile devices,tools or electric and electronic non-modular equipments directly inside civil and industrial switchboards.
Specification
Type
Rated current
(A)
Pole S
Width(mm)
rated voltage
(V)
Connection
capacity
AC30-10/2
10
2
18
230
≤16mm2
AC30-16/2
16
AC30-25/2
25
AC30-10/3
10
3
36
AC30-16/3
16
AC30-25/3
25
54
AC30-16/4
16
4
54
400
AC30-25/4
25
72
Technical Data
Frequency:50 or 60Hz.Overvoltage category:3
Rated insulation voltage Ui:500VPullution degree:2
Rated impulse withstand voltageProtection class:IP20
Uimp:5000VStandard mounting:35mm DIN rail
Dielectric test voltage at ind.Freq.Ambient temperature:-5oC to +40oC
for 1min:2.8kVStorage temperature:-25oC to +70oC
Application                                                    (AU5 Modular Socket )
ACF and ACG 20 modular socket can be used together with our other modular products for connection of mobile devices,tools or electric and electronic non-modular equipments directly inside civil industrial switchboards.
Specification
Type
Rated current(A)
Standard
Width(mm)
Connection capacity
ACF
10,16,25
France
44.5
≤6mm2
AU5
10,16,25
Germany
44.5
≤6mm2
Technical Data

Frequency:50 or 60Hz.
Electrical life: 5000times

Mounting category:2,3
Rated insulation voltage Ui:500VPullution degree:2
Rated impulse withstand voltageProtection class:IP20
Uimp:5000VStandard mounting:35mm DIN rail
Dielectric test voltage at ind.Freq.Ambient temperature:-5oC to +40oC
For 1min.: 2.8kVStorage temperature:-25oC to +70oC

  Din rail modular socket Din rail modular socket Din rail modular socket Din rail modular socket Din rail modular socket



Product Overviews

Product Overviews

AC30 Din rail modular socket





AC30 Din rail modular socketAC30 Din rail modular socket

AC30 Din rail modular socket

FAQ

FAQ

FAQ

When can I get the price?

We usually quote within 24 hours after we get your inquiry. if you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality.

If you just need a blank sample to check the design , we will provide you sample for free, as long as you afford the express freight.

Can you do the design for us?

Yes. We have a professional team having rich experience in mcb/rccb design and manufacturing. Just tell us your ideas and we will help to carry out your ideas. It doesn't matter if you do not have someone to complete files. Send us high resolution images, your Logo and text and tell us how you would like to arrange them, We will send you finished files for confirmation.

How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 7-15 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.

What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 100,000 mcb within a week. Generally 0speaking, We suggest that you start inquiry two months before the date you would like to get the products at your country.

What is your terms of delivery?

We accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convinent or cost effective for you.

what kind of material we use?

Fire-proof plastic, red copper, 85%silver contact.
