Place of Origin	Jiangxi, China	Brand Name	SG
Model Number	TSGC	Usage	Other, Voltage Regulator
Phase	Other, Three Phase, 1,3	Current Type	Other, AC DC

Product Description

contact voltage regulator contact voltage regulator contact voltage regulator contact voltage regulator

Product Description

Product Description

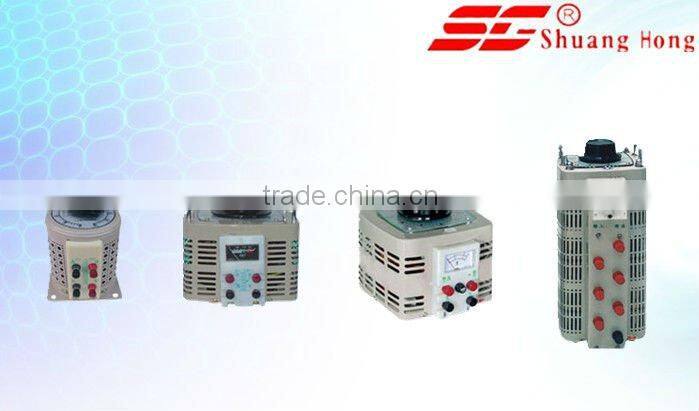

TSGC is special auto transformer which is connectded in different forms.Its output voltage can be regulated smoothly and continuously from zero to the maximum value.The provision of an indicating meter is made for the models TDGC.2,0.25,0.5/0.5(M).All the models find popular applications in industries,agriculture and scientific researches,and are pareicularly suited to servs as ancillary facilities for such equipment as various machine tools,transistor curve tracers,projecting TV sets,and analytical instruments in petroleum industry,etc.

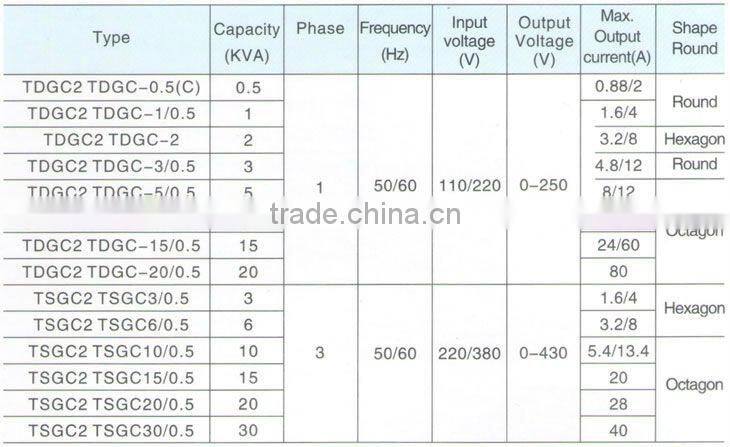

Regulator of the press table provide the basic parameters

Rated voltage regulator(output) capacity the rated capacity of the regulator determined using the following equation

Where P-rated voltage regulator(output)

capacity (KVA) m-phase, single-phase m=1 three-phase m=3

U2-rated output current(A)

U2-largest out voltage(V)(for the three-phase line voltage )

Regulator insulation levels: regulator insulation for the A-level grades,the average coil temperature rise limits for 60°c Ocerload capacity voltage re to allow a short period of time than the rated output current value, but can not exceed the provisions of the table

Type	Length	Width	height	Rated input voltae (V)	Output voltage range (V)	Weight
Type	Length	Width	height	Rated input voltae (V)	Output voltage range (V)	Weight
TDGC2-0.2KVA	12.7	11.2	12.5	220	0-250	2.4
TDGC2-0.5KVA	14.8	12.9	13.5	220	0-250	3.2
TDGC2-1KVA	19.1	17.6	17.7	220	0-250	5.4
TDGC2-2KVA	20.3	17.6	18	220	0-250	8
TDGC2-3KVA	22.7	20.7	19	220	0-250	10.2
TDGC2-5KVA	27.5	23	25.7	220	0-250
TDGC2-1.5KVA	15.5	13	33	380	0-430	9
TDGC2-3KVA	23	18	46	380	0-430	17.8
TDGC2-9KVA	25.8	21.5	48.2	380	0-430	29.8
TDGC2-0.5KVA	15.2	13.3	17.8	220	0-250	4
TDGC2-1KVA	20.5	18.2	20.5	220	0-250	5.7
TDGC2-2KVA	23	23	21.5	220	0-250	8.2
TDGC2-3KVA	26.5	27	20.9	220	0-250	11
TDGC2-5KVA	37.8	34.5	30.4	220	0-250	12.5
TDGC2-15KVA	42	35.5	56.5	220	0-250
TDGC2-6KVA	23	22.5	48.3	380	0-250	26.8
TDGC2-9KVA	25.5	27.5	48	380	0-250	35
TDGC2-15KVA	42	35.5	565	380	0-250
TDGC2-30KVA	42	35.5	108.2	380	0-250
