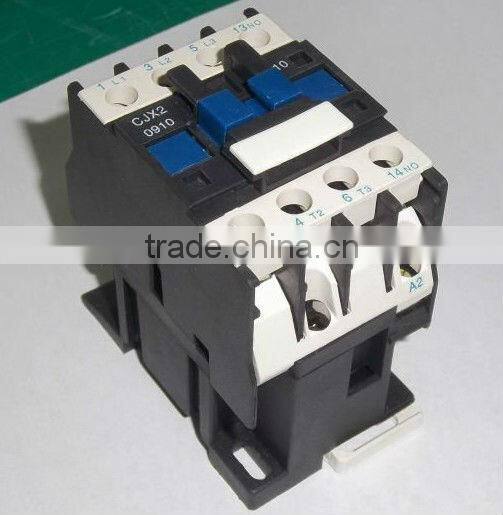

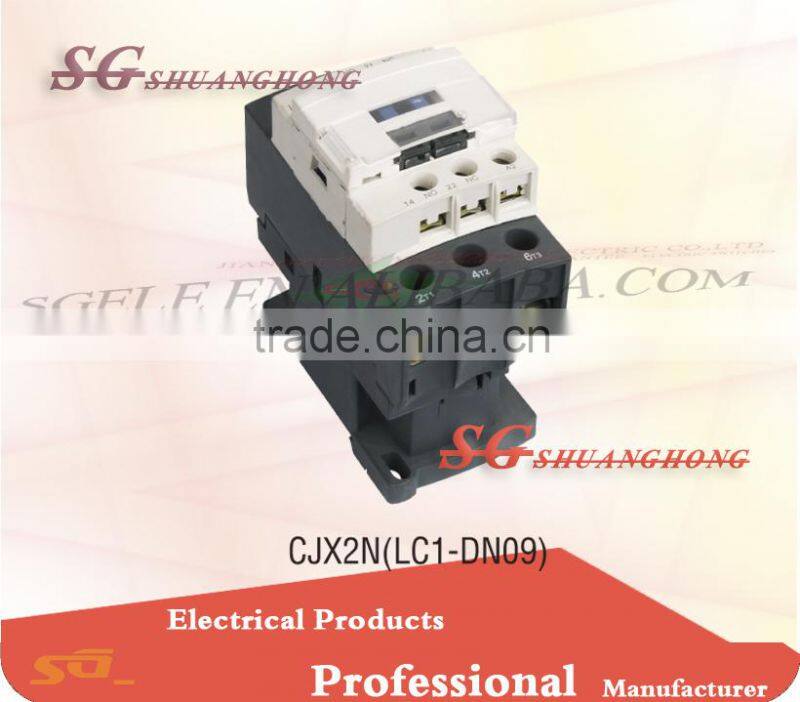

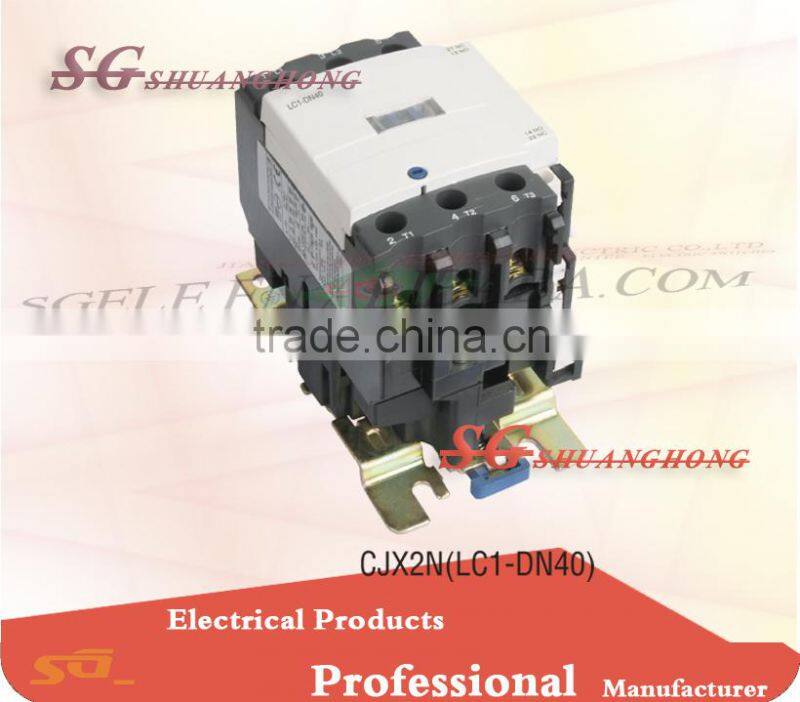

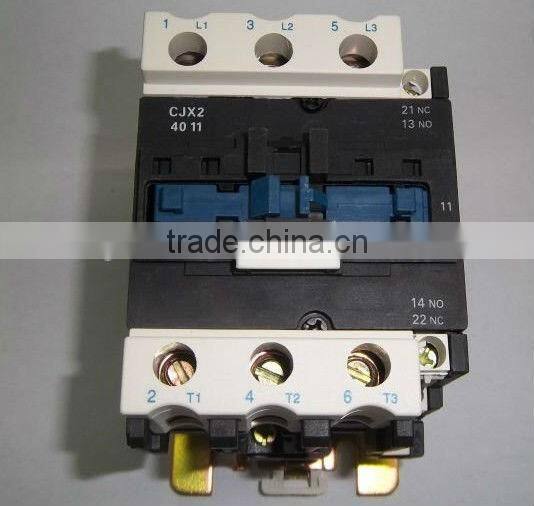

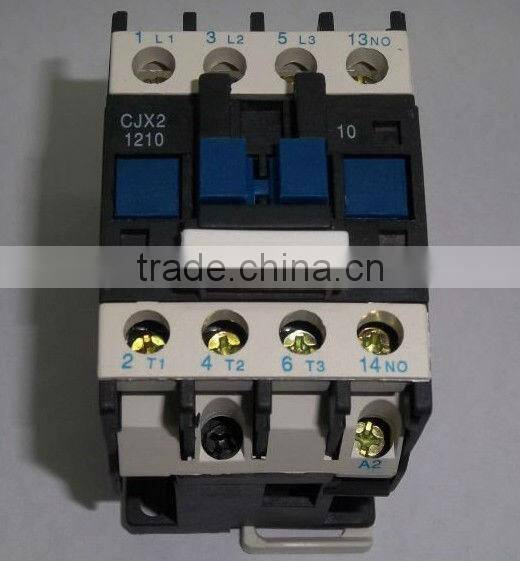

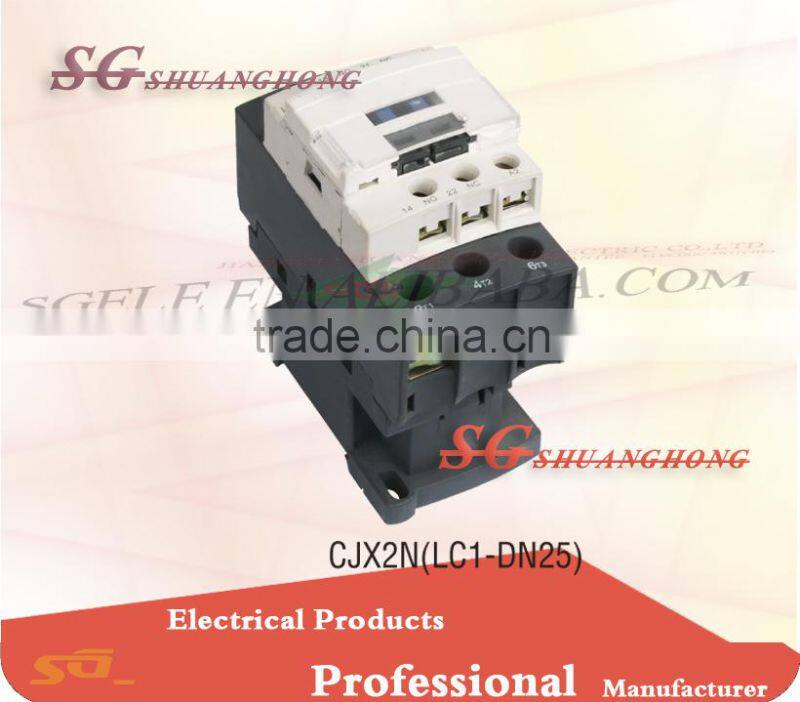

CJX2N(LC1-DN) AC Contactor

CJX2N(LC1-DN) AC Contactor thumbnail-1
CJX2N(LC1-DN) AC Contactor thumbnail-2
CJX2N(LC1-DN) AC Contactor thumbnail-3
CJX2N(LC1-DN) AC Contactor photo-1
CJX2N(LC1-DN) AC Contactor photo-2
CJX2N(LC1-DN) AC Contactor photo-3
US$ 0.1 - 3.3 MOQ: 3 Units
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
SG
Model Number:
LC1 AC Contactor
Contact Supplier Request Quote Chat Now
Jiangxi Shuanghong Technology Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NB/SH
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Brand Name SG
Model Number LC1 AC Contactor
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage Other, 24-440V
Main Circuit Rating Current Other, 9-95A

 AC contactor
 AC contactor
 AC contactor
 AC contactor
 AC contactor



Product Description

Product Description



           CJX2N series AC contactor is suitable for frequency 50/560Hz, rated
insulating voltage up to 1000V, rated operating current 9~150A under
AC-3 duty. It is mainly used for making/breaking electric circuit its
at a long distance & for frequent starting/stopping & controlling AC
motors, it is used in combination with thermal relay to compose a
magnetic motor starter.





Type

LC1-

D09

LC1-

D12

 LC1-D18

LC1-

D25

 LC1-D32
Rated working current (A) AC3 9 12 18 25 32
AC4 3.5 5 7.7 8.5 12
AC3 capacity of phase 3 squirrel-cage motor AC3(kW) 220/230V 2.2 3 4 5.5 7.5
380/400V 4 5.5 7.5 11 15
415V 4 5.5 9 11 15
440V 4 5.5 9 11 15
500V 5.5 7.5 10 15 18.5
660/690V 5.5 7.5 10 15 18.5
Rated heat current (A)   20 20 32 40 50
Electrical life AC4 x 104 20 20-15 20-7 15-7 15-7
AC3 x 106 2 2 2 2 2
Mechanical   20 20 20 20 20
Number of the contact   3P+NO
3P+NC



Type

LC1-

D40

LC1-

D50

 LC1-D65 LC1-D80 LC1-D95
Rated working current (A) AC3 40 50 65 80 95
AC4 18.5 24 28 37 44
AC3 capacity of phase 3 squirrel-cage motor AC3(kW) 220/230V 11 15 18.5 22 25
380/400V 18.5 22 30 37 45
415V 22 25 37 45 45
440V 22 30 37 45 45
500V 22 30 37 55 55
660/690V 30 33 37 45 45
Rated heat current (A)   60 80 80 125 125
Electrical life AC4 x 104 10-7 7 7-6 7-5 7-5
AC3 x 106 2 2 1.6 1.6 1.6
Mechanical   20 20 20 10 10
Number of the contact   3P+NC+NO



 AC contactor
 AC contactor



Product Overviews

Product Overviews

CJX2N(LC1-DN) AC ContactorCJX2N(LC1-DN) AC ContactorCJX2N(LC1-DN) AC Contactor



CJX2N(LC1-DN) AC ContactorCJX2N(LC1-DN) AC ContactorCJX2N(LC1-DN) AC ContactorCJX2N(LC1-DN) AC Contactor





FAQ

FAQ







When can I get the price?

We usually quote within 24 hours after we get your inquiry. if you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality.

If you just need a blank sample to check the design , we will provide you sample for free, as long as you afford the express freight.

Can you do the design for us?

Yes. We have a professional team having rich experience in mcb/rccb design and manufacturing. Just tell us your ideas and we will help to carry out your ideas. It doesn't matter if you do not have someone to complete files. Send us high resolution images, your Logo and text and tell us how you would like to arrange them, We will send you finished files for confirmation.

How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 7-15 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.

What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 100,000 mcb within a week. Generally speaking, We suggest that you start inquiry two months before the date you would like to get the products at your country.

What is your terms of delivery?

We accept EXW,FOB,CFR,CIF,etc. You can choose the one which is the most convinent or cost effective for you.

what kind of material we use?

Fire-proof plastic, red copper, 85%silver contact.
