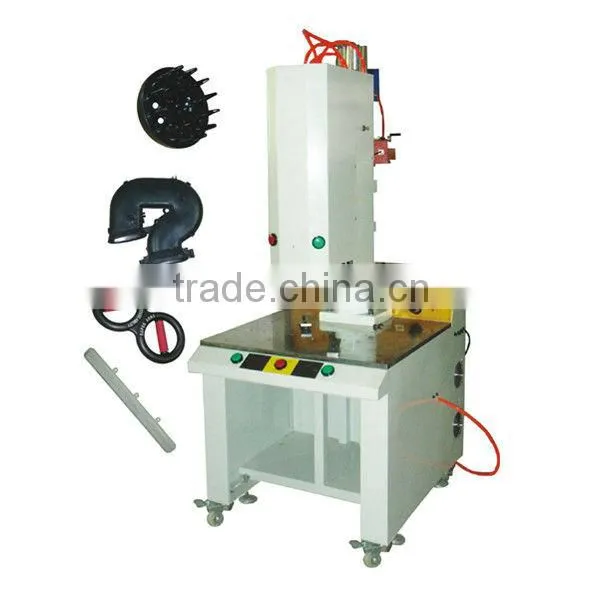

ultrasonic earphone welding machine
high stability, strong output 4600 W
quality imported component
CE



dongguan china supplier/ultrasonic earphone welding machine direct import from china







Technical parameters: ultrasonic earphone welding machine

Model	Frequency	Power	Weight	Voltage	Welding area (mm)	Dimension (mm)
XH-1532	15KHz	3200 W	250KG	220V	280(diameter)	680*600*1750



Model	Frequency	Power	Weight	Voltage	Welding area (mm)	Dimension (mm)
XH-1542	15KHz	4200 W	300KG	220V	300(diameter)	1000*750*1900

Mould of car air filter ultrasonic welding machine



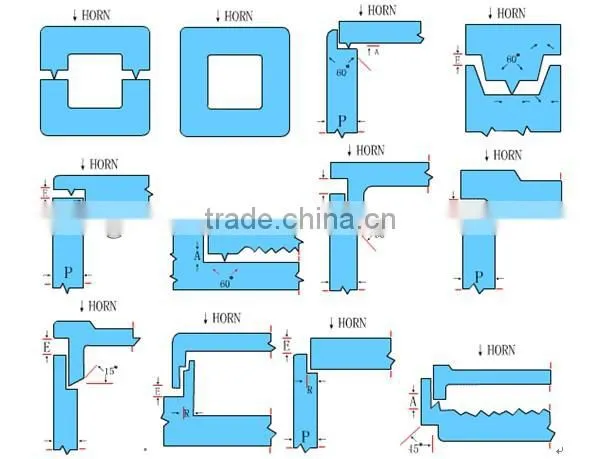

Product design

Packaging of ultrasonic earphone welding machine





Process of welding machine

Step 1 - Parts in fixture
The two thermoplastic parts to be assembled are placed together, one on top of the other, in a supportive nest called a fixture.
Step 2 - Horn contact
A titanium or aluminum component called a horn is brought into contact with the upper plastic part.
Step 3 - Pressure applied
A controlled pressure is applied to the parts, clamping them together against the fixture.
Step 4 - Weld time

The horn is vibrated vertically 20,000 (20 kHz) or 40,000 (40 kHz) times per second, at distances measured in thousandths of an inch (microns), for a predetermined amount of time called weld time. Through careful part design, this vibratory mechanical energy is directed to limited points of contact between the two parts. The mechanical vibrations are transmitted through the thermoplastic materials to the joint interface to create frictional heat. When the temperature at the joint interface reaches the melting point, plastic melts and flows, and the vibration is
stopped. This allows the melted plastic to begin cooling.
Step 5 - Hold time
The clamping force is maintained for a predetermined amount of time to allow the
parts to fuse as the melted plastic cools and solidifies. This is known as hold time.
(Note:  Improved  joint  strength  and hermeticity may be  achieved by  applying  a
higher force during the hold time. This is accomplished using dual pressure.)
Step 6 - Horn retracts
Once the melted plastic has solidified, the clamping force is removed and the horn
is retracted. The two plastic parts are now joined as if molded together and are
removed from the fixture as one part.

Our services of ultrasonic earphone welding machine



Xiehe provides you with the most thoughtful services

One year warranty and life long maintenance

Free training and instruction

Free replacements

24 hours online service

Sending technical staff overseas

Contact us Now !!!!

  Our company











FAQ



What is ultrasonic welding machine ?

This process works through the translation of AC current into mechanical vibrations using piezo-electric ceramics. The vibrations are then passed through the part to the joint at which point they cause stress and strain in the contact area between the two parts which leads to localized heating and melting of the polymer. Ultrasonic welding typically has weld times from one-tenth to two seconds and our ultrasonicwelding equipment can handle parts from approximately one-eighth inch diameter at high frequencies up to twelve inches square at low frequencies. Plastic Welding Machine

1. We have 15 Khz 20 Khz 28 Khz 35 KW 40 Khz ultrasonic plastic welding machine for different welding size and material

2. We have hand held spot welder, rotary model welder and slding table welder if needed.

3. PLS provde us the folliwing:

 Our machines
