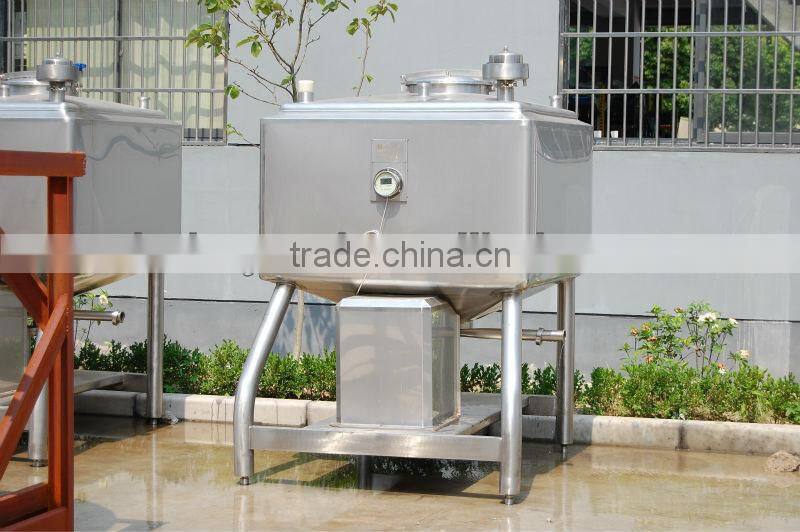

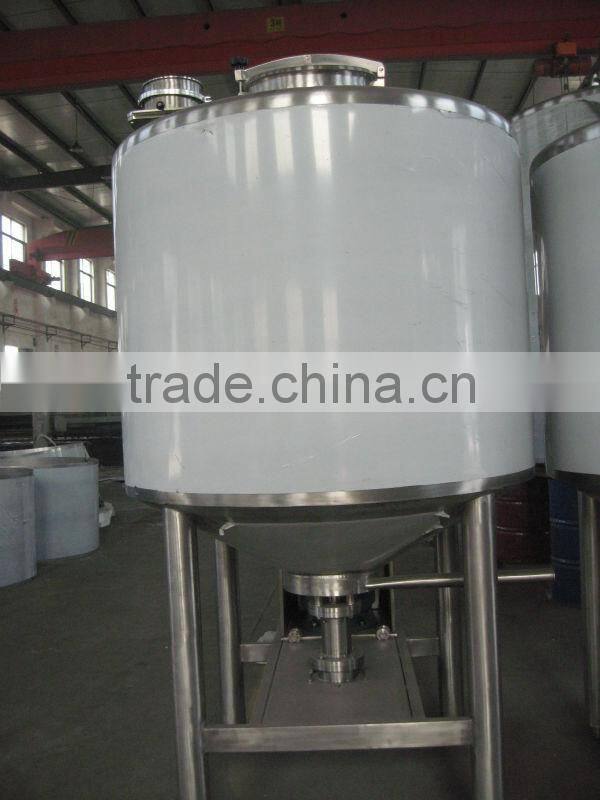

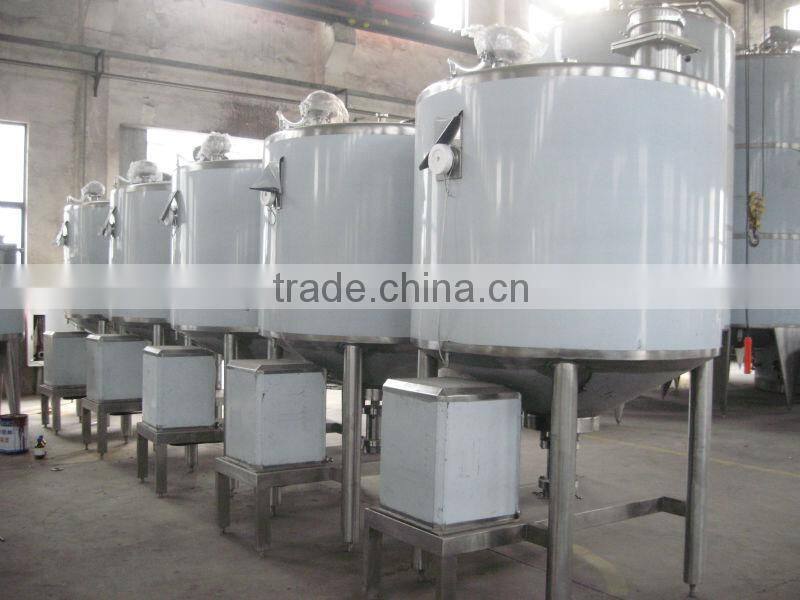

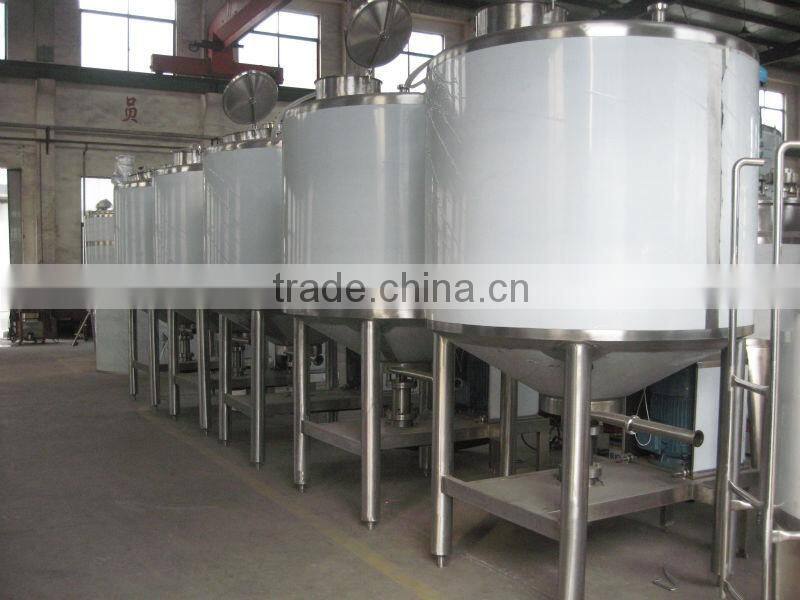

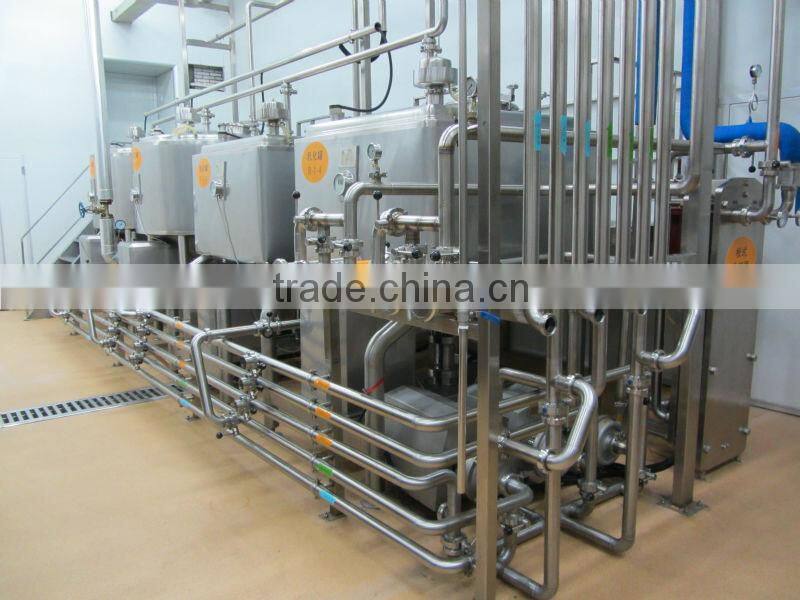

The description of this sugar blending tank :
Specifications the emulsification tank

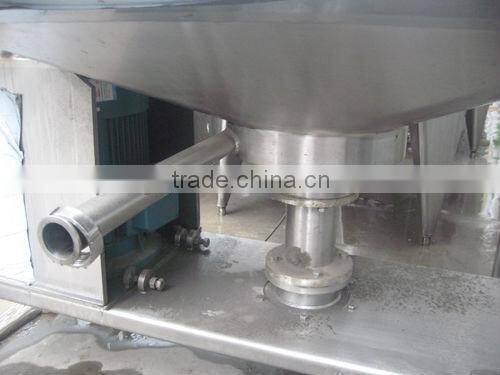

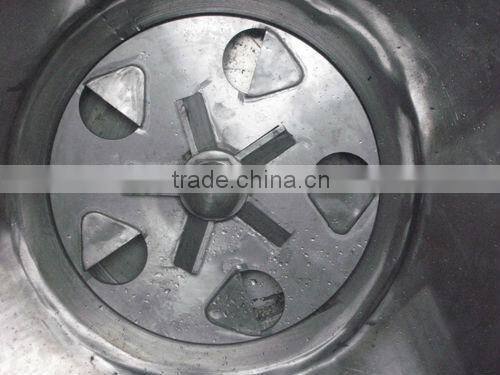

High-speed emulsification tank syrup mixing tank , rotated by the high speed mixer at bottom, speed of mixer is 1440rpm; This equipment is the best one among the similar types in which materials can be mixed well by stirring, extrusion and shearing.
This equipment is widely used for mixing sugar, milk powder, starch, stability reagent in emulsion and colloids.
1.advanced in technology 2.reliable in performance pact in structure 4.easy to operate 5.sanirary stainless steel
Application range:
1.It can be widely used in the fied of dairy, beverage, fruit juice and pharmaceutical chemical and biological engineering etc
2.It can be used to mix sugar glue and stabilizer and other ingredients in food productions.
Features:
1. Adopt the structure of internal tank and external cladding, whith heat preservation materials inside.
2. All materials are sanitary stainless steels
3. Humanized structure design and easy to operate
4.Well polished and there is no dead corner
5.Easy to clean
6.High speed of agitator
configuration

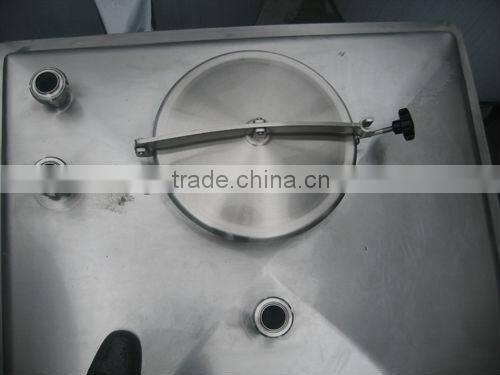

1.Quick opening manhole
2. Various types of CIP cleaners
3.Ajustable bracket
4.Thermometer
5. Level meter
7. Inlet and outlet hole, etc
(Our product can be designed according to the customers' requirements)
| Technical |
| Model | volume | External dimension | Maximum working pressure | Maximum working temperature | Agitator speed (r/min) | Motor power (kw) | material | Inlet/outlet for product |
| RHBF-400 | 400L | 950×900×1500 | normal pressure | 100°C | 1440 | 7.5kw | SUS304 | φ51 |
| RHBF-500 | 500L | 1100×1000×1500 | 100°C | 1440 | 7.5kw | SUS304 | ||
| RHBF-600 | 600L | 1200×1100×1600 | 100°C | 1440 | 11kw | SUS304 | ||
| RHBF-700 | 700L | 1300×1200×1600 | 100°C | 1440 | 11kw | SUS304 | ||
| RHBF-800 | 800L | 1400×1300×1700 | 100°C | 1440 | 11kw | SUS304 | ||
| RHBF-1000 | 1000L | 1500×1400×1800 | 100°C | 1440 | 15kw | SUS304 | ||
| RHBF-1500 | 1500L | 1600×1400×1900 | 100°C | 1440 | 18.5kw | SUS304 |
