Help CenterSemi-automatic Punch Press Can Body Blanking For Cutting Material of Tin Can Flower Fruit Pallet Tray Making Machine Line
Related Products
-
Automatic Full Line For Two-Pieces Pet Tin Can /Pet Jar Making LineUS$ 30,000 - 150,000MOQ: 1 Set -
Automatic Shoe Polish Metal Tin Can Box Making LineUS$ 30,000 - 450,000MOQ: 1 Set
-
Two-Piece Canned Chicken Meat Fish/Canned Beef/ Oval Food Tin Can MachineUS$ 30,000 - 500,000MOQ: 1 Set
-
CD Tin Can Case/Box/Container Machine , 2-Pieces Can Production LineUS$ 30,000 - 175,000MOQ: 1 Set
-
Two-Pieces Canned Pork/ Cream Ketchup With EOE Lid Can Making LineUS$ 35,000 - 175,000MOQ: 1 Set

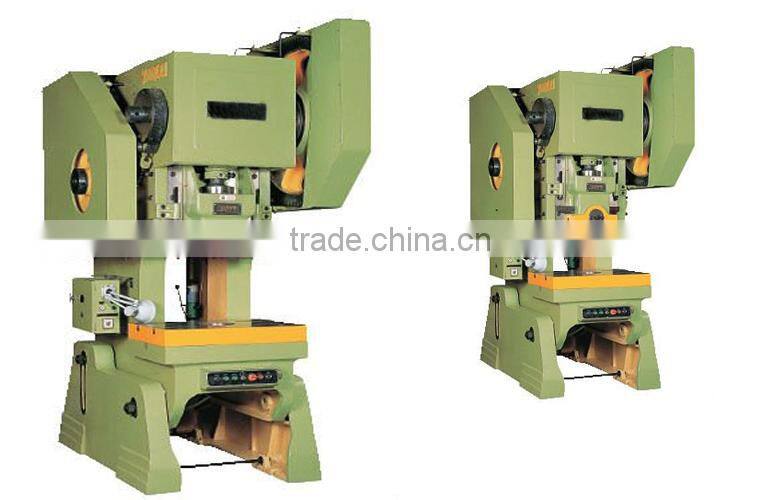

| Name | J23-80 Punch Press |
| Usage | It's used for can body blanking |
| Nominal force | 800kn |
| Stroke under nominal force6 | 9mm |
| Slide block stroke55 | 130mm |
| Number of stroke80 | 45mm |
| Max die set height | 290 |
| Die set height adjustment | 100mm |
| Distance from slide block center to the frame | 300mm |
| Worktable dimension | Φ580*860mm |
| Dimension of worktable hole | Φ200*45*Φ180mm |
| Thickness of bolster | 100mm |
| Hole dimensions in bed | Φ280*220*380mm |
| Dimensions of side block bottom surface | 280*380mm |
| Size of the handle hole | Φ60*75mm |
| Max. tilting angle of body | 20° |
| Distance between columns of body | 410mm |
| Motor power | 7.5kw |
| Outline dimension | 1990*1410*2945mm |
| Net weight | 5970kg |
Company Profile
Zhoushan Golden Wing Machinery Co.,Ltd., is a professional manufacturer & exporter specialized in various tin cans making machinery.
As a rich experienced manufacturer & exporter in this field, we always make the most suitable solutions for customers in tin cans / ends making.
‘High quality, competitive price & superior after-sale service’ is our principle.
We are always ready to develop long-term and good relationship with overseas customers.
We provide the following series of products:
Automatic Lid / Ring / Bottom Production Lines
Automatic EOE (easy open ends) Production Lines
Automatic Aerosol Cone / Dome Production Lines
Automatic Twist-off Lug Cap Production Lines
CNC Feeding System
Automatic Palletizer
Automatic Depalletizer
Wrapping Machine
Conveyor Device
Automatic Aerosol Tin Can Production Lines
Automatic Food Tin Can Production Lines
Automatic Beverage Tin Can Production Lines
Automatic Chemical Tin Can Production Lines
Semi-automatic 1-5L Round / Square / Rectangular Tin Can Production Lines
Semi-automatic 10-20L Paint Bucket Production Lines
Semi-automatic 15-18L Square Tin Can Production Lines
Semi-automatic 40-60L Bucket Production Lines
Press Dies
And so on......
‘To be the best supplier’ is the attitude of our company.
We will keep on providing modern and advanced machines to bring greater value-added benefit for our customers.
If you want to know more about us, please don’t hesitate to contact us at any time.
♥ Welcome to our company!
