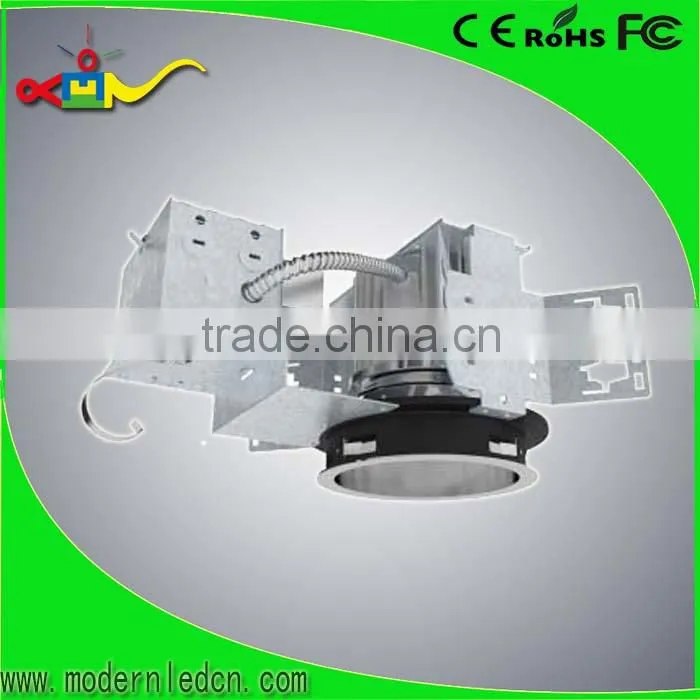

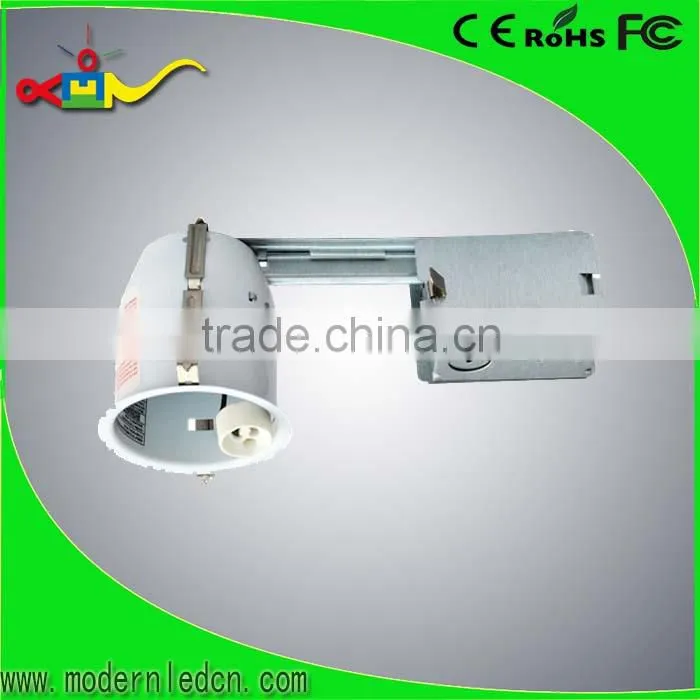

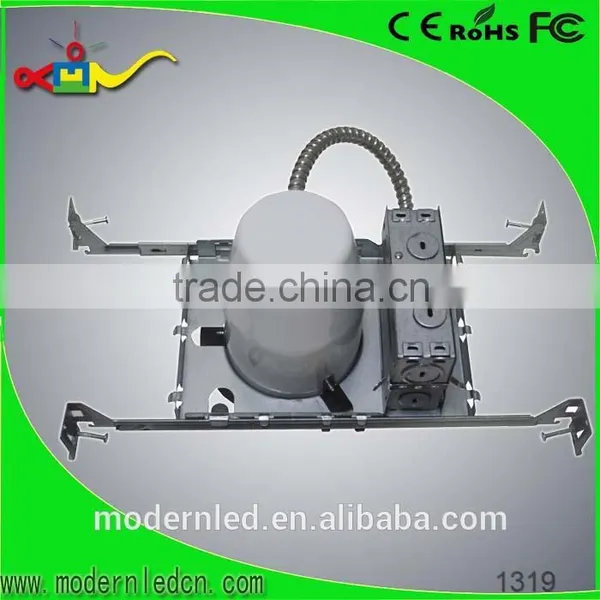

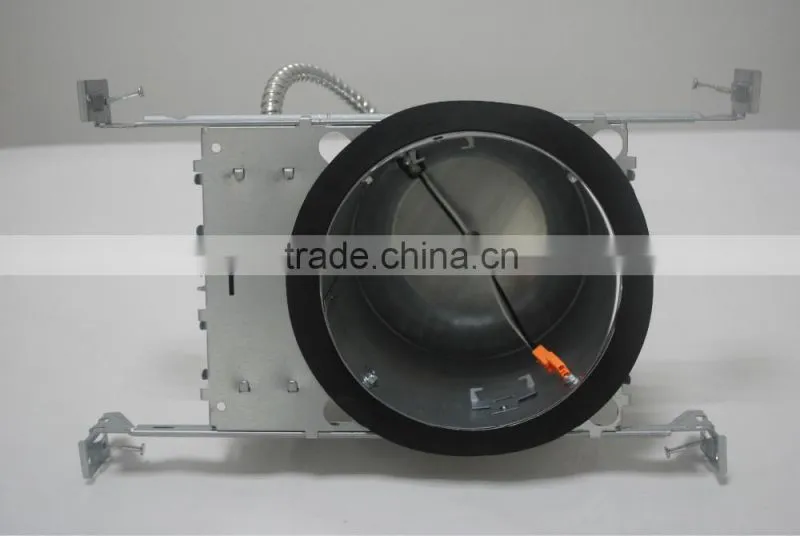

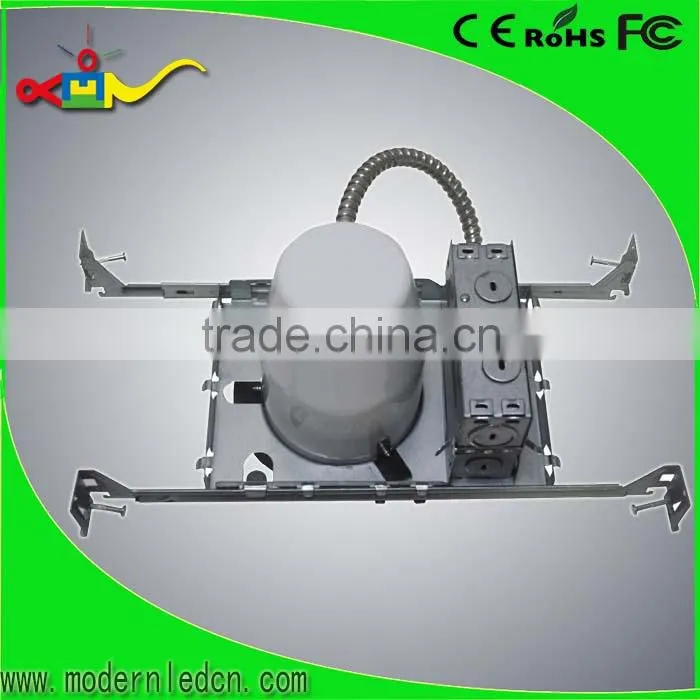

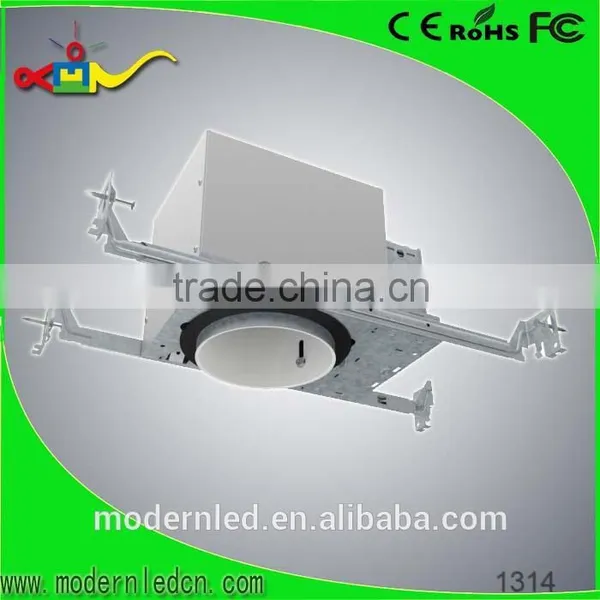

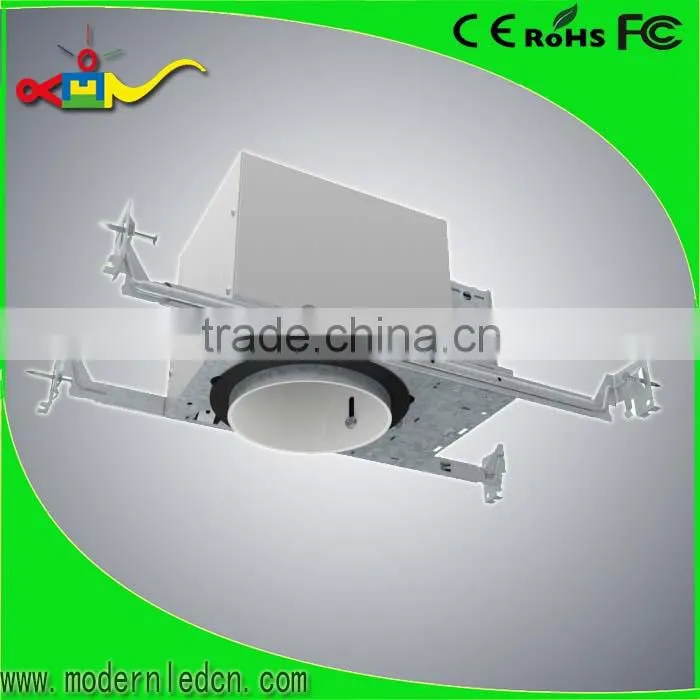

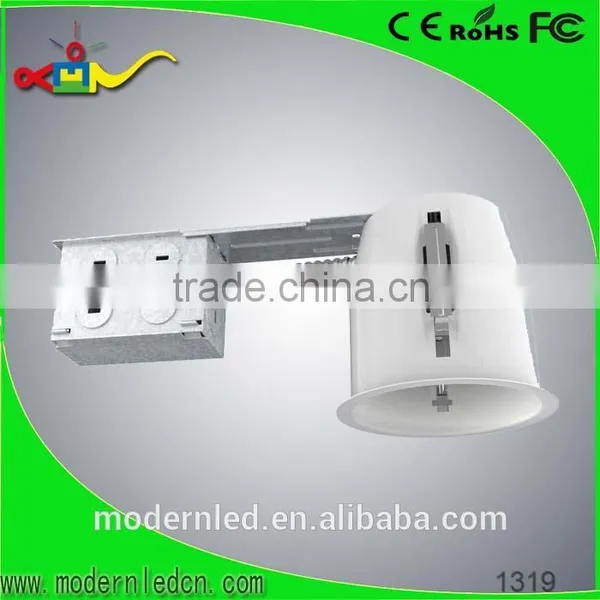

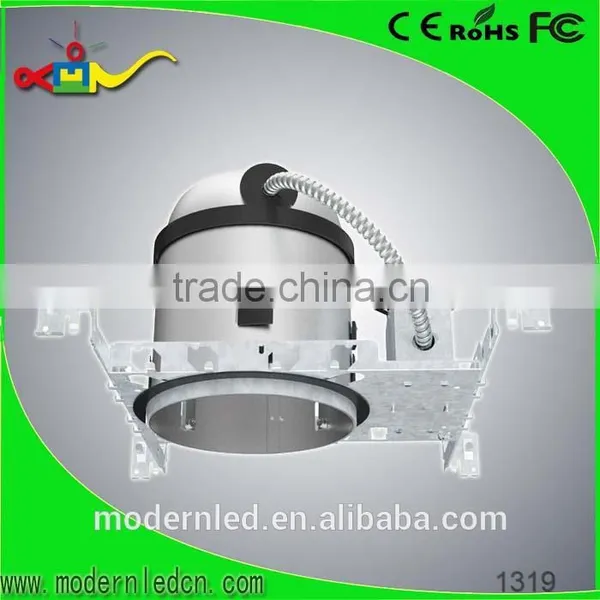

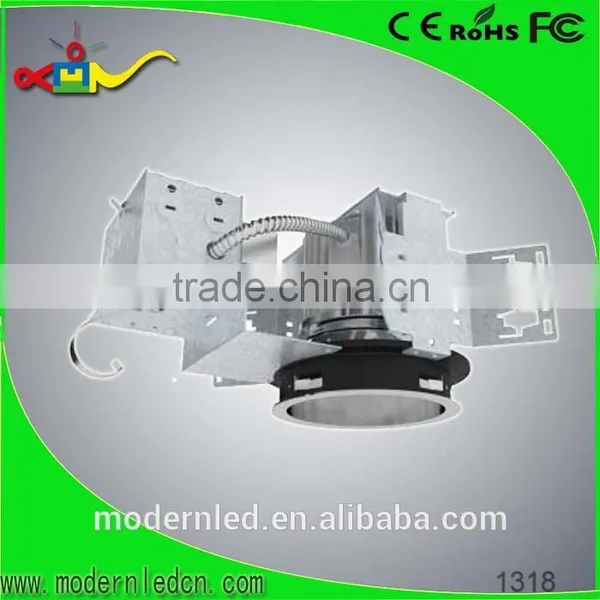

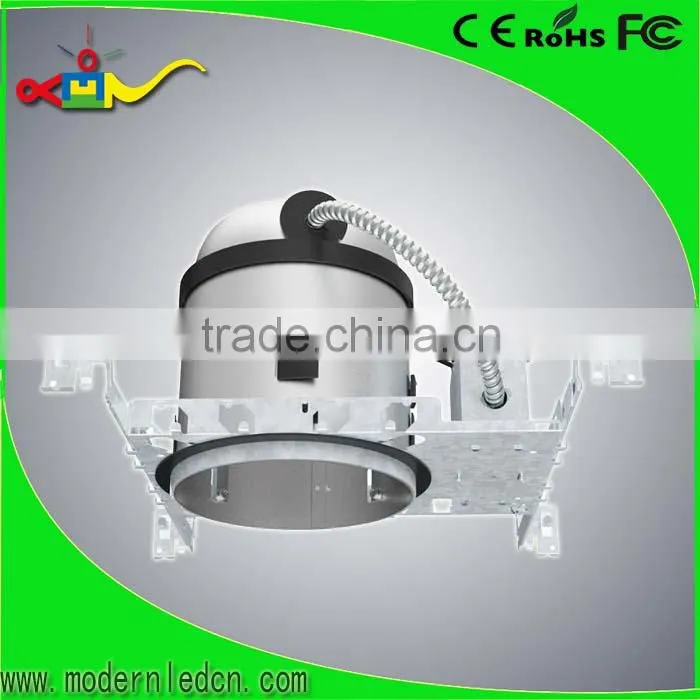

UL residential Common housing 6 inch Airtight Quick Install Housing IC 6" recessed light cover
1. Specification:
| Product Name | Grille down light | Model No. | ML-UL6-12 |
| Power | 12W | Voltage | AC85-265V |
| Lumen | 1100lm | Frequency | 50/60Hz |
| CRI | 80% | Power Factor | 0.95 |
| LED | Epistar 12w | LED Qty | 1 |
| Beam angle | 15, 25° | CCT | 3000-6500K |
| Color | black, white | Working Temperature | _30~60de |
| Material | Aluminum | Weight | 0.8kg |
| cut size | Packing | carton |
2. Features:
Application:
The American style down light is designed for insulated ceiling and can be in direct contact with insulation material. The down light offers a wide choice of trim types including reflector, lenses and wall wash trims, This AIR-TIGHT Housing design prevents airflow through the ceiling, helping save on heating and cooling costs.
Housing:
Galvanized steel housing painted white.
5-1/2’’ height allows use in 2x6’’ joist construction.
Housing adjusts for ceiling up to 1-1/4’’ thick.
Junction box:
Listed for through branch circuit wiring.
1/2’’ knockouts with true pry-out slots and knockouts with romex cable clamp.
Ground wire provided on J box;
Mounting Frame:
Galvanized steel construction;
8’’ L X 5-1/2’’ W
Transformer:
120v magnetic transformer steps line voltage down to lamp operating voltage for lamps up to 15w max;
Available 277v-12v transformer;
Lamp:
Led mar16 , 12v 12w Max not included.
Bar Hangers:
Maximum extension of 24’’ allows for extra distance between joists;
Housing can be positioned at any point within 24’’ joist span;
Score lines allow toolless shortening for 12’’ joists, bar hangers maybe repositioned 90 degrees.
Integral T bar clips snaps onto T bars no additional clips are required.
Socket : gu5.3 ceramic b-pin socket.
