Help CenterMini Toggle Switch 1122 T513B C513B
US$ 0.5 - 1.5
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TENN
Model Number:
1122 T513B C513B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fireproofing Slide Switch 1122 T513B C513BUS$ 0.5 - 1.5MOQ: 20 Pieces -
Taiwan Standard Toggle Switch 1122 T513B C513BUS$ 0.5 - 1.5MOQ: 20 Pieces
-
250V 15A Toggle Switch 1122 T513B C513BUS$ 0.5 - 1.5MOQ: 20 Pieces
-
1122 T513B C513B Micro Toggle SwitchesUS$ 0.5 - 1.5MOQ: 20 Pieces
-
1122 T513B C513B ON-OFF-ON 3 Pole Toggle SwtichUS$ 0.5 - 1.5MOQ: 20 Pieces
Place of Origin
Zhejiang, China
Brand Name
TENN
Model Number
1122 T513B C513B
Max. Current
15A
Max. Voltage
250V
Mechanical Life
500,000
Specifications
1. 15A 250V2.ON-OFF-ON 3 pole
3.Tab terminal is optional
4.Spring return is optional
5.Waterproof cap is optional

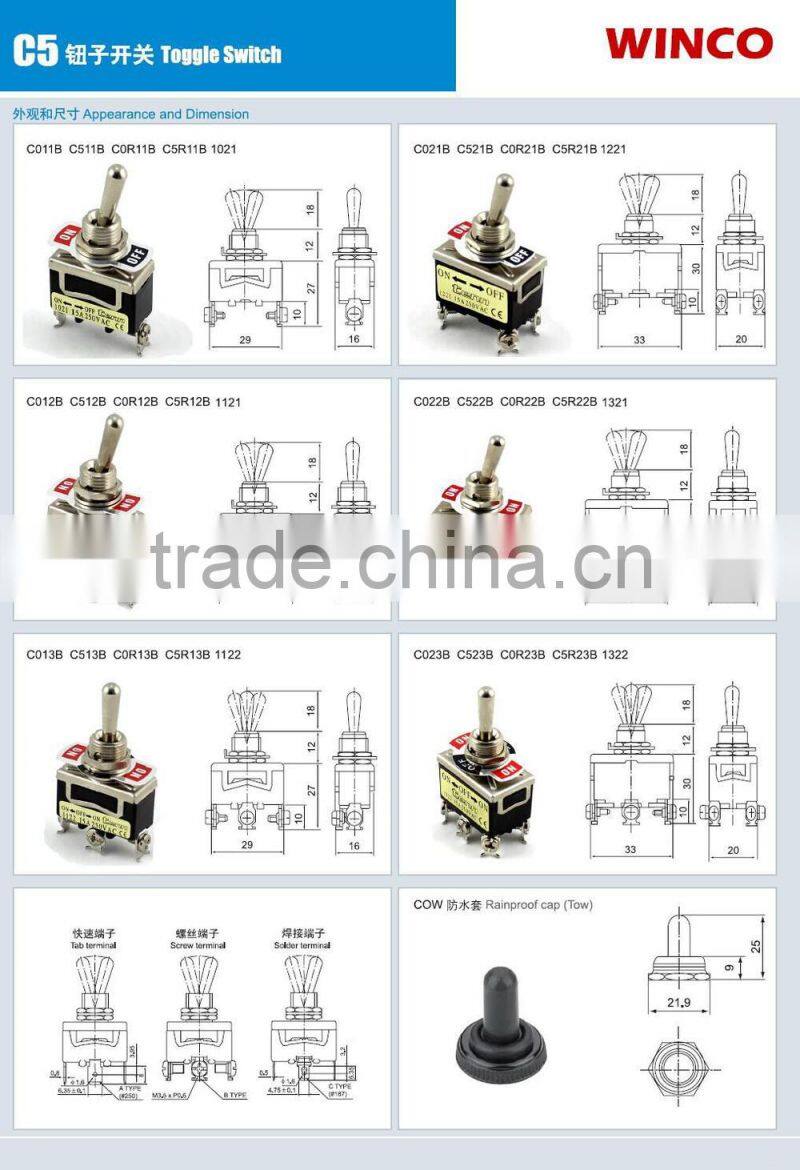

1.Series reference
| Toggle Switch 15A | 1021 2P On-Off |
| Toggle Switch 15A | 1121 3P On-On |
| Toggle Switch 15A | 1122 3P On-Off-On |
| Toggle Switch 15A | 1221 4P On-Off |
| Toggle Switch 15A | 1321 6P On-On |
| Toggle Switch 15A | 1322 6P On-Off-On |
2. Specification
- Current: 10A or 15A
- Fixed type and auto-return type (spring return)
- Connect terminal normal is screw terminal, also can select solder terminal and tab terminal (pin type)
- Rainproof cap, water-proof and oil-proof
- Mounting hole: 12mm
- Contact resistance: 15MQ max. (initial)
- Insulation resistance: 100M Q above under 500VDC
- Dielectric strength: 2000VAC, 50/60HZ For 1 minute
- Frequency: 10 to 55Hz, 1.5mm double amplitude
- Ambient temperature: -25C~+80C
- Humidity: 85% RH max.
- Mechanical Life time: 500,000 operations/min.
- Electrical Life time: 100,000 operations/min.
type |
AC Load |
DC Load |
10A |
10A 250V 15A 125V |
0.4A 250V 0.8A 125V |
15A |
15A 250V 20A 125V |
0.5A 250V 0.9A 125V |
10A |
10A 250V 15A 250V |
0.2A 250V 0.4A 125V |
15A |
15A 250V 20A 125V |
0.3A 250V 0.5A 125V 15A 30V |
10A |
300W 100V 500W 200V |
- |
15A |
400W 125V 800W 250V |
7A 30V |
10A |
200W 125V 300W 250V |
- |
15A |
400W 125V single phase |
|
10A |
550W 250V three phase |
|
15A |
750W 250V three phase |

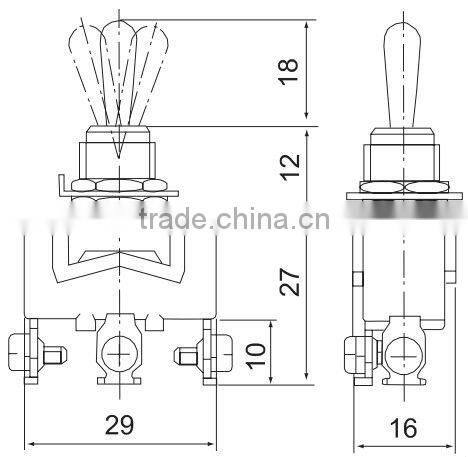

3. Dimension
4. Waterproof Cap
5. Tab Terminal

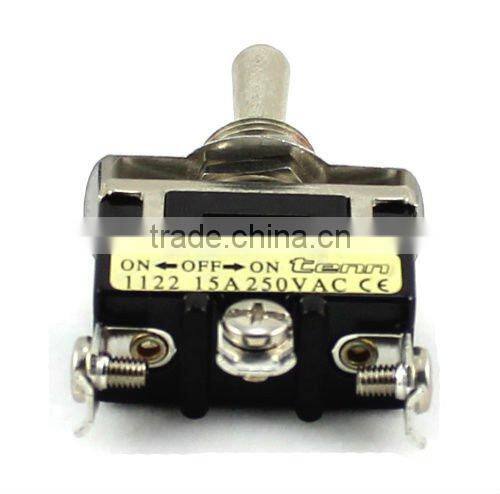

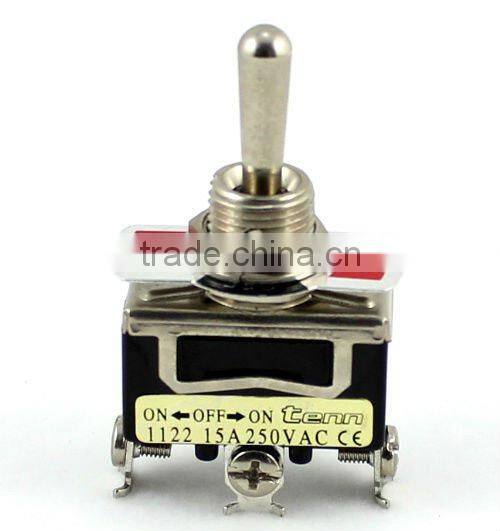

6.Product Photo
