ZP Rectifier Diode(Capsule version)
Current From 200A to 5000A
Reverse voltage up to 3800V

ZP Rectifier Diode ZP200A ZP300A ZP400A ZP500A ZP600A ZP800A ZP1000A ZP1200A ZP1500A ZP2000A ZP2500A ZP3000A ZP3500A ZP4000A ZP5000A

1.Feature
Low forward voltage drop
Reverse voltage up to 3800V
Capsule type metal-ceramic packages for double sided cooling

2.Typical application
All purpose high power rectifier diode
High power resistance welding equipment
Non-controllable and half-controllable rectifier
snubber diode

3.Specification

Type
 VRRM IF(AV) THS 55°C IRRM VFM/IFM 25°C RTH(j-hs) Tjm Force Outline
  V A mA V/A °C/W °C KN Fig
ZP200A 100-5000 200 16 1.8/600 0.900 150 3.3~5.5 1,7,8,12
ZP300A 100-5000 300 30 1.8/900 0.065 150 5.3~10 2,3,9,13,23
ZP400A 100-5000 400 40 1.8/1200 0.040 150 10~20 4,10,14,15,24
ZP500A 100-5000 500 40 1.8/1500 0.040 150 10~20 4,10,14,15,24
ZP600A 100-5000 600 40 1.8/1800 0.033 150 10~20 4,10,14,15,24
ZP800A 100-5000 800 80 2.2/2400 0.022 150 19~26 5,11,16,25,16
ZP1000A 100-5000 1000 80 2.0/3000 0.022 150 19~26 6,17,28,29,30
ZP1200A 100-5000 1200 120 2.2/3000 0.020 150 21~30 18,27,34
ZP1500A 100-5000 1500 120 2.0/3000 0.020 150 21~30 18,27,34
ZP2000A 100-5000 2000 160 2.2/4000 0.016 150 30~40 20
ZP2500A 100-5000 2500 200 2.2/5000 0.011 150 35~47 21
ZP3000A 100-5000 3000 160 2.0/5000 0.016 150 30~40 20,21,32
ZP3500A 100-5000 3500 200 2.0/5000 0.011 150 35~47 20,21
ZP4000A 100-5000 4000 200 2.0/5000 0.009 150 70~95 21,33
ZP5000A 100-5000 5000 50 1.25/5000 0.0135 170 19~26 33

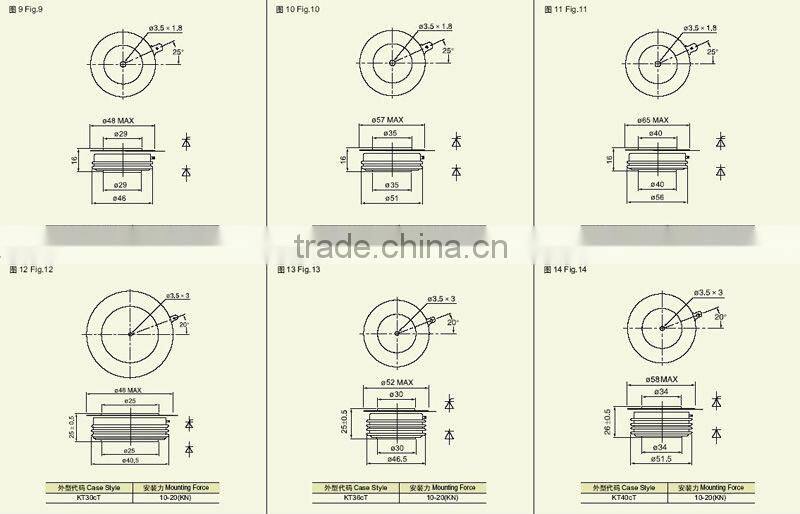

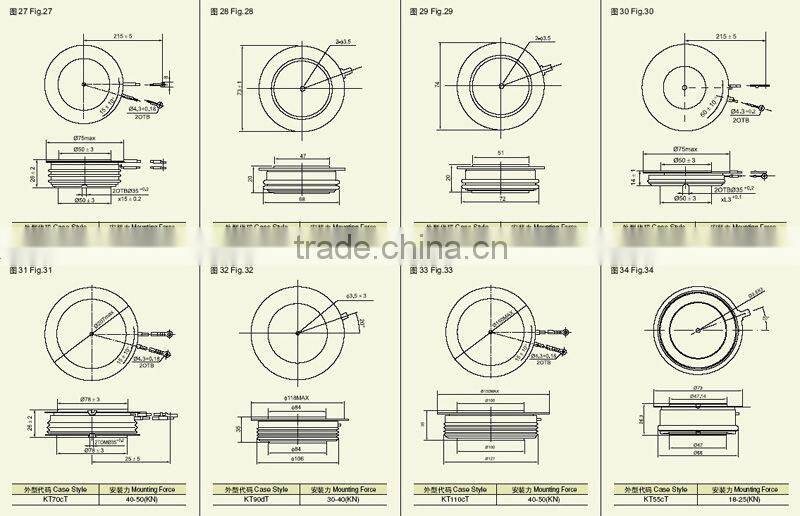

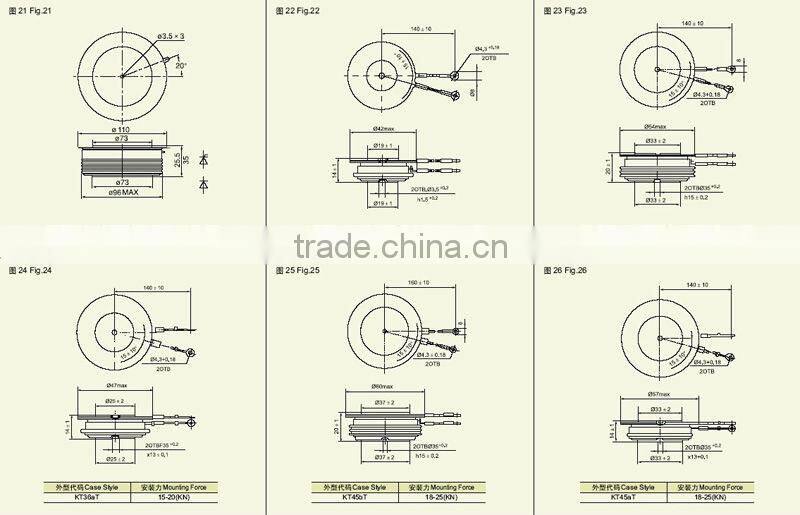

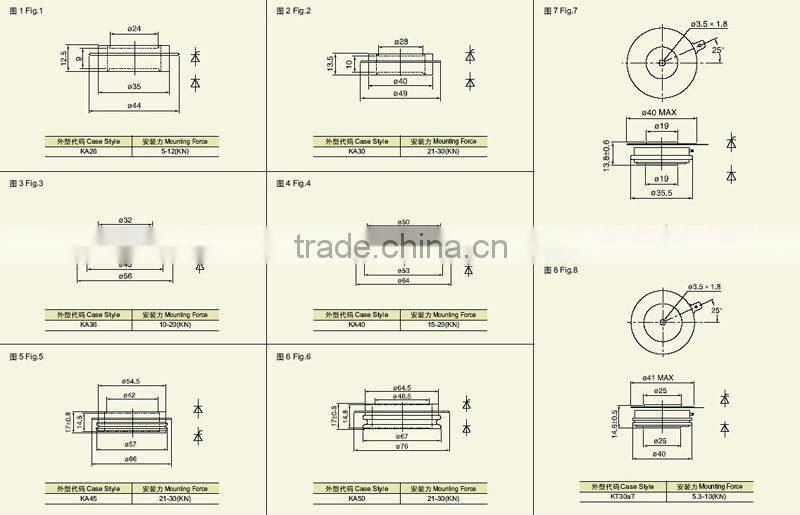

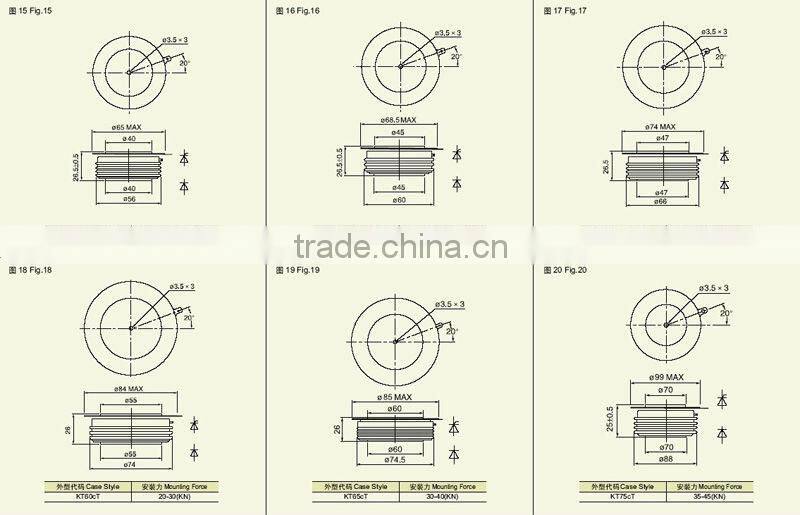

4.Drawing

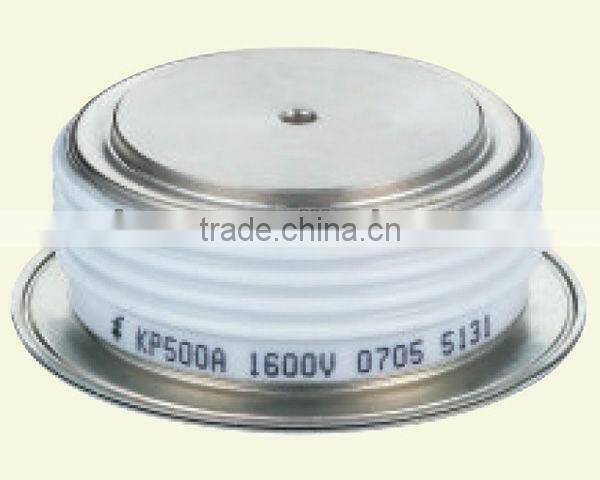

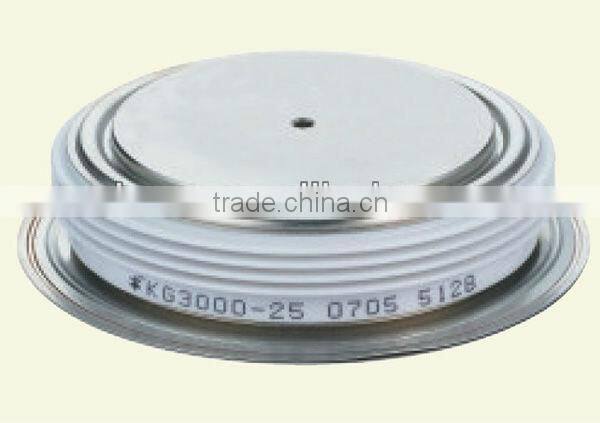

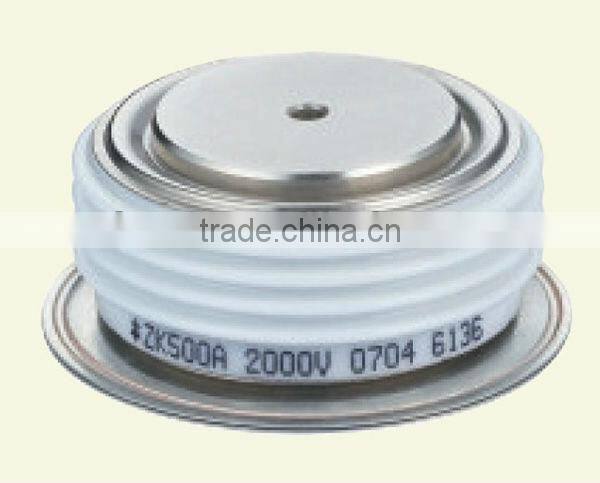

Capsule Version Diodes ZP 3000A 3000VCapsule Version Diodes ZP 3000A 3000VCapsule Version Diodes ZP 3000A 3000V

Capsule Version Diodes ZP 3000A 3000VCapsule Version Diodes ZP 3000A 3000V

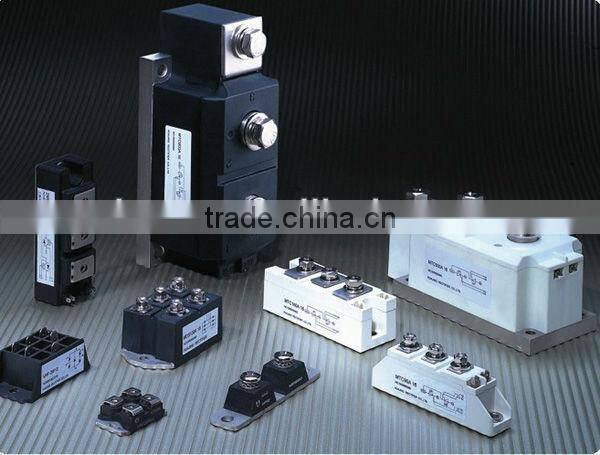

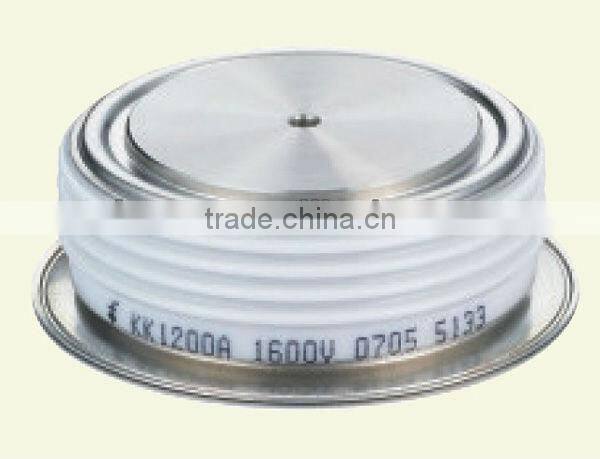

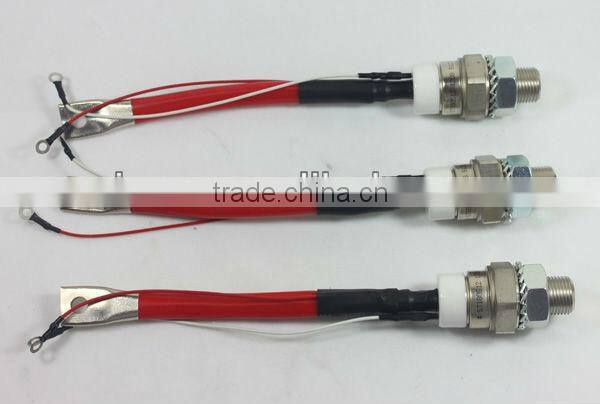

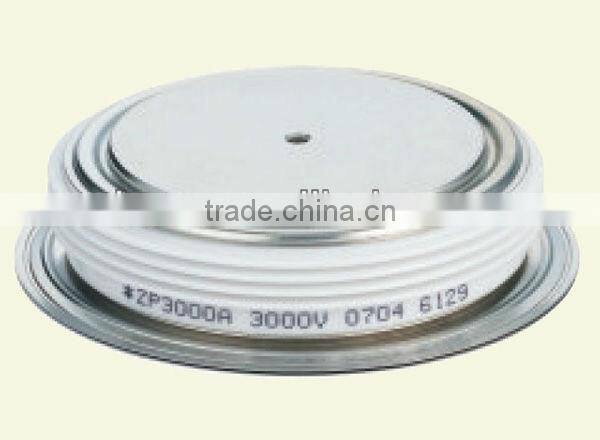

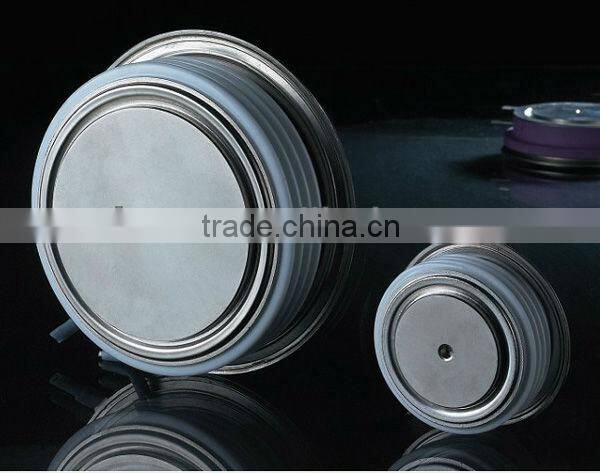

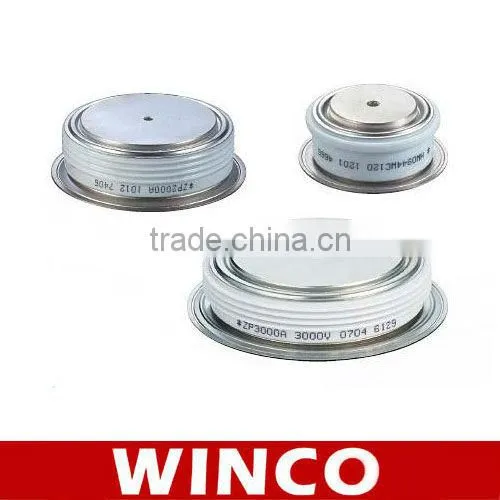

5.Photos
