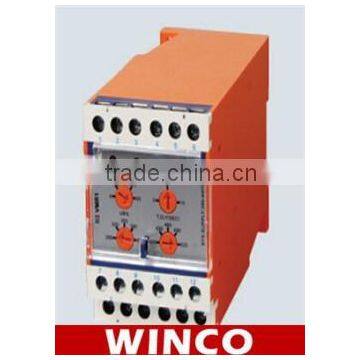

Help CenterBSP B1 BVMR7 B2 VMR1 Series Phase Failure Relays
Related Products
Specifications
Fixed/adjustable undervoltage/over-voltage settingsResetting Auto / Manual / Remote
User-friendly LED indications
These relays are best suitable for monitoring balanced or unbalanced supplies, either of single phase, 3-phase 3-wire or 3-phase 4 wire loads powered by generators, UPS, stabilizers, inverters, or Mains (by Electricity Boards / Utilities); in AMF panels, PCCs, distribution boards and for power monitoring of individual loads / motors / pumps.
Models
BSP B1
BSP B2
BVMR7
BP1 PFS1
BHLV B2
BLV B2
BMR B2
B1 HLS1
B2 VMR1
B2 VMR2
B2 VMR3
Features
Fixed/adjustable unbalance settings
Fixed/adjustable undervoltage/over-voltage settings
Fixed/adjustable trip delays
Built-in or external power supply
Resetting Auto / Manual / Remote
Output contacts: 1 CO or 2 CO
Choice of enclosures (DIN-Rail,Plug-in)
Models with Micro-Controller based design
Use of SMD Technology
User-friendly LED indications
Protections/Functions
Phase Failure (Phase Loss / Single Phasing)
Phase sequence reversal,
Voltage Unbalance,
Under Voltage,
Over Voltage
Dry Run
Ordering Instructions
Product Family Name
Model Name
System Supply Voltage & Frequency
Aux. Supply / Control supply voltage
