2016 Hot sell 4A series 2 position 5 way solenoid valve pneumatic air valve in china
- 10000 Piece / Pieces per Month
- shanghai ningbo
- T/T Credit Card
Product Details
Standard or Nonstandard: | Standard | Structure: | Check | Pressure: | Low Pressure |
Power: | Solenoid | Material: | Alloy | Temperature of Media: | Medium Temperature |
Media: | Other, Air | Port Size: | G1/8" G1/4" G3/8" G1/2" G 2" M5X0.8 | Place of Origin: | Zhejiang, China |
Model Number: | 4A Series | Brand Name: | Autoair | Application: | General |
Product Description
2016 Hot sell 4v series 2 position 5 way solenoid valve pneumatic air valve in china
our website:

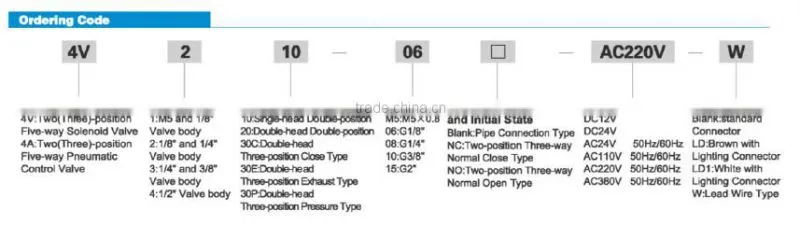

Ordering Code
Specifications
Model | 4V110~410 4A110~410 | 4V120~420 4A120~420 | 4V130~430C/P/E 4A130~430C/P/E |
Position and Way NO. | Two-position Five-way Three-position Five-way | ||
Working Medium | 40Micron Filtered Air | ||
Motion Pattern | Inner Guide Type | ||
Working-pressure | 0.15~0.8Mpa | ||
Max Pressure Resistance | 1.2Mpa | ||
Operating Temperature | 5~50°C | ||
Voltage Range | -10%~+10% | ||
Power Consumption | AC:4.5VA DC:3W | ||
Insulation &Protection Class | F Class.IP65 | ||
Electrical entry | Lead Wire or Connector type | ||
Highest Action Frequency | 5Cycle/Second | ||
Response time | 0.05Second |

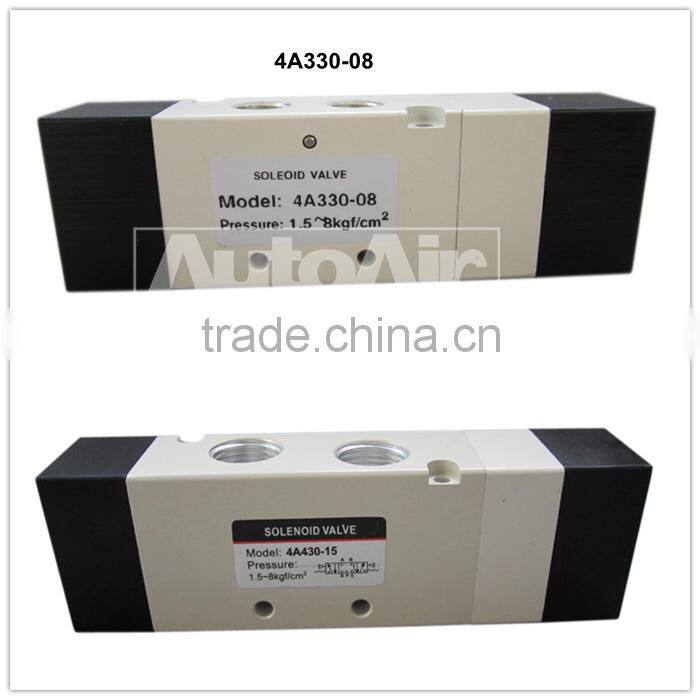

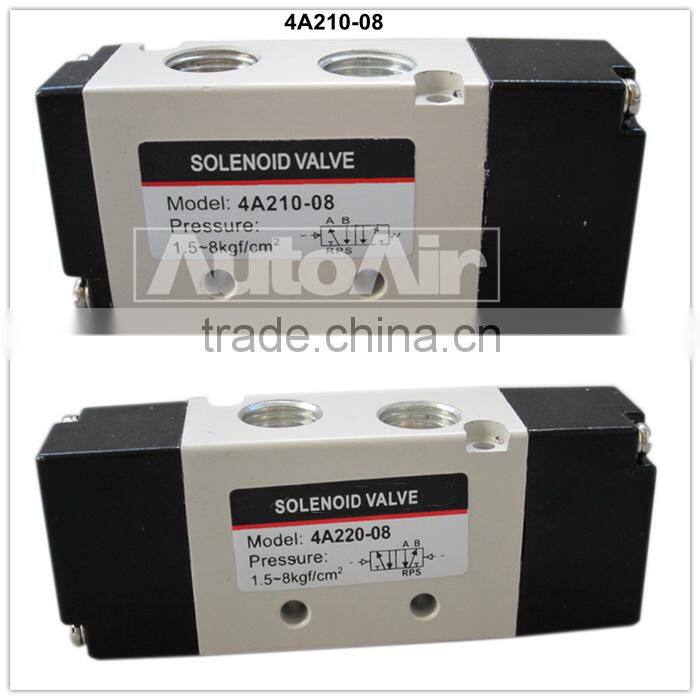

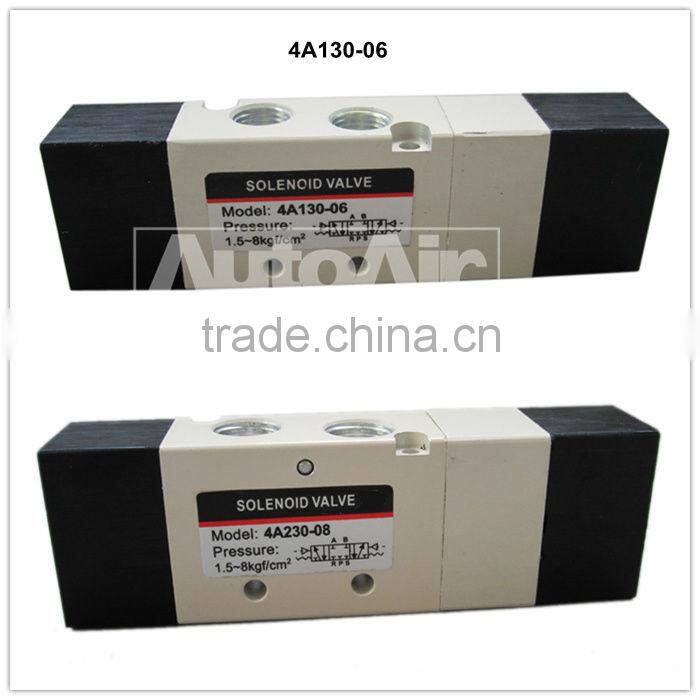

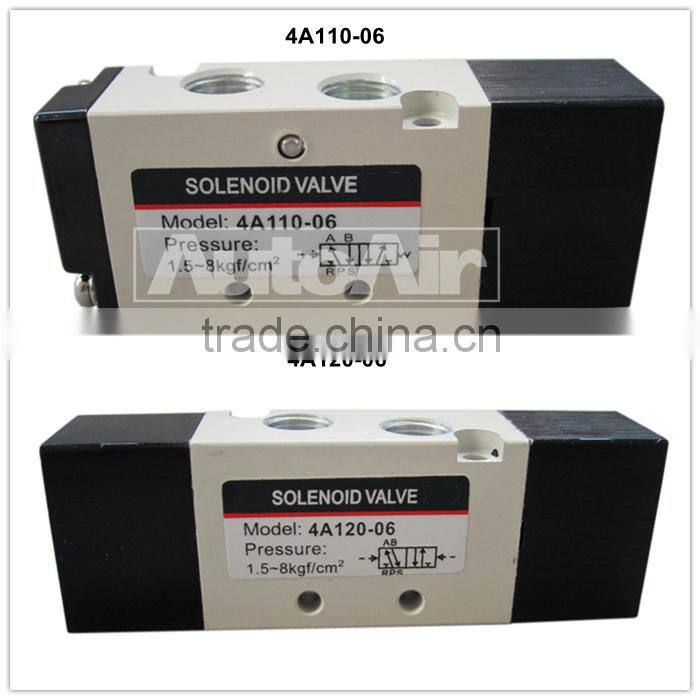

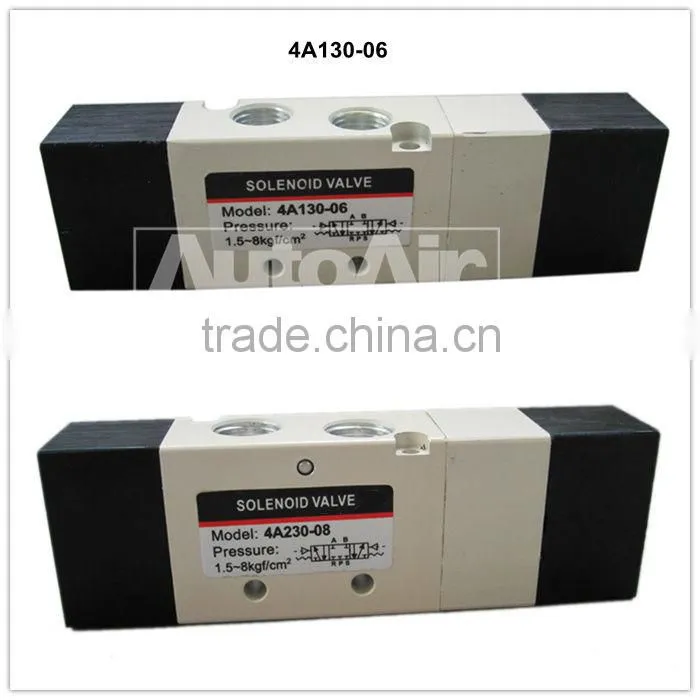

Product Photo
Work Shop
Trade terms:
1,Payment: T/T,LC, 30% deposits, before the ship to pay the balance end.
2,Delivery time:5-30days
3,Freight are quoted under your requests.
4,Shipping Port< NINGBO, SHANGHAI, China(Mainland).
5,Discounts are offered depend on quantities
Our service:
1. Your inquiry related to our products or prices will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. OEM&ODM, any your customized lightings we can help your to design and put into product.
4. Distributorship is offered for your unique design and some our current models.
5. Protect your sales area, ideas of design and all your private information.
1.Could i put my own logo on it?
> Sure, customers' logo can be made by laser, engraved, embossed, transfer
2.Could i buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition.
3.If i have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.
4.What's your main product?
>Pneumatic Cylinder,Pneumatic Fittings,Pneumatic Cylinder Tube,Pneumatic Filters,Throttle,Check Valve,Pneumatic Solenoid etc.
Thanks for your reading. If any product meets your need, Welcome to send us an email. We are sure your any information can be attention without any delay.
