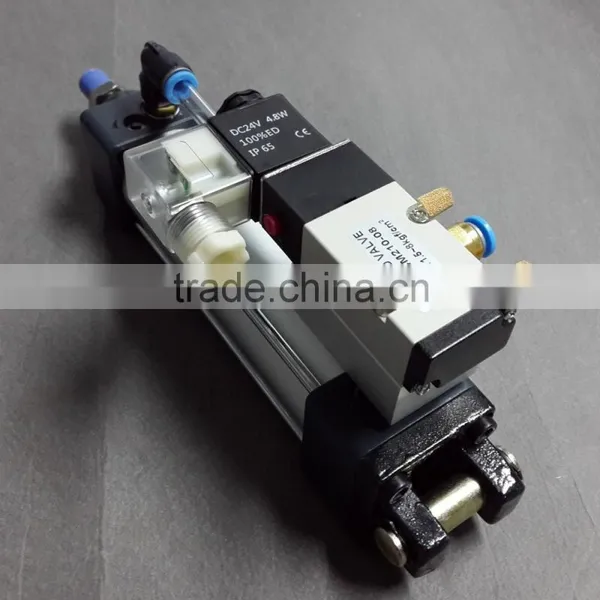

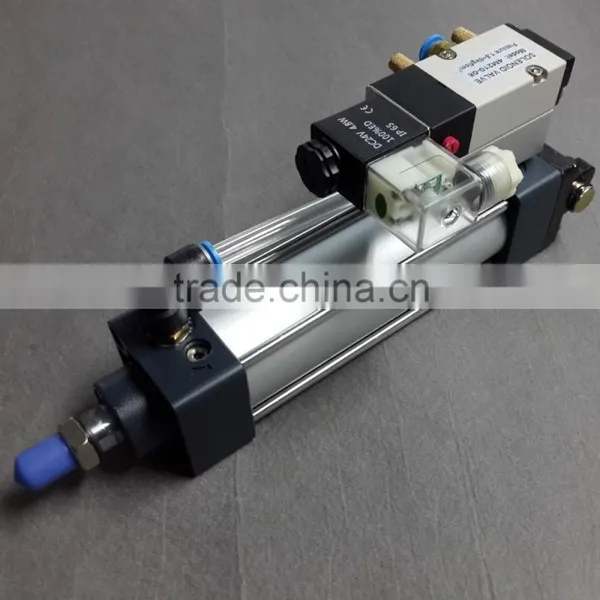

High Quality New SC series pneumatic cylinder with valve

Model

4M210-06

4M220-06

4M210-08

4M220-08

4M310-08

4M320-08

4M310-10

4M320-10

Working medium

Air (filtered by 40 m filtering net)

Action type

Inner Guide type

Position no.

Five-way two-position

Effective sectional area

14mm²(Cv=0.78)

16mm²(Cv=0 .89)

25mm²(Cv=1.4)

30mm²(Cv =1.68)

Pipe dia.

Air inlet=Exhaust=PT1/8

Air inlet=PT1/4 Exhaust=PT1/8

Air inlet=Exhaust=PT1/4

Air inlet=PT3/8 Exhaust=PT1/4

Lubricating

Not need

Applicable pressure

0.15~0.8MPa(21~114Psi)

Max withstand pressure

1.2MPa(170Psi)

Working temperature

-5~60 (23~140 F)

Voltage range

-15%~+10%

Power consumption

AC380V:2.5VA,AC220V:2.0VA,AC110V:2.5VA,AC24V:3.5VA,DC24V:3.0W,DC12V:2.5W

Insulation& Protection Class

IP65

Wiring From

Connector Type

Highest Action Frequency

5Cycle /Sec

Shortest Excitation Time

0.05

Bore size (mm)

32

40

50

63

80

100

125

160

200

250

Fluid

Air

Action

Double acting, Single/Double rod

Minimum operating pressure

0.1 MPa

Maximum operating pressure

1.0 MPa

Proof pressure

1.5 MPa

Ambient and fluid temperature

 -20 to 80°C (No freezing)

Cushion

Adjustable air cushion at both ends

Lubrication

Non-lube

Piston rod dia.

12 mm

16 mm

20 mm

25 mm

32 mm

40 mm

50 mm

Piston rod thread

M10x1.25

M12x1.25

 M16x1.5

M20x1.5

M27x2.0

M32x2.0

M42x2.0

Port size

 1/8

1/4

3/8

1/2

3/4

1
