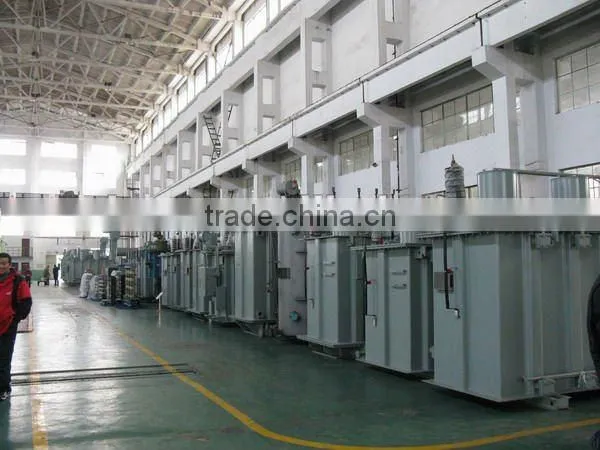

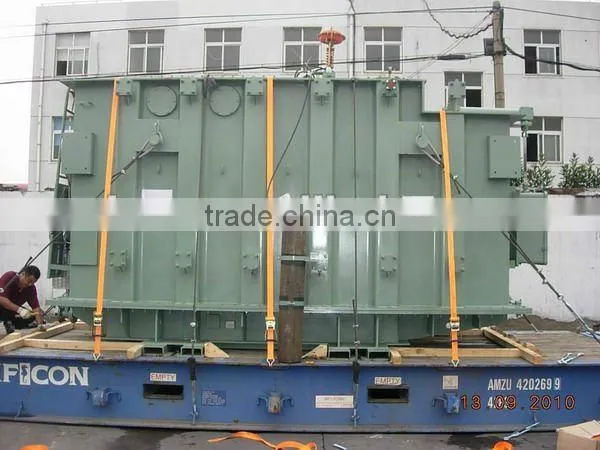

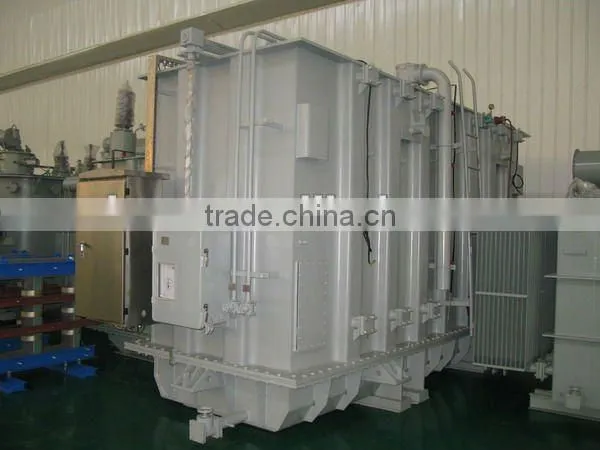

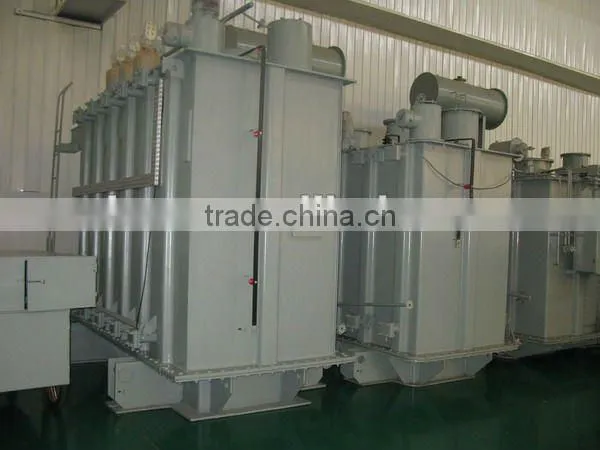

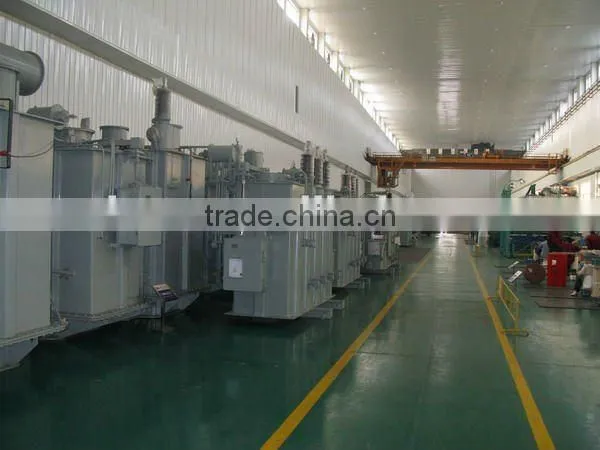

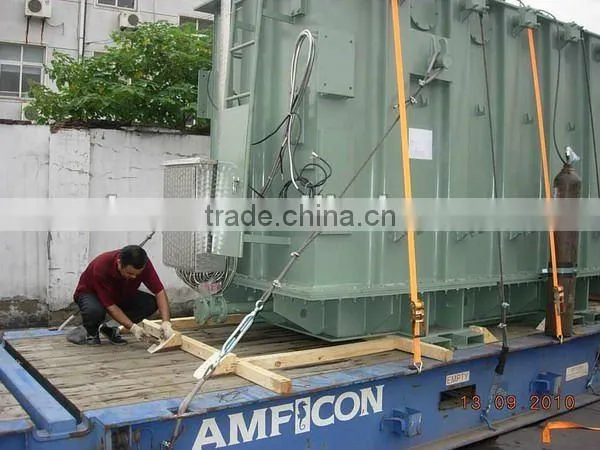

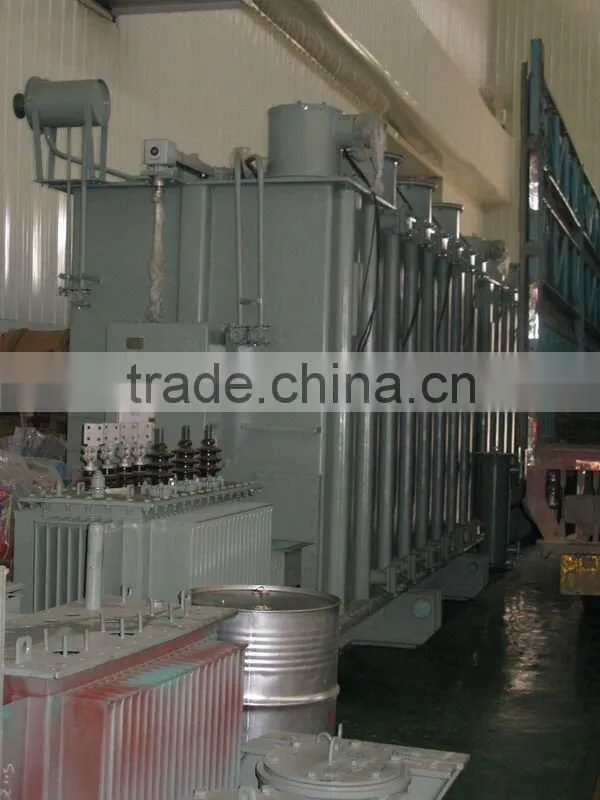

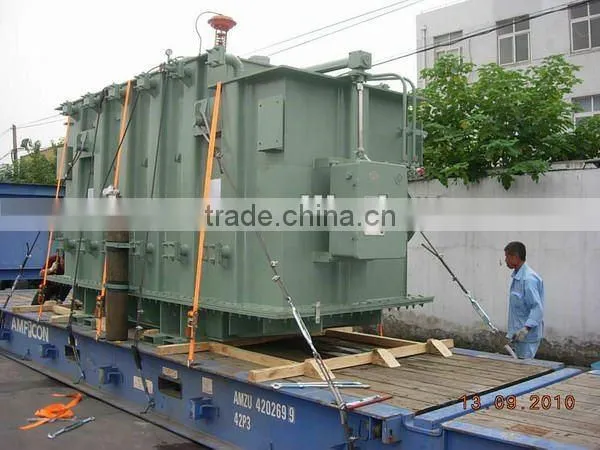

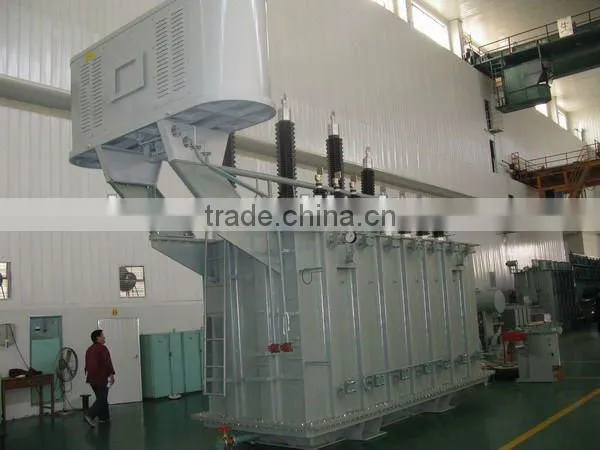

110KV OLTC Power Transformer
US$ 100,000 - 100,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Kumanical
Model Number:
110KV Oil type Power transformer
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
Kumanical
Model Number
110KV Oil type Power transformer
Usage
Power
Phase
Three
Coil Structure
Toroidal
Coil Number
Autotransformer
Specifications
1.Successful experience in power transformer projects worldwide2.OLTC 110kV Oil-Immersed
3.With KEMA
4. ISO9001

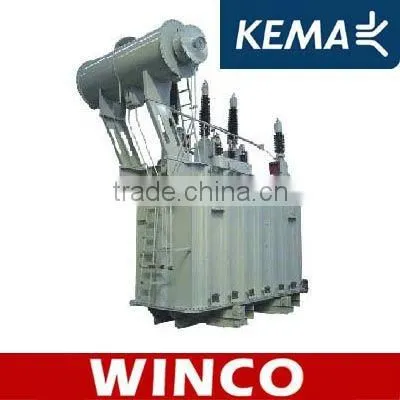

KEMA 110kV Oil-Immersed Power Transformer (Oil Immersed transformer) Oil type power transformer
2.Standards: IEC 60076
3.Ratedcapacity: 6300---63000 KVA
4. Voltage: 110KV
5 .Frequency 50HZ/ 60HZ
6.Product features: highly-reliable transformers manufactured in an ultra modern plant.
(1) well-arranged core construction with top-class oriented silicon steel plating.
(2) windings securely and properly tightened based on accurate computer calculation for very high short-circuit resistance
(3) low noise levels
(4) highly efficient cooling unit
Our liquid cooled power and distribution transformers are available both newly manufactured or re-engineered.
Oil immersed power transformers can operate with higher power ratings and higher voltage applications than their cast resin counter parts. Oil cooled transformers are widely used in applications of more than 20000kVA.
Where fire safety is an issue or an environmentally friendly solution is preferred we can supply midel filled transformers as an alternative.
Range of Products :
Oil immersed power transformers can operate with higher power ratings and higher voltage applications than their cast resin counter parts. Oil cooled transformers are widely used in applications of more than 20000kVA.
Where fire safety is an issue or an environmentally friendly solution is preferred we can supply midel filled transformers as an alternative.
Range of Products :
- Oil cooled Distribution transformer range 31kVA to 3000kVA Voltage class 36kV
- Oil cooled Power transformers range 3000kVA to 100MVA Voltage class 220Kv
- Ground mounted / pad mounted transformers
- Pole mounted transformers
- Unit types transformers
- Rectifier transformers
- Series type reactors
- Other custom design transformers
- Steel welded tank construction
- Skid mounted base
- Tap changer
- Radiators
- Suitable for direct mounting switchgear (LV & MV)
- Oil level indicator
- Rating plate
- Lifting & jacking points
- Liquid filling point & drain valve
- Compliant to ESI 35-1 BS171 (1978) BSEN 60076
- LV & HV steel fabricated cable boxes
- Free breathing or Hermetically sealed
- Oil immersed
- Low flammability synthetic cooling medium Midel (Ester) or Silicon fluid
- Off-load tap changer with selector
- On load tap changer with drive mechanism & remote tap changer control panel
- Cooling types available ONAN ONAF OFAF OFWF
- Special paint treatments
- Direct mounted outdoor low voltage circuit breaker cabinets up to 4000 Amps
- Direct mounted outdoor medium voltage ring main units(Rn2c-T1 or T2) or switches sf6,vacuum or oil insulated
- Oil temperature indicator
- Winding temperature indicator
- Buchholz Relay with conservator
- Pressure relief device (Qualitrol PRV)
- Other protection & indication devices (link to qualitrol site in separate window)
- Marshalling box
