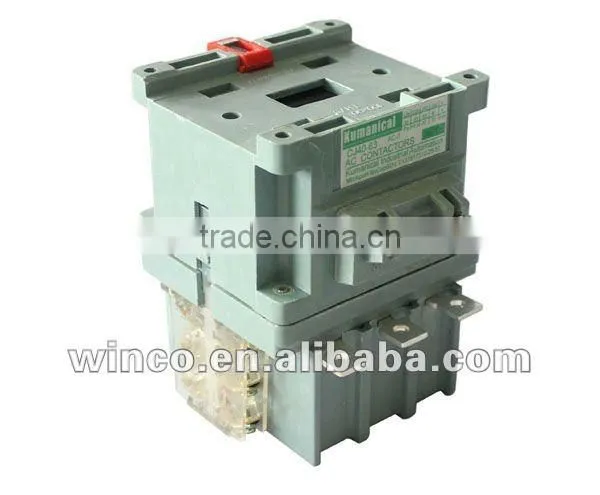

Kumanical CJ40-63 AC Contactor

Kumanical CJ40-63 AC Contactor thumbnail-1
Kumanical CJ40-63 AC Contactor photo-1
US$ 20 - 60 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Kumanical
Model Number:
CJ40-63
Contact Supplier Request Quote Chat Now
Wenzhou Winco Imp&Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Kumanical
Model Number CJ40-63
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage Other, up to 660V
Main Circuit Rating Current Other, up to 1000A

Specifications

1.CJ40 is new type contactor,improve from CJ20
2 Siemens Standard
3 Current upto 1250A
4 Use thermal relay JR20 or JR36

1.Specification

CJ40 is mainly used to connect and turn off electric circuit in electrical powerline of AC 50Hz or 60Hz, rated working voltage upto 660V or 1140V and rated working current upto 1000A.

Type Rated insulating voltage Ui(V) Rated working voltage Us(V) Rated heating current Ith(A) The IeA under the intermittent duty AC-3 Pe(KW) Under the uninterrupted duty
AC-1 AC-2 AC-3 AC-4
CJ40-6.3 690 220 10 10 - 6.3 6.3 1.5 10
380 2.2
660 3.6 3.6 3
CJ40-10 220 10 10 - 10 10 2.2 10
380 4
660 5.2 5.2
CJ40-16 690 220 16 16 - 16 16 45 16
380 7.5
660 13 13 11
CJ40-25 690 220 32 32 - 25 25 5.5 32
380 11
660 14.5 14.5 13



Type Rated insulating voltage Ui(V) Rated working voltage Us(V) Rated heating current Ith(A) The IeA under the intermittent duty AC-3 Pe(KW) Under the uninterrupted duty
AC-1 AC-2 AC-3 AC-4
CJ40-40 690 220 55 55 - 40 40 11 55
380 22
660 25 25
CJ40-63 690 220 80 80 63 63 63 18.5 80
380 30
660 55
CJ40-80 220 80 80 80 22
380 37
660 63 63 63 55
CJ40-100 220 125 125 100 100 100 30 125
380 45
660 80 80 80 75
CJ40-125 220 125 125 125 37
380 55
660 80 80 80 75
CJ40-160 690 220 250 250 160 160 160 45 250
380 75
660 125 125 125 110
CJ40-200 690 220 200 200 200 55
380 90
660 125 125 125 110
CJ40-250 690 220 250 250 250 75
380 132
660 125 125 125 110
CJ40-315 690 220 500 500 315 315 315 90 500
380 160
660 300
CJ40-400 690 220 400 400 400 110
380 220
660 315 315 315 300
CJ40-500 690 220 500 500 500 150
380 280
660 315 315 315 300
CJ40-630 690 220 630 630 630 630 630 220 630
380 335
660 500 500 500 475

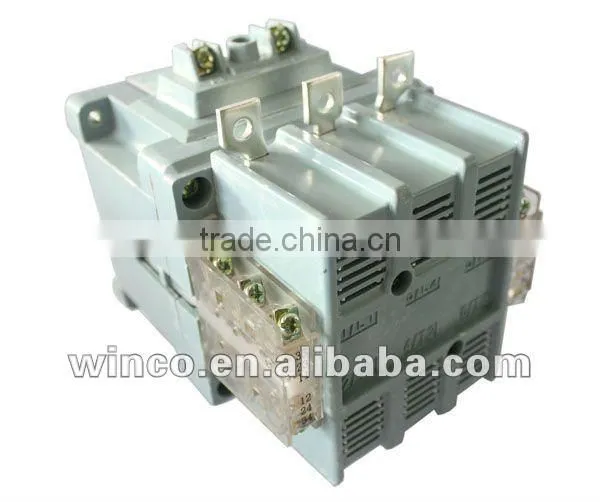

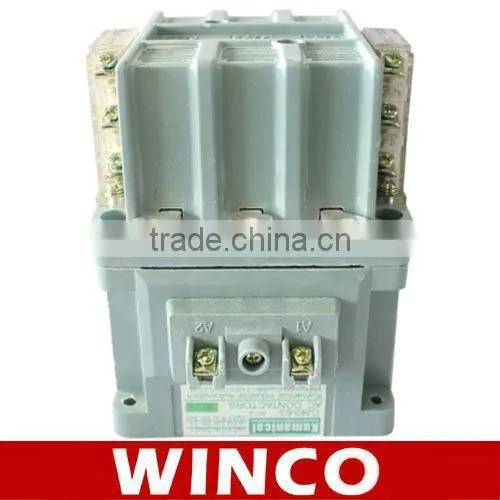

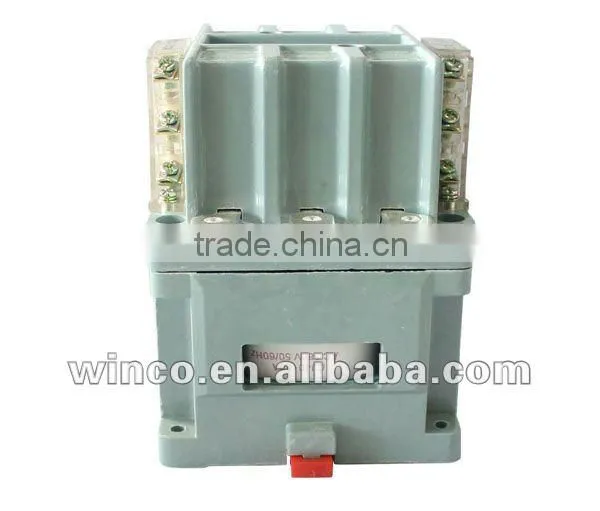

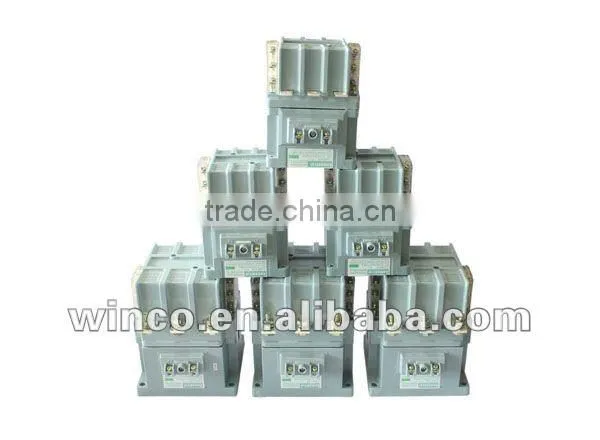

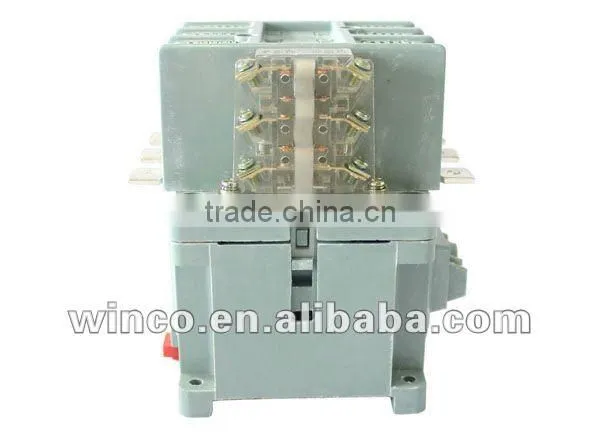

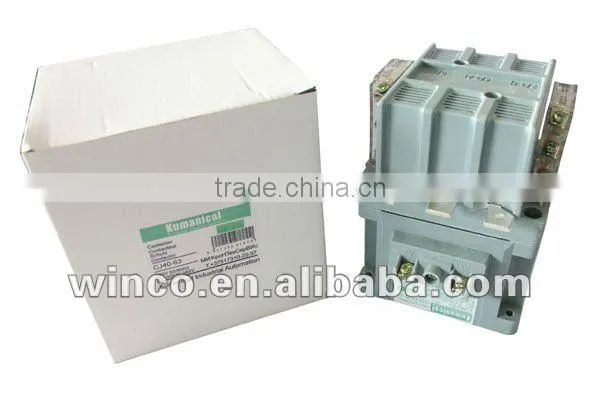

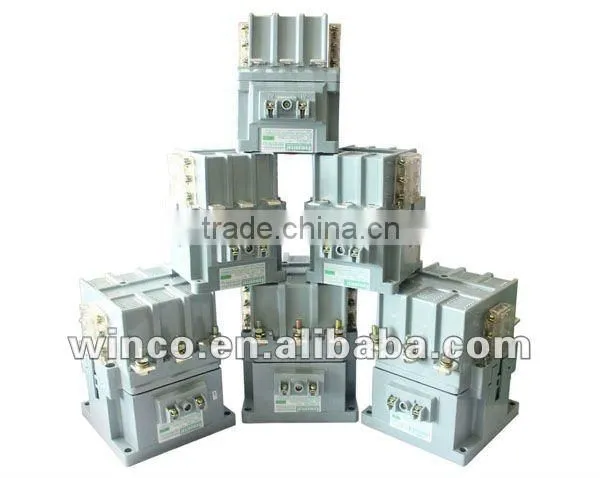

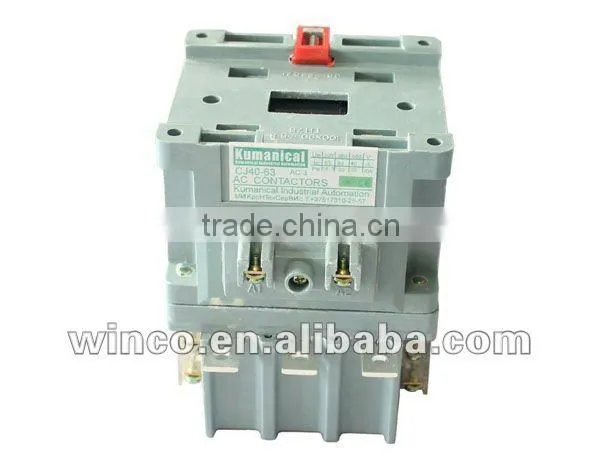

2.Photo

Kumanical CJ40-63 AC ContactorKumanical CJ40-63 AC ContactorKumanical CJ40-63 AC ContactorKumanical CJ40-63 AC ContactorKumanical CJ40-63 AC ContactorKumanical CJ40-63 AC ContactorKumanical CJ40-63 AC ContactorKumanical CJ40-63 AC Contactor
