LC1-D1210 AC Contactor

LC1-D1210 AC Contactor thumbnail-1
LC1-D1210 AC Contactor photo-1
US$ 2.7 - 3 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BIGM
Model Number:
LC1-D1210 BC1-D1210 CJX2-D1210
Contact Supplier Request Quote Chat Now
Wenzhou Winco Imp&Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BIGM
Model Number LC1-D1210 BC1-D1210 CJX2-D1210
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage Other, up to 660V
Main Circuit Rating Current Other, up to 95A

Specifications

1.rated voltage up to 660V
2.rated current up to 95A
3.Telemecanique standard
4.with CE

1.Detailed Product Description

CJX2 LC1-D series AC Contactor, Magnetic Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC947-2, VDE0660 & BS5452.

Type CJX2-D09 CJX2-D12 CJX2-D18 CJX2-D25 CJX2-D32
Rated working
current(A)		 AC3 9 12 18 25 32
AC4 3.5 5 7.7 8.5 12
AC3 capacity of phase 3 squirrel-cage motor AC3(KW) 220/230V 2.2 3 4 5.5 7.5
380/400V 4 5.5 7.5 11 15
415V 4 5.5 9 11 15
440V 4 5.5 9 11 15
500V 5.5 7.5 10 15 18.5
660/690V 5.5 7.5 10 15 18.5
Rated heat current(A) 20 20 32 40 50
Electrical life AC4X10 4 20 20-15 20-7 15-7 15-7
AC3X10 6 2 2 2 2 2
Mechanical 20 20 20 20 20
number of the contact 3P+NO
3P+NC



Dimensions:

LC1-D1210 AC Contactor

LC1-D1210 AC Contactor

LC1-D1210 AC Contactor

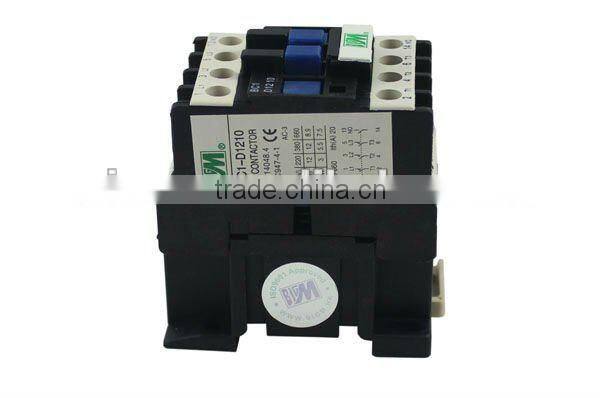

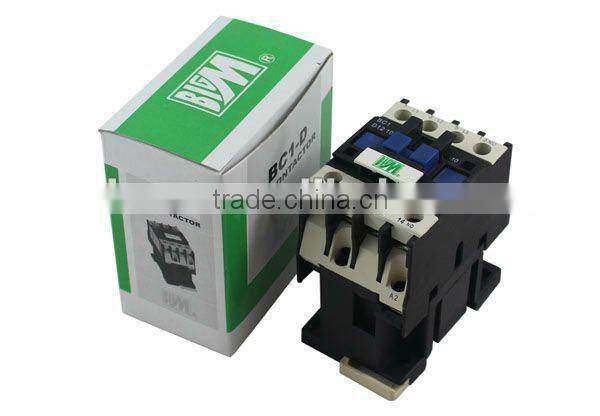

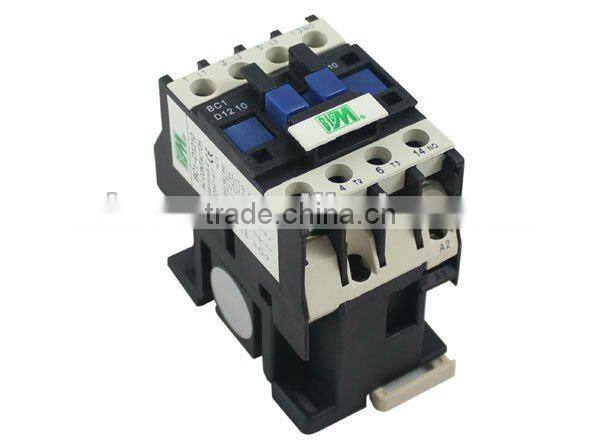

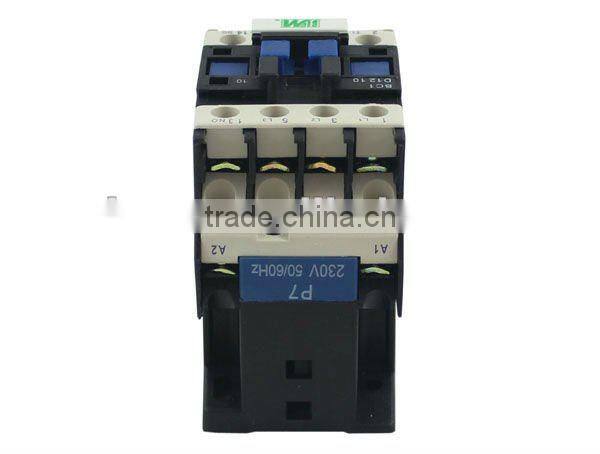

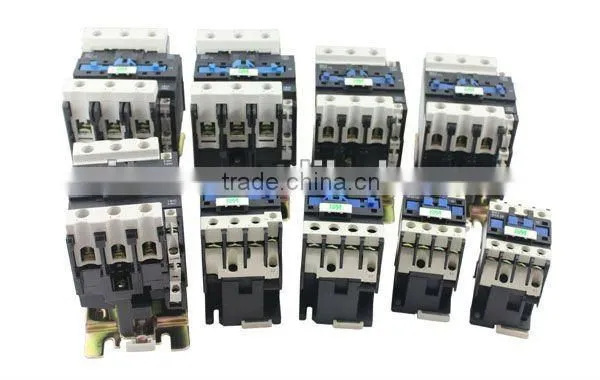

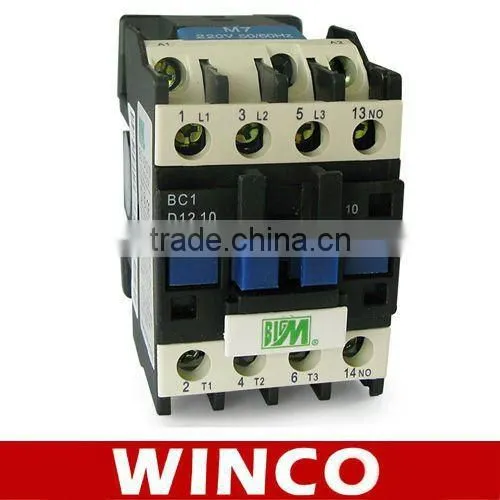

2.Product photo



LC1-D1210 AC ContactorLC1-D1210 AC ContactorLC1-D1210 AC ContactorLC1-D1210 AC ContactorLC1-D1210 AC Contactor

LC1-D1210 AC ContactorLC1-D1210 AC Contactor

LC1-D1210 AC Contactor

LC1-D1210 AC Contactor
