CJX2 LC1-D AC Contactor

CJX2 LC1-D AC Contactor thumbnail-1
CJX2 LC1-D AC Contactor photo-1
US$ 2 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BIGM
Model Number:
CJX2 LC1-D
Contact Supplier Request Quote Chat Now
Wenzhou Winco Imp&Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BIGM
Model Number CJX2 LC1-D
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage Other, up to 660V
Main Circuit Rating Current Other, up to 95A

Specifications

1.rated voltage up to 660V
2.AC 50Hz or 60Hz
3.rated current up to 95A
4.Long life

1.Detailed Product Description

CJX2 LC1-D series AC Contactor, Magnetic Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC947-2, VDE0660 & BS5452.

Type CJX2-D09 CJX2-D12 CJX2-D18 CJX2-D25 CJX2-D32
Rated working
current(A)		 AC3 9 12 18 25 32
AC4 3.5 5 7.7 8.5 12
AC3 capacity of phase 3 squirrel-cage motor AC3(KW) 220/230V 2.2 3 4 5.5 7.5
380/400V 4 5.5 7.5 11 15
415V 4 5.5 9 11 15
440V 4 5.5 9 11 15
500V 5.5 7.5 10 15 18.5
660/690V 5.5 7.5 10 15 18.5
Rated heat current(A) 20 20 32 40 50
Electrical life AC4X10 4 20 20-15 20-7 15-7 15-7
AC3X10 6 2 2 2 2 2
Mechanical 20 20 20 20 20
number of the contact 3P+NO
3P+NC



Dimensions:

CJX2 LC1-D AC Contactor

CJX2 LC1-D AC Contactor

CJX2 LC1-D AC Contactor

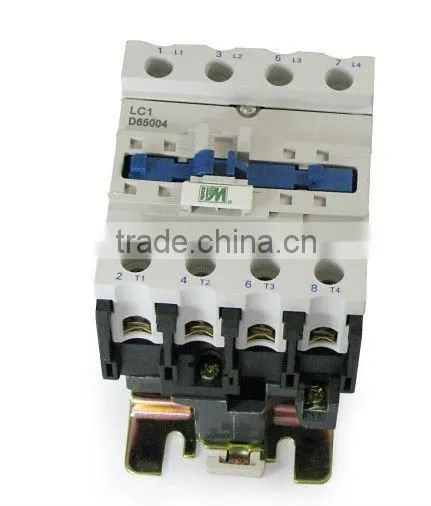

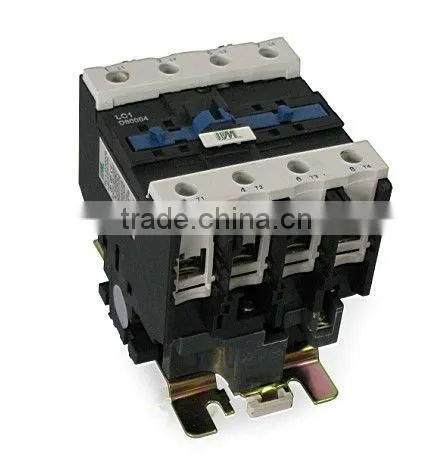

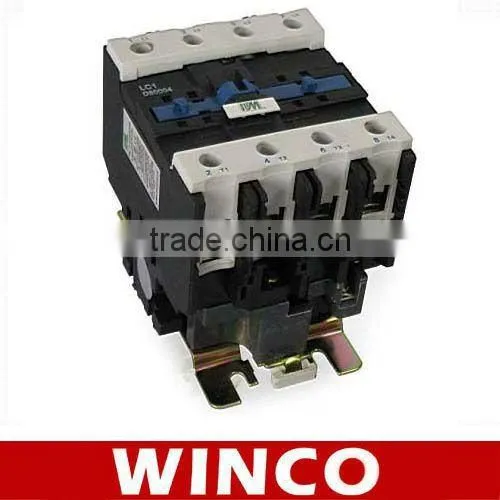

2.Product photo



CJX2 LC1-D AC Contactor

CJX2 LC1-D AC Contactor

CJX2 LC1-D AC ContactorCJX2 LC1-D AC Contactor
