AC Magnetic Contactor CJ20-100

AC Magnetic Contactor CJ20-100 thumbnail-1
AC Magnetic Contactor CJ20-100 photo-1
US$ 2 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BIGM
Model Number:
CJ20-100
Contact Supplier Request Quote Chat Now
Wenzhou Winco Imp&Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BIGM
Model Number CJ20-100
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage Other, up to 660V
Main Circuit Rating Current Other, up to 630A

Specifications

1.Your Comprehensive Source for Electrical Equipments
2.Rated voltage: up to 660V
3.Rated curretn: up to 630A

1.Specification

Type Insulation voltage (V) Rated operating voltageUe (V) Conventional thermal currentIth (A) Rated operating current (AC-3)(A) Rated control power (AC-3)(kw) Rated frequency of operation (AC-3)(?/h) Coordinate and cooperated of SCPD Motion characteristic Operating voltage range of coll(VA/W)
Start Atracting
CJ20-10 690 220 10 10 2.2 1200 NT00-20/660 Atracting voltage range 0.85~1.11Us Release voltage range 0.2~ 0.75Us 65/47.6 8.3/2.5
380 10 4 1200
660 5.2 4 600
CJ20-16 220 16 16 4.5 1200 NT00-32/660 65/47.8 8.5/2.6
380 16 7.5 1200
660 13 11 600
CJ20-25 220 32 25 5.5 1200 NT00-50/660 93.1/60 13.9/41
380 25 11 1200
660 14.5 13 600
CJ20-40 220 55 40 11 1200 NT00-80/660 175/82.3 19/5.7
380 40 22 1200
660 25 22 600
CJ20-63 220 80 63 18 1200 NT1-160/660 Atracting voltage range 0.8~ 1.1Us

Release voltage range 0.2~ 0.7Us		 480/153 57/16.5
380 63 30 1200
660 40 35 600
CJ20-100 220 125 100 28 1200 NT1-250/660 570/175 61/21.5
380 100 50 1200
660 63 50 600
CJ20-160 220 200 160 48 1200 NT2-315/660 Atracting voltage range 0.8~ 1.1Us Release voltage range 0.2~ 0.7Us 855/32 85.5/34
380 160 85 1200
660 100 85 600
CJ20-160/11 1140 1140 200 80 85 300
CJ20-250 690 220 315 250 80 600 NT2-400/660 Atracting voltage range 0.85~ 1.1Us Release voltage range0.2~ 0.75Us 570/175 152/65
380 250 132 600
CJ20-250/06 660 200 190 300
CJ20-400 220 400 400 115 600 NT2-500/660 3578/790 250/118
380 400 200 600
CJ20-400/06 660 250 220 300
CJ20-630 220 630 630 175 600 NT3-630/660 3578/790 250/118
380 630 300 600
CJ20-630/06 660 400 400 350 300
CJ20-630/11 1140 1140 400 400 120

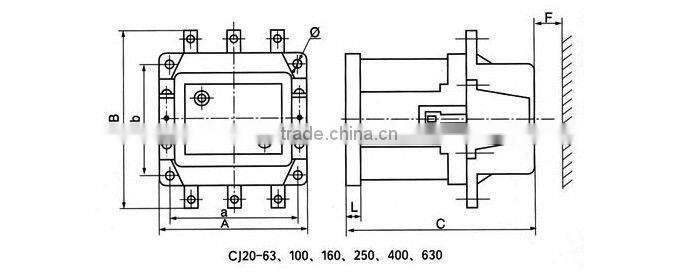

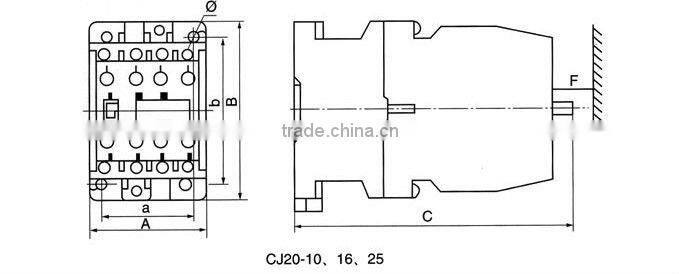

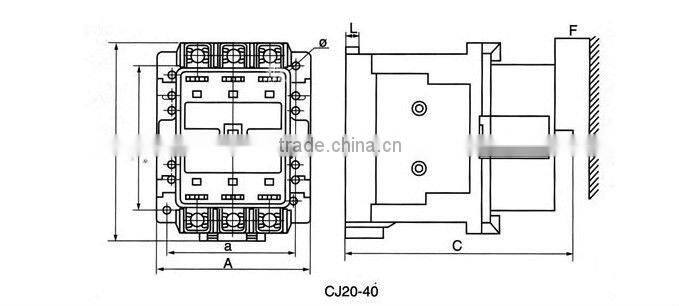

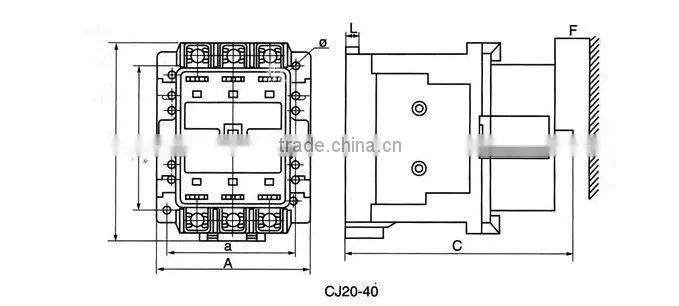

Type A B C a b O F L
CJ20-10 44.5 67.5 107 35 55 5 10 8
CJ20-16 44.5 73 116.5 35 60 5 10 8
CJ20-25 52.5 90.5 122 40 80 5 10 7.5
CJ20-40 87 112.5 125 70 80 5 30 15.5
CJ20-63 116 142 146 100 90 5.8 60 10
CJ20-100 122 147 154 108 92 7 70 15
CJ20-160 146 187 178 130 130 9 80 15
CJ20-160/11 146 197 190 130 130 9 80 15
CJ20-250 190 235 230 160 150 9 100 17
CJ20-250/06 190 235 230 160 150 9 100 17
CJ20-400 245 292 262 210 180 11 110 17
CJ20-400/06 245 292 262 210 180 11 110 17
CJ20-630 245 294 272 210 180 11 120 21
CJ20-630/11 245 294 287 210 180 11 120 21

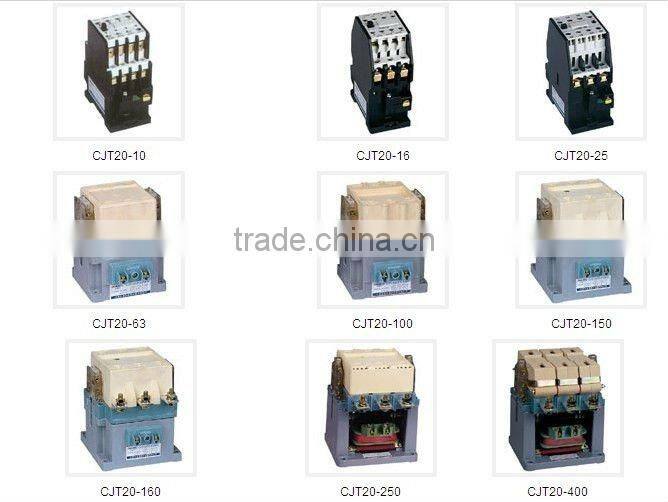

2.Product photo
