CJ19-63 Switching Capacitor Contactor

Wenzhou Winco Imp&Exp Co., Ltd.
CJ19-63 Switching Capacitor Contactor thumbnail-1
CJ19-63 Switching Capacitor Contactor photo-1
US$ 15 - 18 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BIGM
Model Number:
CJ19-63
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BIGM
Model Number CJ19-63
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage Other, AC220V AC380V
Main Circuit Rating Current Other, 95A

Specifications

1.Copper or Silver contact
2.Special for power factor collection
3.AC220V AC380V



1.Specification



 CJ19 series changeover capacitor contactor is mainly applicable to a power line of AC 50Hzor 60Hz, rated working voltage up to 380V. It is used to put a low voltage parallel connectedcapacitor in operation or switch it off in a low voltage reactive power compensation device. Thecontactor is equipped with a surge suppressor, which can effectively reduce the surge currentpassing through the capacitor at weitching on and suppress the over-voltage at switching off.The product is in conformity with the standards IEC947-4-1.








The contactor is suitable for using in the circuits up to voltage 380V AC 50Hz for putting the low voltage reactive power compensation device or cutting low voltage shunted  capacitor. The contactor is supplied with the suppressing in rush current shock to capacitor while closing and suppressing over-voltage while breaking.
HS Code:  85362000
Trademark:  CNC, OEM
Model: CJ19(CJ16)
Standard:   IEC 60947-4, GB14048-4
Specification:
Rated  voltage: 380V
Rated  current:  25,32,43,63A



LC1-D AC contactors, LC1-F AC contactors, LC1-DN AC contactors, LP1-D DC Contactors, CJ16(19) AC contactors, 3TB AC contactor, 3TH AC contactors, DSF(3TF) AC Contactors, ACK Air Conditioning AC Contactors, LA1-D, LA2-D Contact Blocks







ModelCJ19-25CJ19-32CJ19-43CJ19-63CJ19-95
Electrical lfie(×103)100100100100100
Rated current le(380V)A1723294363
Power ofcontrolled capacitor220/230V69101522
380/400V1218203040
Rated insulation voltage Ui(V)500
Rated operational voltage Ue(V)380
Restrained surge capacity20le
Operation rangePick-up:(85%~110%)Us; Drop-out:(20%~75%)Us
Coil power(VA)Start-up70110110200200
Holding811112020
Control capacity of auxiliary contactAC-15 360VA; DC-13 33W
Weight(Kg)0.440.630.641.41.5







Outline and Mounting Dimension

TypeAmaxBmaxCmaxDmaxEFNote
CJ19-2580471247634/3550/60Screw mount/35mm rail mount
CJ19-329058134864048
CJ19-439058136864048
CJ19-6313279150
CJ19-9513587158

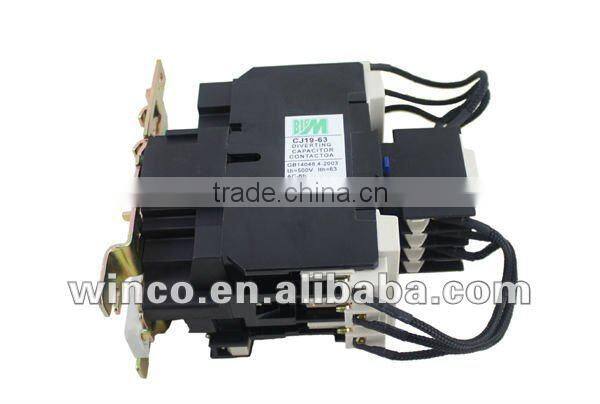

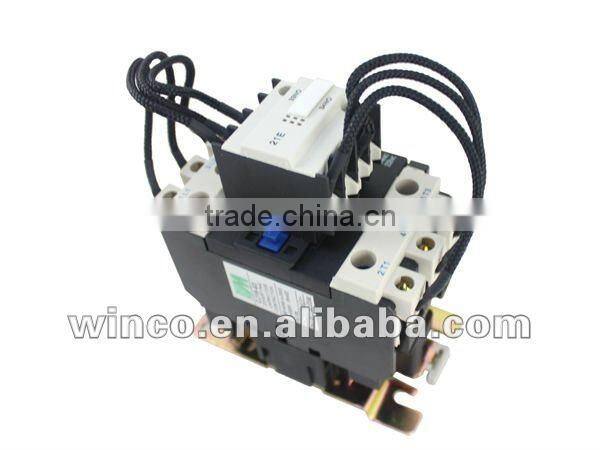

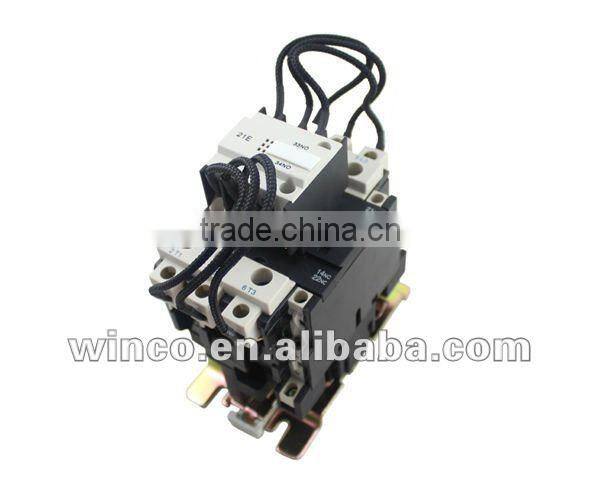

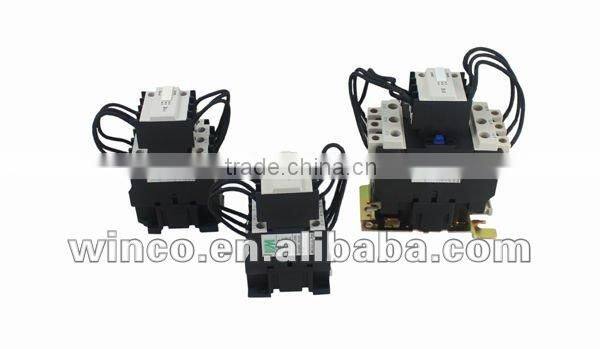

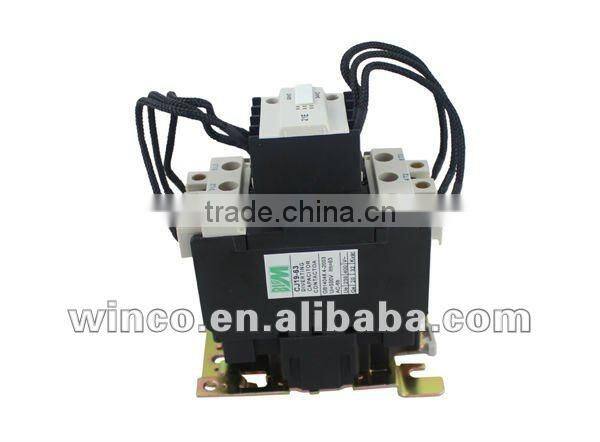

 2.Product photo
