CJX8 Series B370 Electric Magnetic Contactor ac Electrical Contactor

CJX8 Series B370 Electric Magnetic Contactor ac Electrical Contactor thumbnail-1
CJX8 Series B370 Electric Magnetic Contactor ac Electrical Contactor photo-1
US$ 10 - 100 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BIGM
Model Number:
CJX8-370
Contact Supplier Request Quote Chat Now
Wenzhou Winco Imp&Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BIGM
Model Number CJX8-370
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage Other, up to 660V
Main Circuit Rating Current Other, up to 475A

Specifications

1.Your Comprehensive Source for Electrical Equipments
2.Rated voltage:up to 660V
3.Rated current:up to 475A
4.ABB standard

1.Specification

CJX8(B) series AC Contactors are mainly used in 50/60 Hz electrical lines with the rated voltage up to 660V AC and rated current up to 475A, and they are applicable for remote making and breaking of electrical lines or frequently controlling of AC motors, without voltage protection. Usually, it can be combined with T series thermal relay to form electroma-
gneticstarters which have overload and open-phase protection. It complies with IEC 947-4.

Type CJX8-9 CJX8-12 CJX8-16 CJX8-25 CJX8-30 CJX8-37 CJX8-45
The highest controlpower (kw) 220V 2.2 3 4 6.5 9 10 13
380V 4 5.5 7.5 11 15 18.5 22
500V 4 5.5 7.5 11 15 18.5 22
660V 4 5.5 5.5 11 15 18.5 22
Rated heating current Ith (A) 16 20 25 40 45 45 60
Rated working currentAC2/AC3/AC4 380V 8.5 11.5 15.5 22 30 37 44
660V 3.5 4.9 6.7 13 17.5 21 25
Rated holding power of aholding coil/pull-in (VA/W) 9/2.2
60/50		 9/2.2
60/50		 9/2.2
60/50		 10/3
85/65		 10/3
85/65		 22/5
175/25		 22/5
125



Type CJX8-65 CJX8-85 CJX8-105 CJX8-170 CJX8-250 CJX8-370
The highest controlpower (kw) 220V 16 20 28 46 60 32
380V 33 45 55 90 132 200
500V 40 50 7 110 160 250
660V 40 50 75 110 160 250
Rated heating current Ith (A) 80 100 140 230 300 400
Rated working currentAC2/AC3/AC4 380V 45 85 105 170 245 370
660V 3.5 55 82 118 170 268
Rated holding power of aholding coil/pull-in (VA/W) 30/8
270/130		 30/8
270/130		 32/9
510/280		 60/15
790/460		 66/16
1100/600		 100/27
900/350

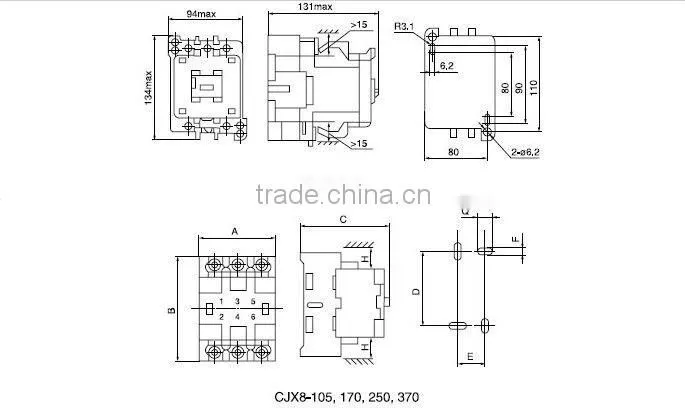

Type A max B max C max D max E F G H
CJX8-105 118 154 137 140±0.35 35±0.15 Φ6.5 Φ6.5 ≥15
CJX8-170 134 165 152 150±0.35 40±0.15 7.5 7.5 ≤15
CJX8-250 167 207 193 190±0.45 50±0.17 5.5 8.5 ≥15
CJX8-370 202 252 221 220±0.52 60±0.20 6.5 8.5 ≤15
