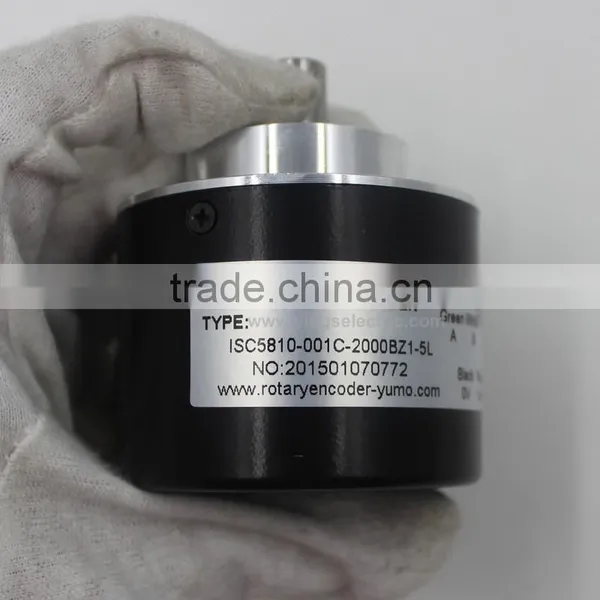

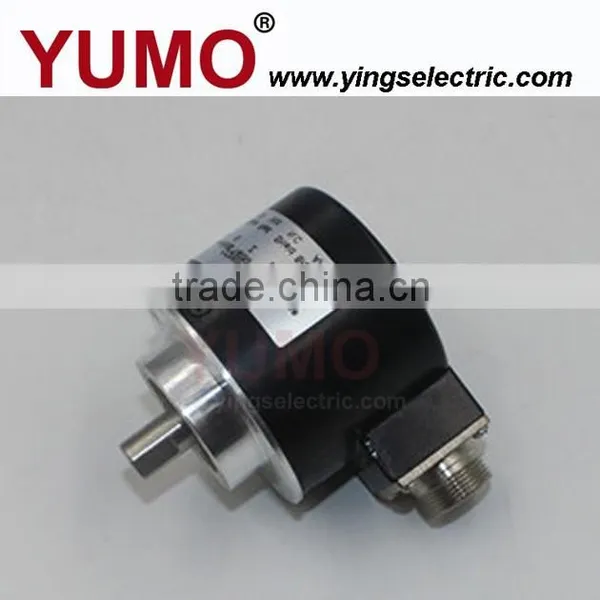

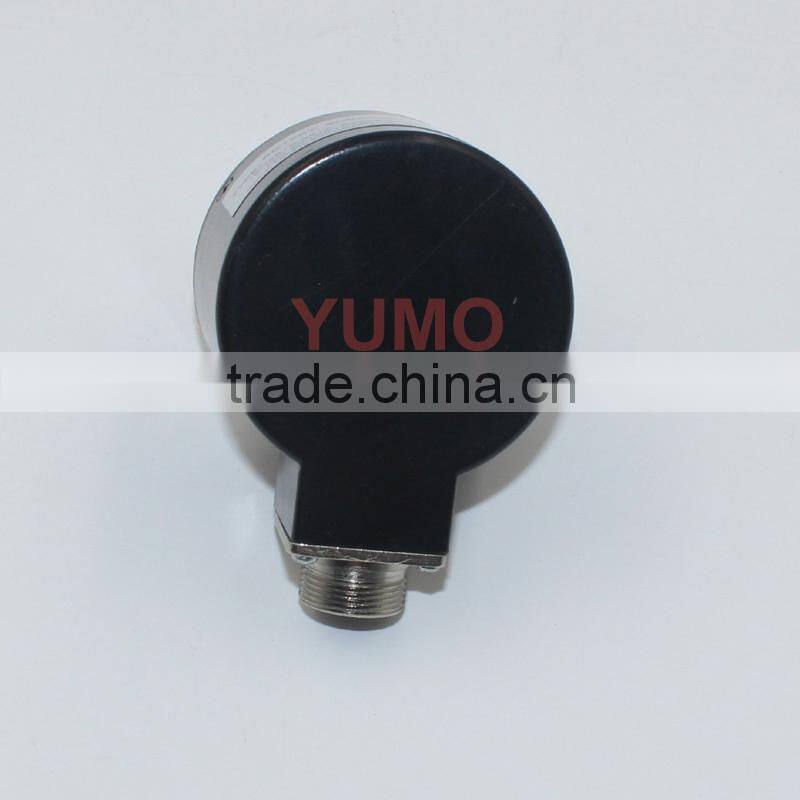

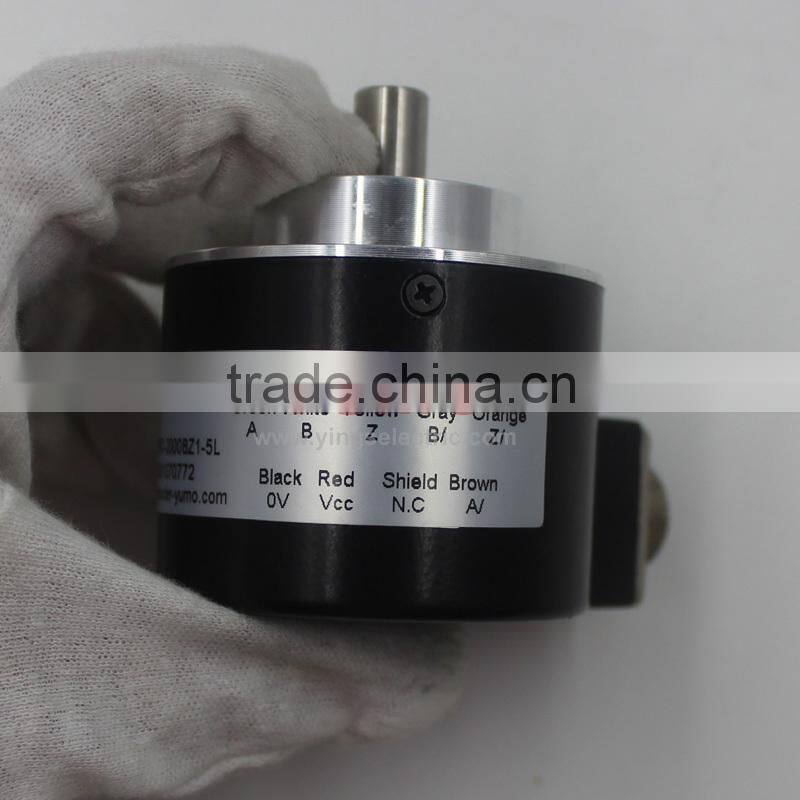

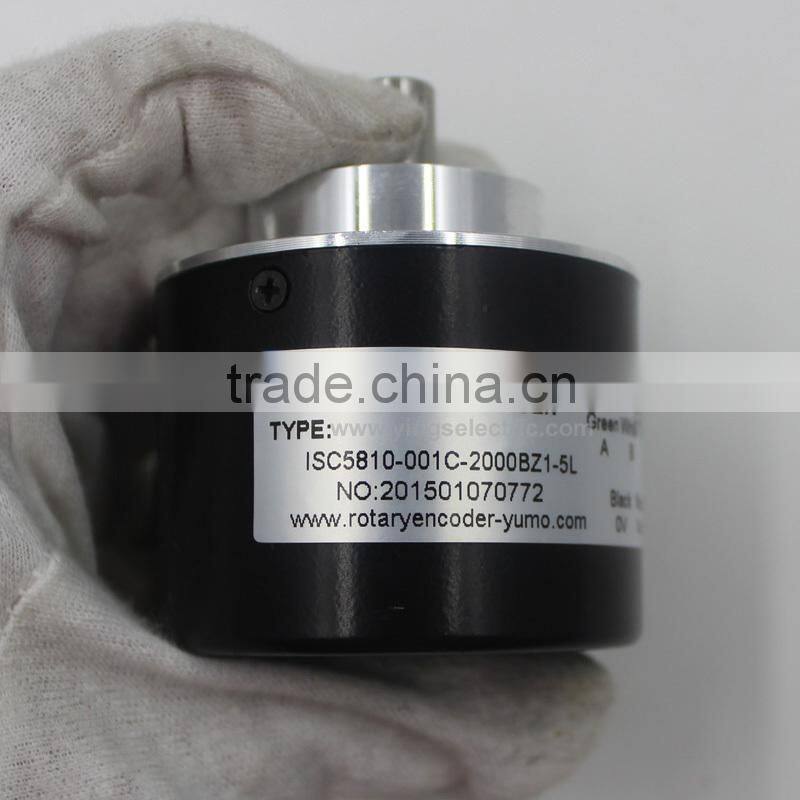

ISC5810 5 24VDC 2000ppr 58 mm 10mm CNC System Machine Solid Shaft Encoder Optical Price Incremental Rotary Encoder

Rotary encoder ISC5810 Shaft Encoder

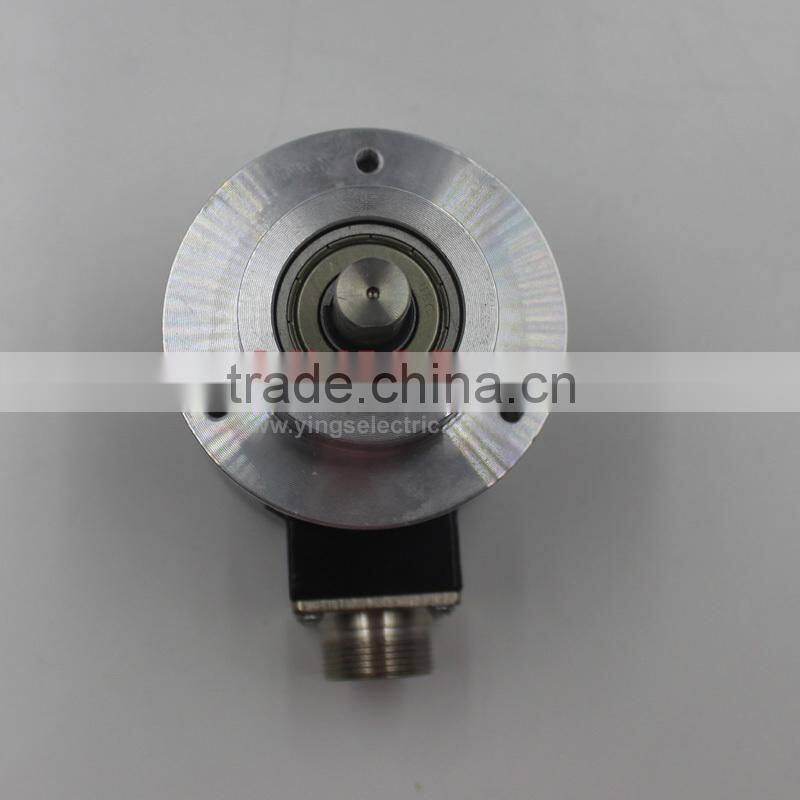

Shaft diameter 10 mm ¦, clamping flange, housing diameter 58 mm ¦.
Made from encoder module, high stability, good anti-interference, long working life.

Connector:

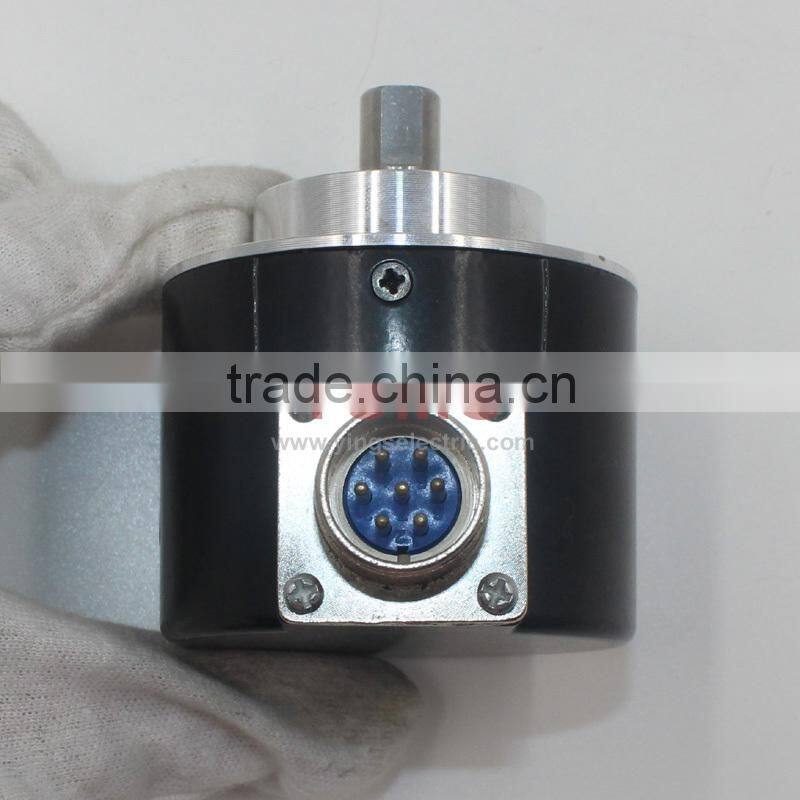

Cable axial, Cable radial, Plug axial, Plug radial.

Applications:
Control of transport vehicles, print machinery,
Fork truck, CNC- tooling- machinery,

1. ELECTRICAL SPECIFICATIONS

A). Output wave: Square wave
B). Output signals: A, B, Z, (Line driver output A, A, B, B, Z, Z phase)
C). Current consumption: d180mA
D). Response Frequency: 0~120KHz
E). Output phase difference: 90*
F). Supply voltage: 5V DC, 5-12V DC, 12-24V DC
G). Signal leve: LVHe85%Vcc, VLd0.3V
H). Number of pulses: 100, 120, 125, 150, 180, 200, 250, 256, 300, 360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1200, 1800, 2000, 2048, 2400, 2500, 3000, 3600(Other number of pulse available on request)
I). Output circuit: Open collector NPN, Push pull, Line driver, Voltage


2. MECHANICAL SPECIFICATIONS
A). Speed without sealing: 6000rmp
B). Rotor moment of inertia: Appraisal 8.5x10-6Kgm2
C). Starting torque without sealing: d6.0x 10-3Nm (+25*C)
D). Maximum load permitted on shaft: Radial: 35N, Axial: 10N
E). Shock resistance: 980m/s2, 6ms, 2 times each on XYZ
F). Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ
G). Working life: MTBFe30000h (+25*C, 2000rpm)
H). Weight: Appraisal 240g (9 pin plug radial)

3. ENVIRONMENTAL SPECIFICATIONS

A). Working humidity: 30~85% (No condensation)
B). Storage temperature: -40*C~100*C
C). Working temperature: -25*C~85*C
D). Protection class: IP54  solid shaft incremental rotary encoder   solid shaft incremental rotary encoder solid shaft incremental rotary encoder
