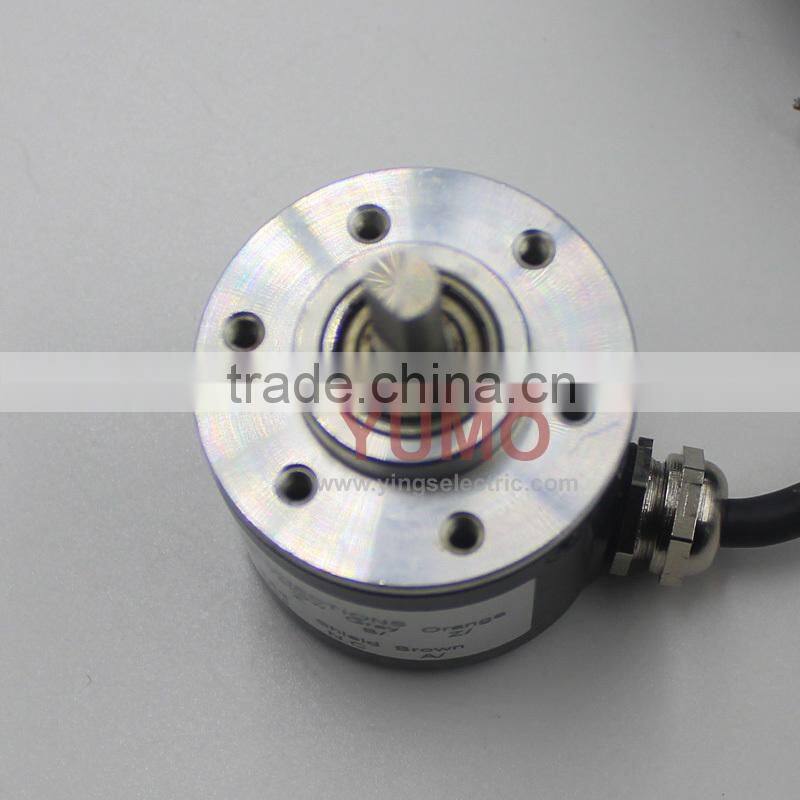

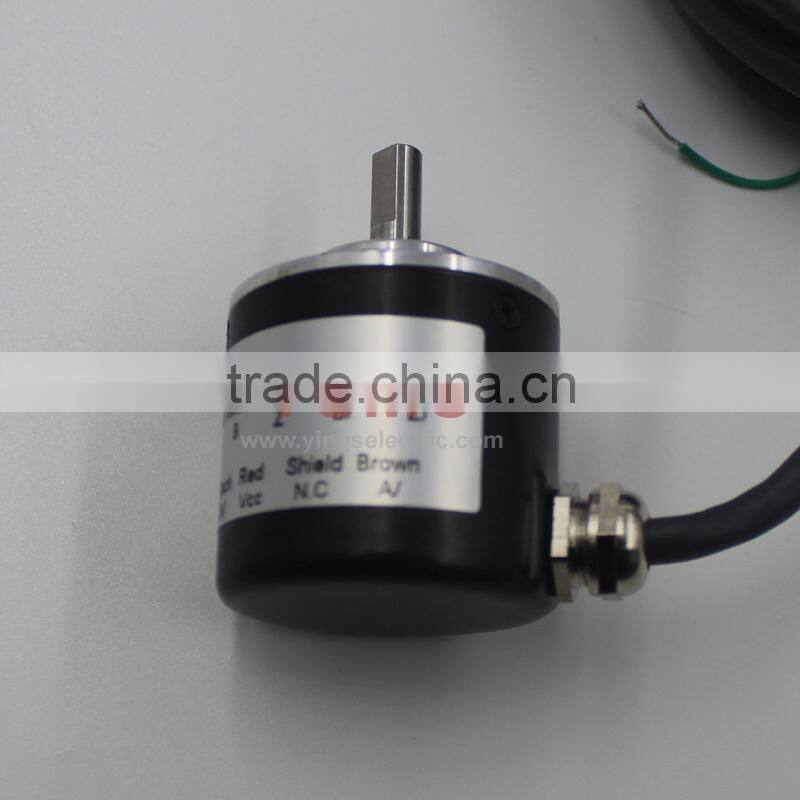

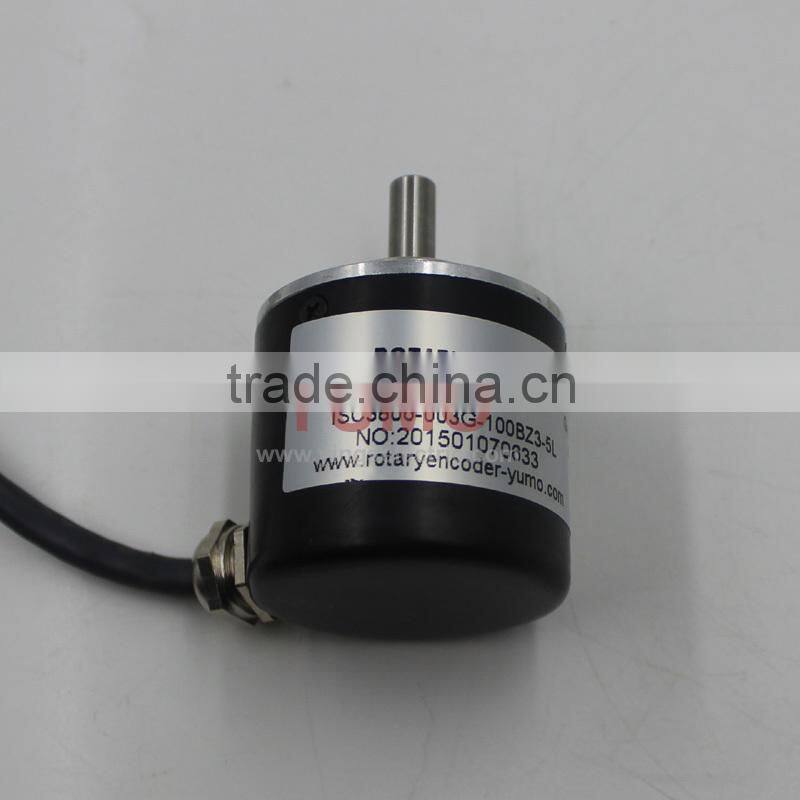

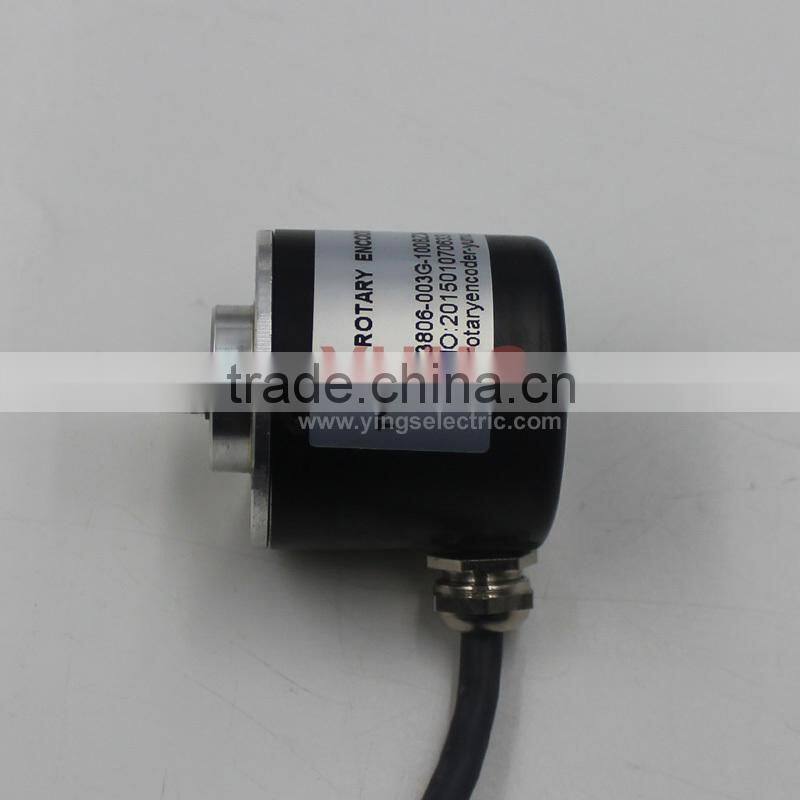

YUMO ISC3806 100PPR 5VDC CNC system Solid shaft encoder optical price incremental rotary encoder
Incremental pulse encoder: SPC
Absolute pulse coder: APC
Both are generally applied to the detection element speed control or position control system.
Incremental encoder and absolute encoder distinction
According to the working principle can be divided into incremental encoder and absolute categories.
Incremental encoder is to displacement into a periodic electrical signal, and then transform the electrical signal into a counting pulse, represents the magnitude of displacement by the number of pulses. Absolute encoders determine each position corresponds to a digital code, so it only shows the value of the starting and ending position measurement, but not to the middle of the process of measurement.
Incremental rotary encoder output pulse is rotated by counting device to know its location, when the encoder does not move or power outage, counting on internal memory to remember the location of the device. Thus, when the power failure, the encoder does not have any movement, when work calls, the encoder output pulse process, it can not have lost the pulse interference, otherwise, it will count the zero offset memory device, and this bias the amount of shift is no way to know in order to know the results only after the production error appears. shaft encoder
| ELECTRICAL SPECIFICATIONS | |
| Output wave | Square wave |
| Output signals | A,B,Z(Line driver output A,A(_),B,B(_),Z,Z(_) phase) |
| Current consumption | ≤120mA |
| Response Frequency | 0~100KHZ |
| Output phase difference | 90º±45º |
| Supply voltage | 5V DC,5-12V DC,12-24V DC |
| Signal level | VH≥85% Vcc, VL.≤0.3V |
| Number of pulses |
10.15.20.30.40.50.60.100.120.125.150.180,200.240.250.256. 300.360.400.480.500.512.600.720.740.800.900.960.1000.1024. 1200.1250.1440.1500.1800.2000.2048.2500(Other number of pulse available on request) |
| Output circuit | Open collector NPN, Push pull Line driver, Voltage |

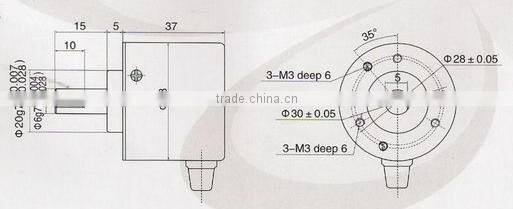

| MECHANICAL SPECIFICATIONS | |
| Speed without sealing | 5000rmp |
| Rotor moment of inertia | Appr.3.5×10-8kgm² |
| Starting torque without sealing | ≤1.5×10-3NM (+25℃) |
| Maximum load permitted on shaft | Radial 20N,Axial 10N |
| Shock resistance | 980M/S²,6ms, 2 times each on XYZ |
| Vibration proof | 50M/S²,10~200Hz,2 hours each on XYZ |
| Working life | MTBF≥25000h(+25℃,2000rpm) |
| Weight | Appr.130g(with 0.5meter cable) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Working humidity | 30~85%(No condensation ) |
| Storage temperature | -40℃~100℃ |
| Working temperature | -25℃~85℃ |
| Protection class | IP54 |
O ISC3806 100PPR 5VDC CNC system Solid shaft encoder optical price incremental rotary encoder YUMO ISC3806 100PPR 5VDC CNC system Solid shaft encoder optical price incremental rotary encoder YUMO ISC3806 100PPR 5VDC CNC system Solid shaft encoder optical price incremental rotary encoder
So lid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotar
rotary encoder | rotary encoder price | incremental type rotary encoder | rotary encoder switch | incremental rotary encoder | usb rotary encoder | e6b2 cwz6c rotary encoder e6b2 | hollow shaft rotary encoder | waterproof rotary encoder switch | wheel rotary encoder | rotary encoder | rotary encoder | absolute rotary encoder | rotary encoder yumo | encoder rotary | rotary optical encoder | japan rotary encoder | mini rotary encoder | magnetic rotary encoder | rotary encoder parts | volume rotary encoder | motorized rotary encoder | optical rotary encoder | optic IHU4808 dc motor mini disks price Optical kit Sewing Machine encoder incremental rotary encoder IHU4808 dc motor mini disks price Optical kit Sewing Machine encoder incremental rotary encoder IHU4808 dc motor mini disks price Optical kit Sewing Machine encoder incremental rotary encoder IHU4808 dc motor mini disks price Optical kit Sewing Machine encoder incremental rotary encoder al rotary encoder disks | 8mm rotary encoder | rotary shaft encoder | encoder rotary encoder | rotary encoder | rotary encoder disc | incremental optical rotary encoders | manual rotary encoder | rotary encoder controler | rotary encoder with switch | rotary encoder circuit | hollow shaft incremental rotary encoder | rotary position encoders | 12mm rotary encoder | incremental rotary encoders | encoder/ rotary encoder | elevator rotary encoder | optical rotary encoders | optical rotary encoder switch | absolute rotary encoders | incremental 10mm rotary encoder | incremental type rotary encoder | incremental rotary encoder | incremental optical rotary encoders | hollow shaft incremental rotary encoder | incremental rotary encoders | incremental 10mm rotary encoder | incremental type rotary encoder | incremental rotary encoder | incremental optical rotary encoders | hollow shaft incremental rotary encoder | incremental rotary encoder
y encoder Solid shaft incremental rotary encoder
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be providedyou upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
