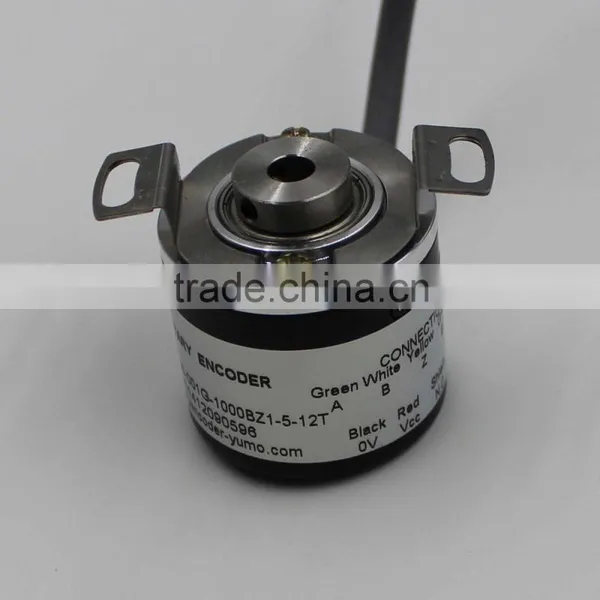

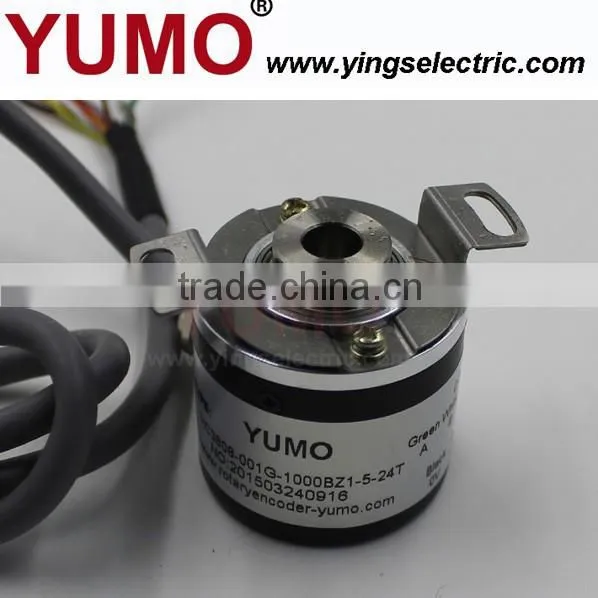

YUMO IHC3806 hollow shaft Rotary encoder
IHC3808 SERIES

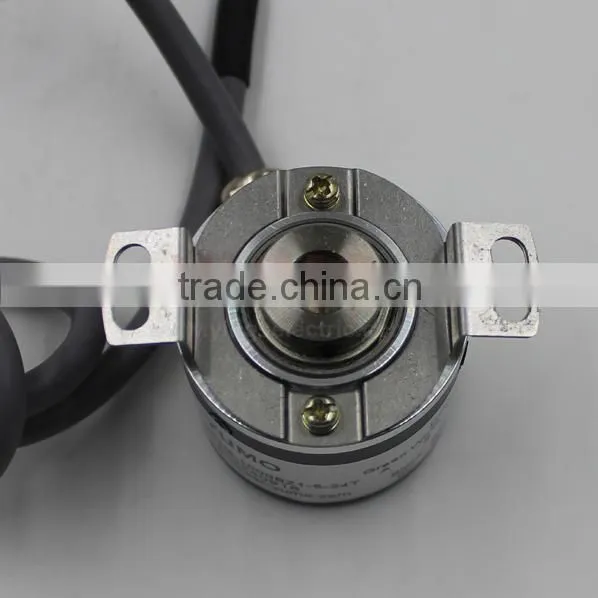

Blind and hollow shaft encoder, axis inside
Diameterφ8mm, φ6 &φ6.35mm(Option),housing
diameterφ38mm.
With flex bracket flange, easy for installing
Small volume, light weight, stable output
Applications:
Computerized embroidery punching machine
textile machines
>Output waveform
90ºOutput phase difference, CW rotation
(CW rotation as seen from fit surface)
Square-wave accuracy:X1+X2=1/2T±1/12T
X3+X4=1/2T±1/12T
Pitch error of period: ±0.01T
Pitch error of phase position : ≤1/18T
Z phase: T z=1/4T(1T,1/2T, 1/4T…)
Period of pulses: T=360 º/N(N:output pulses)
Signal accuracy : Xn=1/4T±1/12T(n=1,2,3,4)
A leads B clockwise when viewing the encoder shaft end,
The position of Z phase against A,B phase is not specified.
>TECHNICAL SPECIFICATIONS
ELECTRICAL SPECIFICATIONS |
||
Output wave |
Square wave |
|
Output signals |
A,B,Z,(Line driver output A,A(_),B,B(_),Z,Z(_) phase) |
|
Current consumption |
≤120mA |
|
Response Frequency |
0~100KHz |
|
Output phase difference |
90º±45º |
|
Supply voltage |
5V DC,7-12VCD,12-24VDC |
|
Signal level |
VH≥85% Vcc, VL.≤0.3V |
|
Number of pulses |
100,120,125,150,180,200,240,250,300,360,400,500,600,720,800,900, 960,1000,1024,1200,1250,1440,1500,1800,2000,2048,2500, (Other number of pulse available on request) |
|
Output circuit |
Open collector NPN, Push pull, Line driver, Voltage |
|
MECHANICAL SPECIFICATIONS |
||
Speed without sealing |
4500rmp |
|
Rotor moment of inertia |
Appr.7.5×10-3kgm² |
|
Starting torque without sealing |
≤5.0×10-2NM (+25℃) |
|
Maximum load permitted on shaft |
Radial 20N Axial 10N |
|
Shock resistance |
980m/s2,6ms,2 times each on XYZ |
|
Vibration proof |
50M/S²,10~200Hz,2 hours each on XYZ |
|
Working life |
MTBF≥25000h(+25℃,2000rpm) |
|
Weight |
Appr.140g(with 1 meter cable) |
|
ENVIRONMENTAL SPECIFICATIONS |
||
Working humidity |
30~85%(No condensation ) |
|
Storage temperature |
-30℃~85℃ |
|
Working temperature |
-10℃~70℃ |
|
Protection class |
IP54 |
|

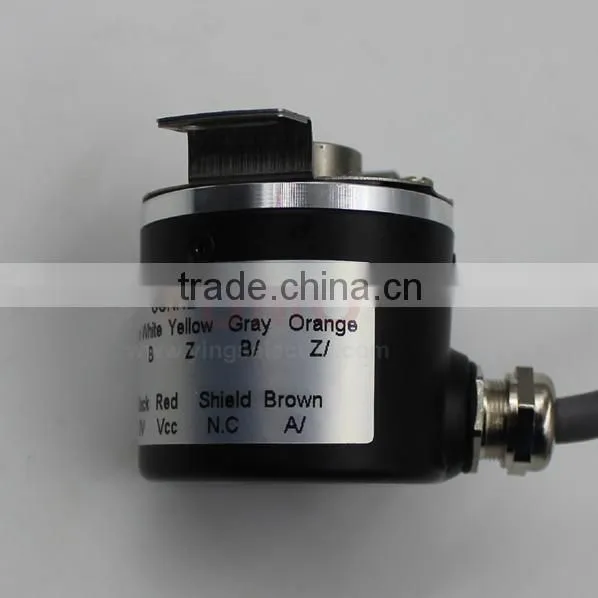

>Terminal assignment
Signal |
+5v |
0V |
SIG A |
SIG A(_), |
SIG B |
SIG B(_) |
SIG Z |
SIG Z(_) |
Shield |
Cable Color |
Red |
Black |
Green |
Brown |
White |
Grey |
Yellow |
Orange |
N.C |
Note :Shield is attached to connector housing. One meter cable lengths(other cable lengths on order) | |||||||||
>Ordering code
IHC3808 -401 g 600 BZ1 - 12-24 C
Series Sequence Connection Number Output Supply Output
Number of Pulses Signals Voltage Circuit
Series :IHC3808, Radial cable: G, Number of pulses :600p/r Output Signals: ABZ,T z=1T, Supply Voltage: 12-24V DC ,Output circuit :Open collector NPN,. Record: IHC3808-401G600BZ1-12-24C
