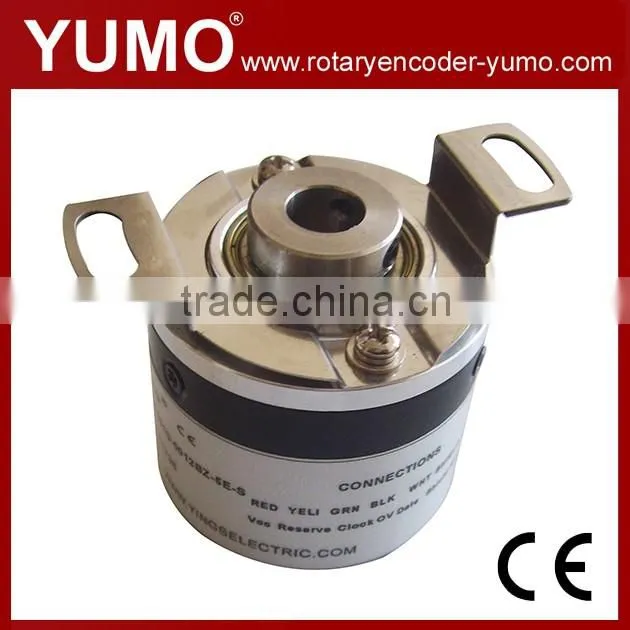

38mm 8mm 10bit 13bit output SSI China Absolute Encoder
LAP zero power fixed and it is unacted on power cutting and system open and closed.
It output value of single function and strong anti-jamming capability.
Magnetoelectric principle, antipollution ability, dust moistureproof sex and strong vibration shock
resistance Precision compact structure, small volume weight and the performance is stable and reliable.
Code specification:
Specification parameter:
| code | Bit | Point for Round | Angle Distinguish | Output Code | Carry Direction | Accuracy |
| AHC3808-S01G0013 | 13 | S192 | 360°/213 | Natural binary | shaft and according to the clock wise(CW) | ±15° |
| AHC3808-S01G0012 | 12 | 4096 | 360°/212 | Natural binary | shaft and according to the clock wise(CW) | ±15° |
| AHC3808-S01G0011 | 11 | 2048 | 360°/211 | Natural binary | shaft and according to the clock wise(CW) | ±15° |
| AHC3808-S01G0010 | 10 | 1024 | 360°/210 | Natural binary | shaft and according to the clock wise(CW) | ±15° |
Electrical parameters
|
Classification project |
power voltage | Outcoming signal | current consumption | output Waveform | Rise/Fall Time | Response Frequency | Insulation Resistance | ||
| High level(v) | Low level(v) | permissible Injection current | <100mA | <US | 0-1m | >100mΩ | |||
| Absolute Code | 5 | ≥2.5 | ≤1 | mA | |||||
CONNECTION TABLE
| Cable color | Red | Bla | Green | White | Yellow | Brown | Grey | orange | Shield |
| Signal(voltage) | Vcc | ov | Clock | Date | Spare | - | - | Spare | shell |
| Signal(Drive TTL) | Vcc | ov | Clock | Date | Spare | - | Spare | shell |
Mechanical characteristics
| Permissible mechanical revolution | Starting torque25° | Axial load | |
| 0-6000r/min | 2×10-3N/m | Axial direction | Radial direction |
| 10N | 20N | ||
Environmental parameter
| Working temperature | Storage temperature | Relative humidity | Shock resistance | Vibration proof |
| -25~100℃ | -30~100℃ | 30~85% | 30m2/s(10-200Hz,x,y,z) | 30m2/s(11ms,x,y,z) |
38mm 8mm 10bit 13bit output SSI China Absolute Encoder 38mm 8mm 10bit 13bit output SSI China Absolute Encoder 38mm 8mm 10bit 13bit output SSI China Absolute Encoder 38mm 8mm 10bit 13bit output SSI China Absolute Encoder 38mm 8mm 10bit 13bit output SSI China Absolute Encoder 38mm 8mm 10bit 13bit output SSI China Absolute Encoder 38mm 8mm 10bit 13
bit output SSI China Absolute Encoder
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
