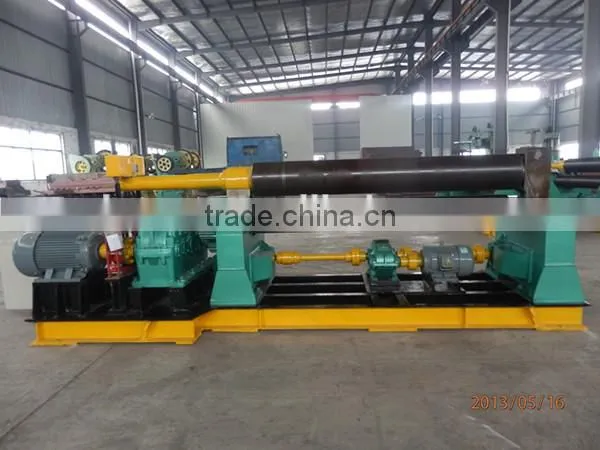

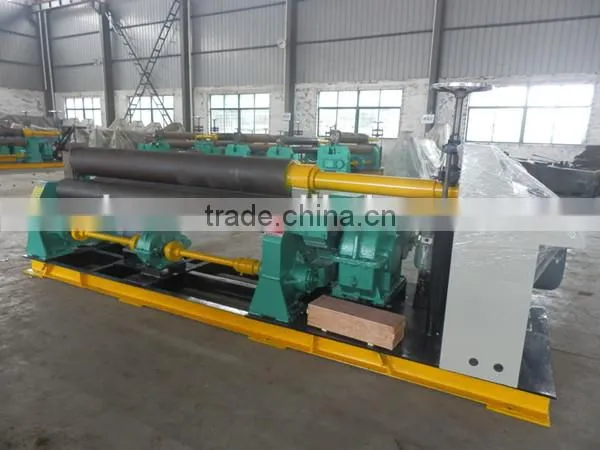

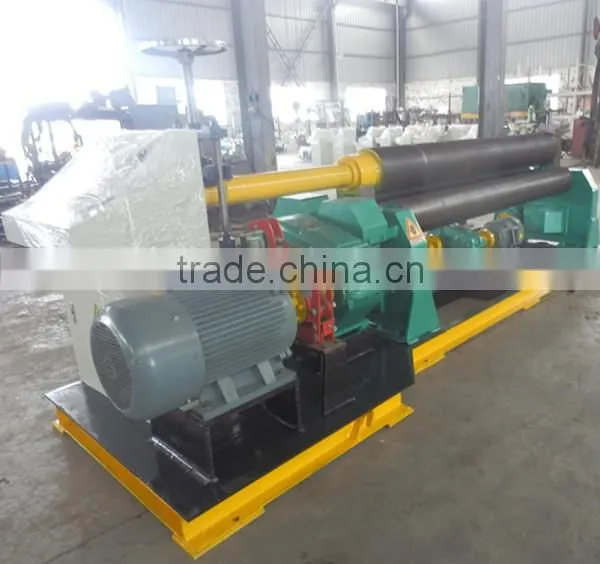

3 roller asymmetrical plate rolling machine W11F-3*1500/roll plate bending machine/plate bending rolling machine
- 80 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- 10mm hot press brake bending machine for brake pad
- Custom bending press brake and shearing machine
- Square steel tube press brake machine for making gutters
- CNC hydraulic press brake steel bar cutting and bending machine
- Crank type bending machine heavy duty press brake 125t 3200
- 6 axes cnc press brake machine hydraulic for making gutters ceramic
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Hvcen | ||
Model Number: | W11F-3*1500 | Machine Type: | Roller-Bending Machine | Raw Material: | Other, welded steel frame |
Material / Metal Processed: | Other, alloy,aluminum,carbon steel,stainless steel,etc | Power: | Hydraulic | Automation: | Automatic |
Extra Services: | End Forming | Certification: | Other, ISO 9001:2000 & CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
3 roller asymmetrical plate rolling machine1.Mechanical driven
2. Plate-rolling form
3.Excellent precision

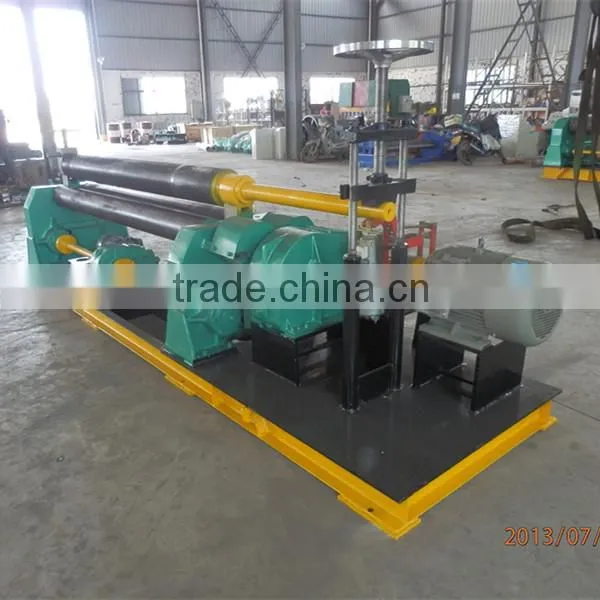

3 roller asymmetrical plate rolling machine
First:Main structure OF Mechanical 3-roller asymmetrical plate rolling machine
1.The upper roller is the main drive. The bottom roller do the elevation movement,through the meshing between the gear of up and bottom roller to clamp the plate tight.The side roller for tilting lifting motion.It’s have double function of pre-bending and circle.Compact structure and easy operation and maintenance.
2.The machine consists of two parts, the operation part and the transmission part which are welded at the whole
bottom pallet. The operation part consists of left and right bearing housing, one upper roller, one lower roller
and one side roller, lifting gears and some accessories. The lower roller is the main one, upper roller can be adjusted at the height. The transmission part consists with the main motor, speed-reducing motor and other accessories.
3.The lower roller is driven by the main motor through the reducer. The main reductor output shaft transmits to the
two lower rollers through a group of gear wheel. Through the meshing with lower roller gear and upper roller gear to drive the upper roller.
4.The down rollers’ elevation come from the handle wheel rotate to drive the cam.
5.The auxiliary engine drive the worm screw, worm wheel,screw nut,screw mandrel to make the side roller do
elevation movement.
6.Drop the roller to the appropriate height when unloading.After the machine stopping,take the sliding set from
upper roller.Turn the upper roller to certain angle,the rolled metal cylinder can get out from one side of the
upper roller.
Second:Technical data
No. | Specification | Value |
1 | Model | W11F-3*1500 |
2 | Max plate thickness(mm) | 3 |
3 | Max plate width(mm) | 1500 |
4 | Yielding limit of sheet metal(mpa) | 245 |
5 | Main full loading diameter of coiled plate(mm) | 240 |
6 | Diameter of top roler(mm) | 120 |
7 | Diameter of bottom roll(mm) | 120 |
8 | Diameter of side roll(mm) | 120 |
9 | Motor power(kw) | 4 |
We can supply various specifications of Press Brake, Plate Shearing Machine & Rolling Machine, with or without CNC, according to customers' requirements.
We are also professional manufacturer of Punching Machine, Hydraulic Press, Iron Worker, Ventilation Equipment, Machine Tool Fittings, Bending Machine Dies, Punch Dies & Cutting tools.
All of our products have passed the ISO 9001 Quality System Certificate and CE Certificate.
If u want to know more information about our products, plz feel free to contact us!
Welcome to visit our company!
