Specifications
estun e10 digital readout hydraulic press brake1 CNC plate bending machine;
2 Economic & practical;
3 Passed ISO & CE.

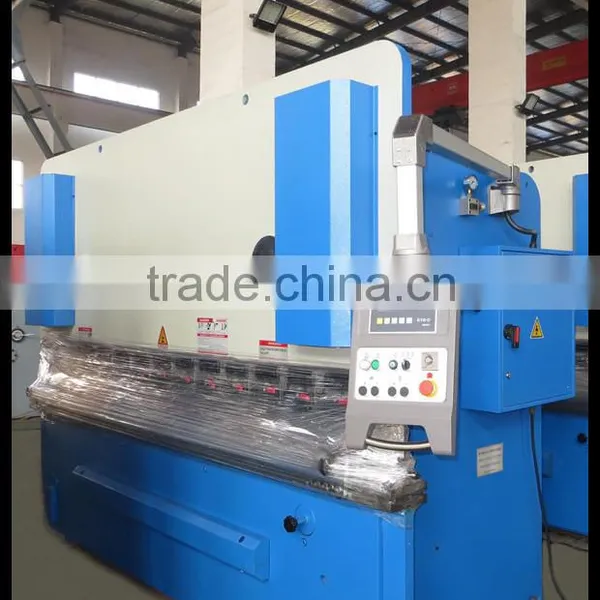

estun e10 digital readout hydraulic press brake
Main performance and characteristics:
1 Monoblock & welded steel frame, with internal stress eliminated by vibration aging technology, typical of excellent rigidity and stability.
2 Equipped with the numeric control system: E200.
3 Ram stroke and back gauge are automatically controlled by computer.

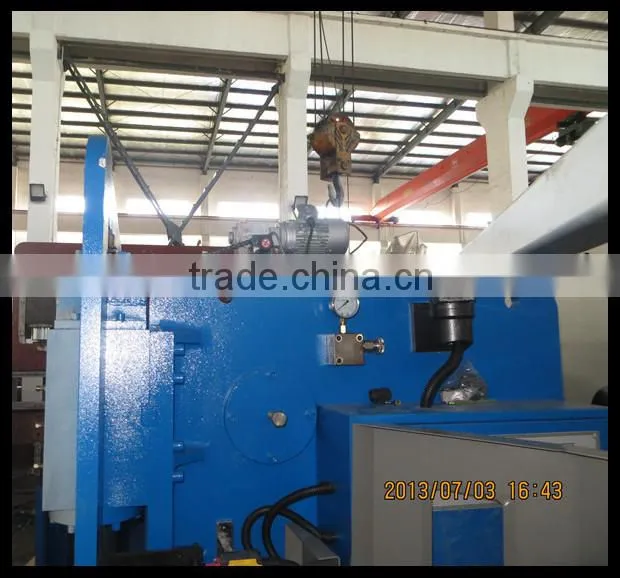

4 Imported integrated hydraulic system from Bosch-Rexroth, Germany, more concise, reliable and easy for maintenance.
5 Imported seal ring from PARKER, USA, ensures good quality and high performance.
6 Mechanical stop and torsion bar to maintain synchronization and high precision.

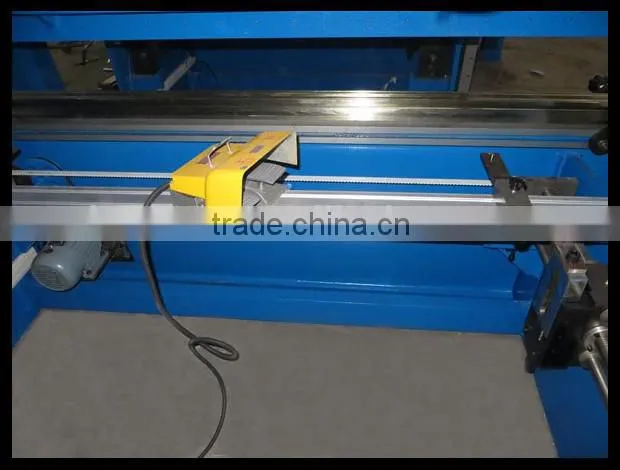

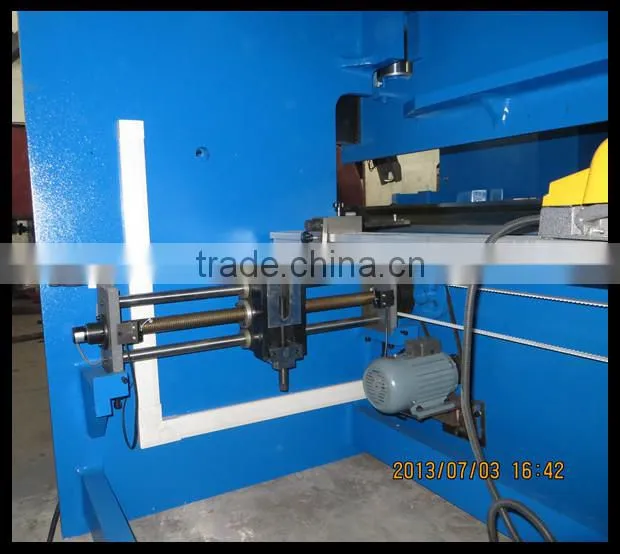

7 Back gauge adopts ball screw and rolling guide, enjoying very high repeat positioning accuracy.
8 Upper die is fitted with deflection compensation device to improve the brake precision.
Main outsourcing parts manufacturers:
1 Hydraulic system: Bosch-Rexroth, Germany.
2 Seal ring: PARKER, USA.

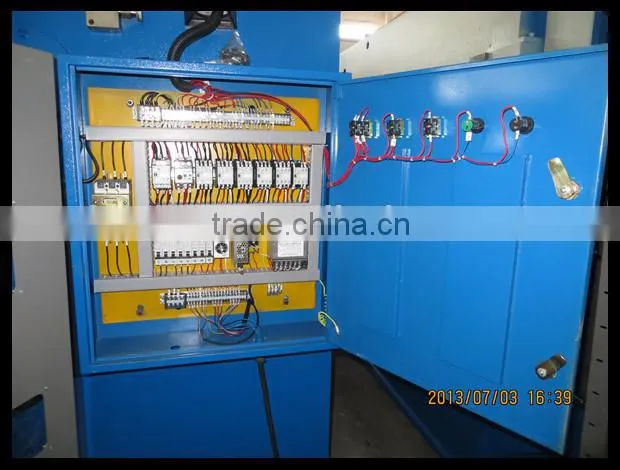

3 Electrical components: Snyder, French.
4 Linear guide, ball screw: Taiwan HIWIN, Taiwan TBI.
5 Numeric control system: Nanjing ESTUN E200.
Optional devices:
1 Optional CNC systems: DA41, DA51, E200,HT072 etc.
2 Fixture device: portable fast clamp.
3 Support devices: removable front support device or lift model back support device.
4 Safety devices: photoelectric protection or laser protection.
Main Technical Parameters:
| Specifications | Technical Parameters | Unit |
| Model | 40t/2500 | set |
| Nominal Force | 400 | kn |
| Worktable Length | 2500 | mm |
| Poles Distance | 1900 | mm |
| Throat Depth | 220 | mm |
| Stroke | 100 | mm |
| Max Open | 320 | mm |
| Power | 5.5 | kw |
| Dimension L*W*H | 2500*1200*1910 | mm |
We can supply various specifications of Press Brake, Plate Shearing Machine & Rolling Machine, with or without CNC, according to customers' requirements.
We are also professional manufacturer of Punching Machine, Hydraulic Press, Iron Worker, Ventilation Equipment, Machine Tool Fittings, Bending Machine Dies, Punch Dies & Cutting tools.
All of our products have passed the ISO 9001 Quality System Certificate and CE Certificate.
If u want to know more information about our products, plz feel free to contact us!
Welcome to visit our company!
