Angle Channel Cutting Machine Q35Y-16Ton/steel Punch
- Shanghai
- T/T D/P D/A Credit Card
You May Like
-
Q35-16 Universal Punch and Shear/the Punching Machine
-
Q35y-30 Hydraulic Punch and Shear/q35y Ironworker
-
Mechanical Ironworker Q35y-25/Q35Y Universal Ironworker
-
Q35y-25 Flat Bar Hydraulic Punching and Shearing Machine/punch and Shear
-
Q35Y-20 Hydraulic Punching and Shearing Machine/ficep Ironworker
-
Iron Worker Punching and Cutting Machine Q35Y-25/metal Worker
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Shanghai, China | |
| Brand Name | hvcen | Model Number | Q35Y-25 | |
| Voltage | 380 | Power(W) | 7.5 | |
| Weight | 4800 | Dimension(L*W*H) | 2355*960*2090 | |
| Certification | CE ISO | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

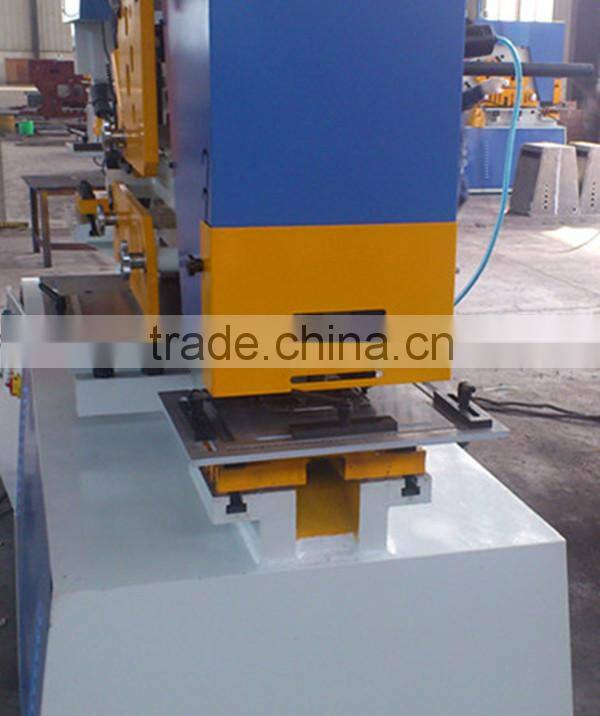

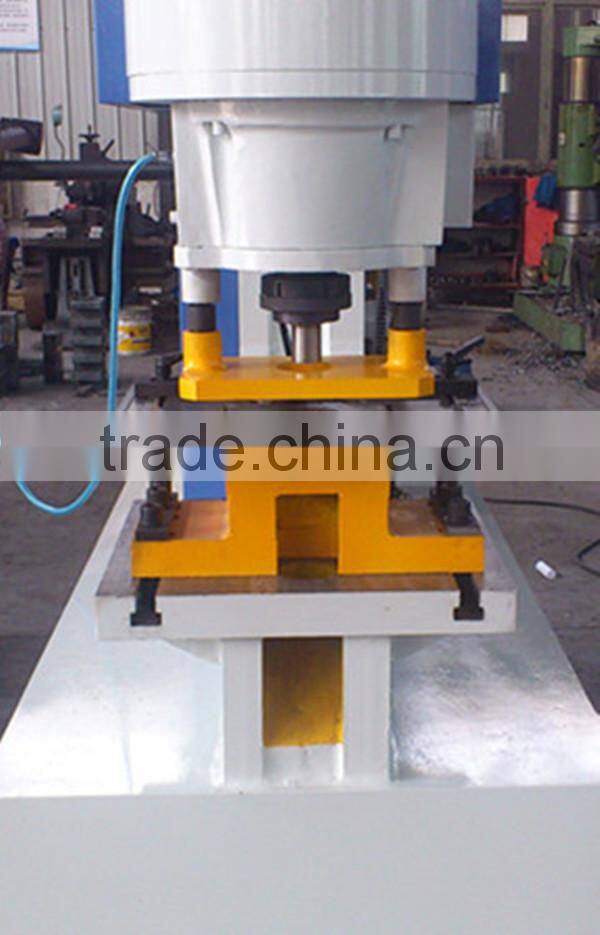

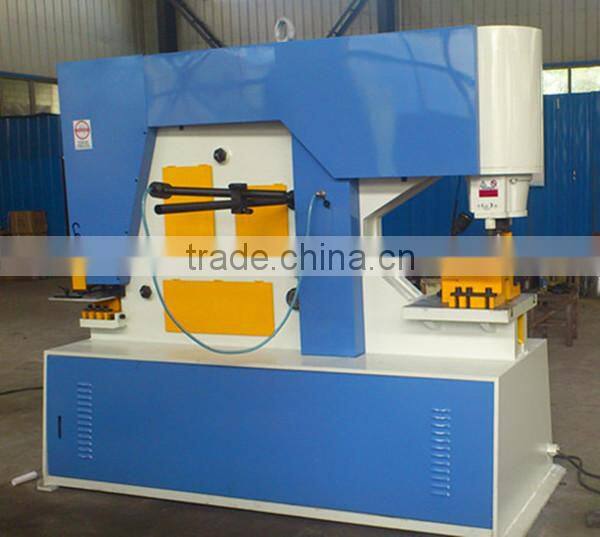

angle channel cutting machine Q35Y-16Ton/steel punch
First:FEATURE OF Q35Y-25 Hydraulic Ironworker Tools
1.Double cylinders hydraulic punch & shear machine
2.Five independent stations for punch, shear, notcher, section cut
3.Large punch table with multi-purpose bolster
4.Removable table block for overhang channel / joist flange punching applications
5.Universal die bolster, easy change punch holder fitted, punch adapters supplied
6.Angle, round & square solid mono block crop station
7.Rear notching station, Low power inching and adjustable stroke at punch station
8.Centralized pressure lubrication system
9.Electric panel with overload protection elements and integrated controls
10.Safety movable foot pedal
11. Function: Punching, Angle Steel Shearing, Flat Bar Shearing, Round/Square Bar Shearing, Notching, V-Notching, C-Channel Shearing, I-beam shearing, T-bar shearing, Press Brake, Angle Bending and Pipe Notching.
Second :Technical data
NO. | ITEMS | PARAMETER | UNITS |
1 | Model | Q35Y-25 | 1 |
2 | punching pressure | 110 | T |
3 | max.cutting thickness of steel plates | 25 | mm |
4 | plate strength | ≤450 | N/mm² |
5 | angle of shear | 8° | ° |
6 | A trip size(TxW) | 25*330 | mm |
7 | Slider trip | 80 | mm |
8 | trip frequency | 8-25 | Times/min |
9 | throat depth | 400 | mm |
10 | punch depth | 25 | mm |
11 | Max.punching diameter | 35 | mm |
12 | Power | 7.5 | KW |
13 | Overall dimension(LxWxH) | 2355*960*2090 | mm |
14 | Weight | 4800 | kg |
