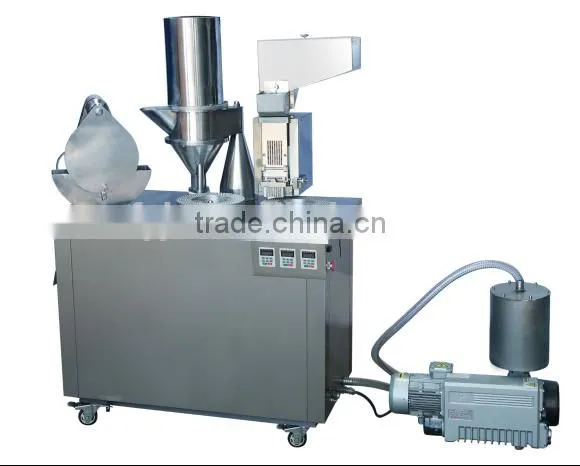

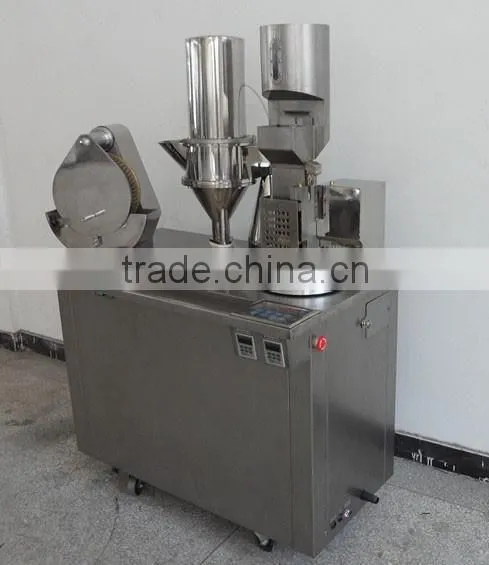

CGN-208D Semi-auto Capsule filler machine/ Capsule machine Encapsulators
Product specify
It is suitable for filling domestic and imported capsules. It is ideal equipment for filling capsule medicine in pharmaceutical industry at present.

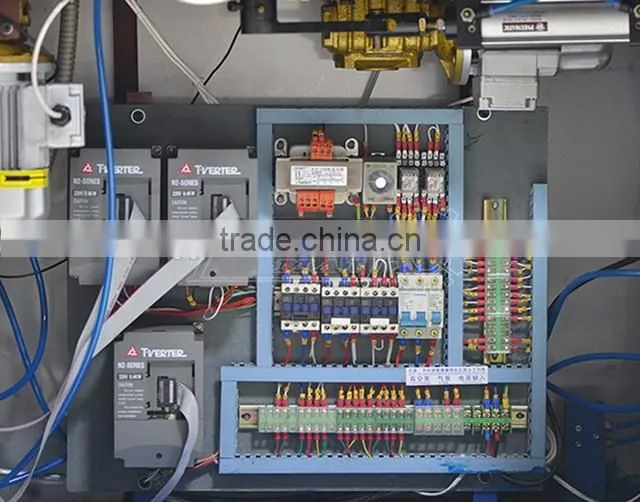

The machine collection machine, electricity, gas as in corporate, have PLC program control, frequency converter, and man-machine interface operation. It can automatically finish the action of location, separation, filling, locking etc for capsule, reduce labor strength, and improve production efficiency, accord with the requirement of medicine sanitary. The parts contacting with the material are made of stainless steel. It is ideal equipment with smartness accuracy for dosage, ease of operation for filling capsule medicine in pharmaceutical industry. It is suitable for filling various domestic or imported capsules.
Main Technical Parameters:
| Capacity(ten thous pics/h) | 1-1.5 |
| Total Power | 380V/50Hz 3.1kw |
| Suit for capsule style | 0# 1# 2# 3# mechanism standard Capsule |
| Air Pressure(Mpa) | 0.4-0.6 |
| air supply |
≥0.1m3/min |
| Vacuum(m3/h) |
40 |
| Overall dimensions(mm) |
1200×720×1600(L×W×H) |
| Weight(kg) | 330 |

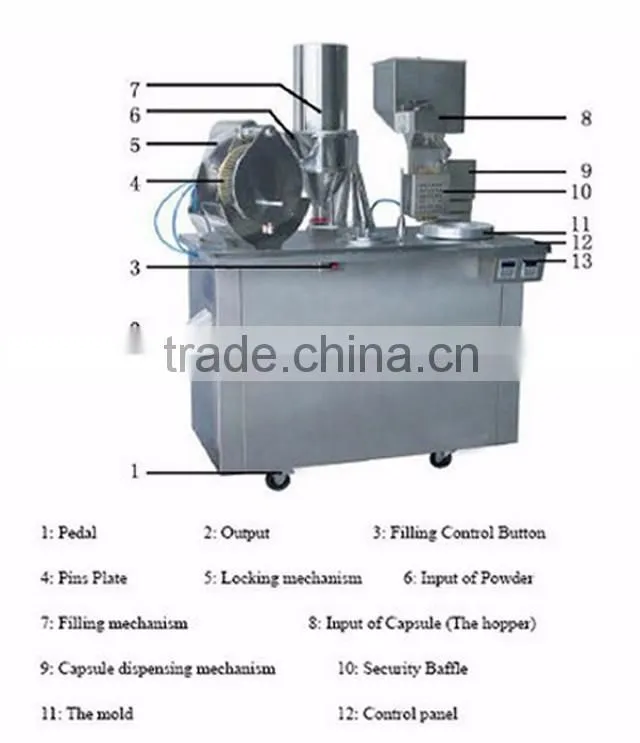

Features on capsule filling machine semi automatic model CGN-208D
There are 3 stations in this semi-auto capsule filling machine
(Model YX-CS800). The first one is orientation of capsule, the second one
is powder filling ,and the last one is capsule closing.

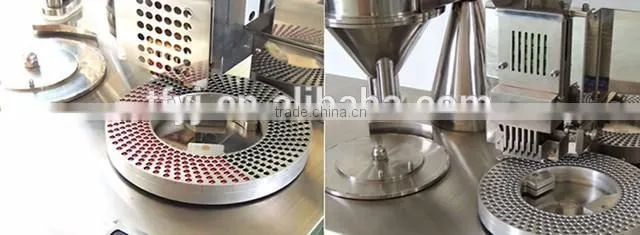

THE FIRST STATION:ORIENTATION OF CAPSULE
The functions of first station include capsule feeding, aligning

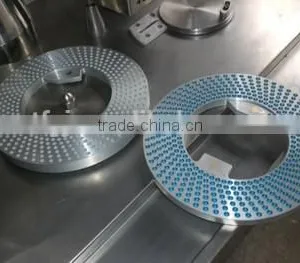

and insertion into bores of holding ring . Also, vacuum is used
for separating capsule cap and body in first station. After
orientation of capsule, capsule cap can stay in upper holding
ring and capsule body can stay in lower holding ring.
THE SECOND STATION:POWDER FILLING
Separate the holding ring,put the lower (body) holding ring on the rotary table, pull the powder hopper over the lower (body) holding ring, then auger inside powder hopper starts to run and fill powder into the capsule body. While I ower holding ring turns one circle, push powder hopper to its original opsition.
THE THIRD STATION:CAPSULE CLOSING
Put upper holding ring and lower holding ring together, then take the holding ring ahead of ejector and aim ejector at the bores of holding ring . Use hydraulic cylinder to push ejector and let it press capsules for closing. Finally push capsules inside the bores of holding ring out, the finished capsules will be output through the pipe .

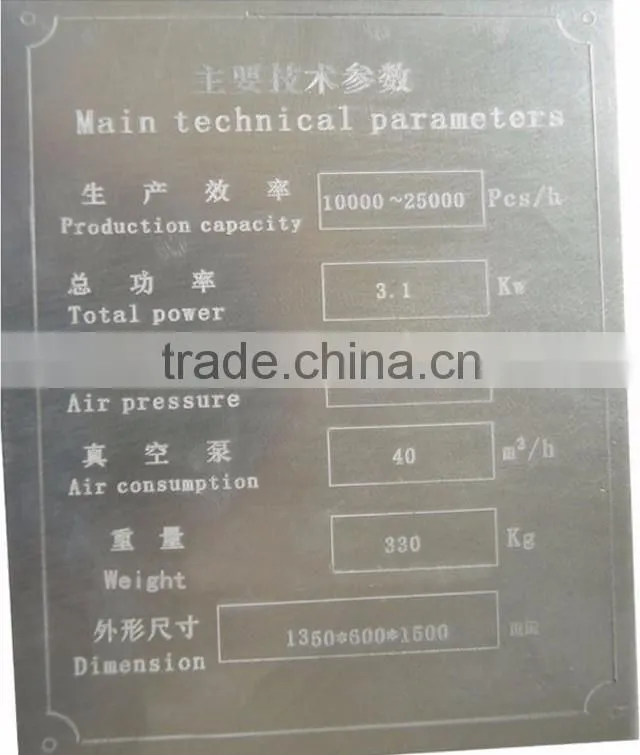

Main technical parameters of semi automatic capsule filling machine:

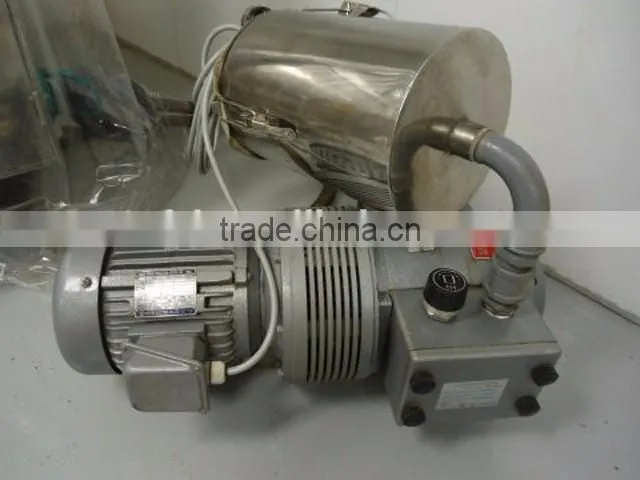

Ancillary equipment:

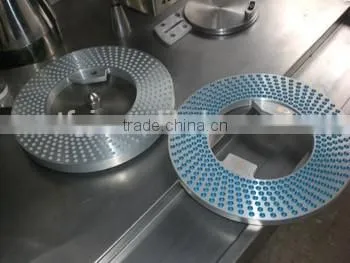

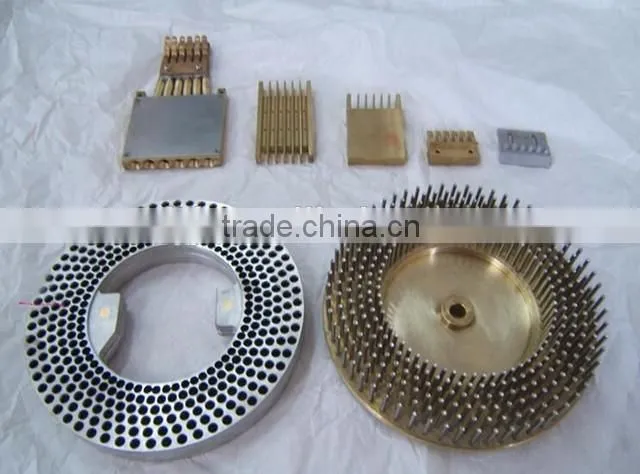

Spare parts for semi automatic pharmaceutical making equipment:
Punctual delivery time:
-We put your order into our tight production schedule, ensure your punctual delivery time.
-Production / inspection report before your order packed.
-Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
-We respect your feed back after receive the goods.
-We provide 12-24 months warranty after goods arrive.
-We promise all spare parts available in lifetime use.
-We large your complain within 48 hours.
Professional sales:
-We value every inquiry sent to us, ensure quick competitive offer.
-We cooperate with customer to bid tenders. Provide all necessary document.
-We are a sales team, with all techinical support from engineer team.
1.Our company’s engineers have long been engaged in pharmaceutical machine designed and developed,more experienced.
2.Over 30 years of rich experience in design and manufacture, can not only ensure best Chinese pharma machine performance,and reliability is optimal in China.
3.Our company can provide 100% custom made service,according to your actual production process ,we can design and transformthe special machines for your use.
4.Our company can provide free sample testing service ,to make sure the machine you buy from us is 100% suitable for your product,
you can send us some samples of your products and we will offer you the free testing of our machines.
