Help Center2BYCF-3 Farm Accurate Planter for Tractor
Related Products
Specifications
Farm accurate Planterplete procedure of furrowing, sowing,soil covering, crackdown etc.at one time
2.Match Power:12-30HP

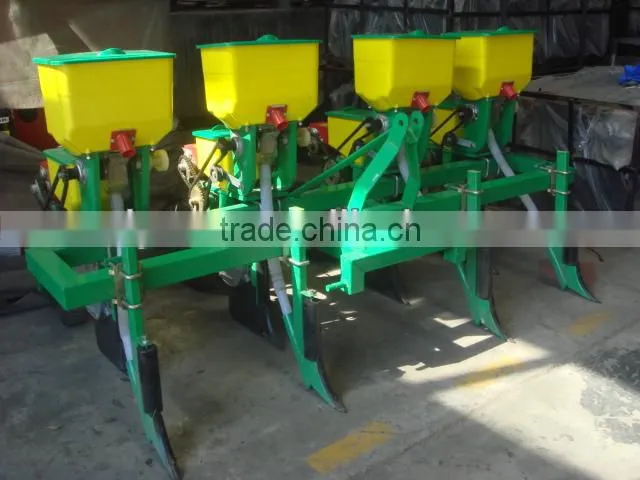

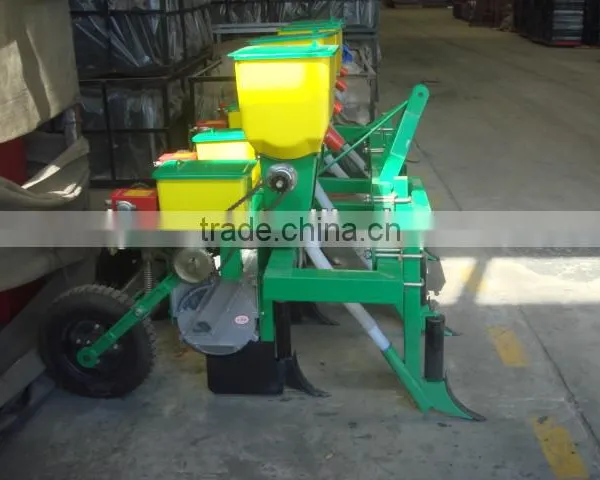

2BYCF-3 Farm Accurate Planter for Tractor
Farm accurate Planter
plete procedure of furrowing, sowing,soil covering, crackdown etc.at one time
2.Match Power:12-30HP
Sowing by weight,no damage to seeds.
High precise seeds clearance,evenly sowing stable,seedssaving and less thin out seeding,
Adopts"zero speed",aqual potential energy,low position feeding sturdy,seeding spacing is even,
Mainly for sowing corn,can also sowing bean,cotton seeds,peanut and sunflower seeds,It has multifunction,the machine can spread the basis fertilizer during planting,and can cormplete the suppression at the same time.

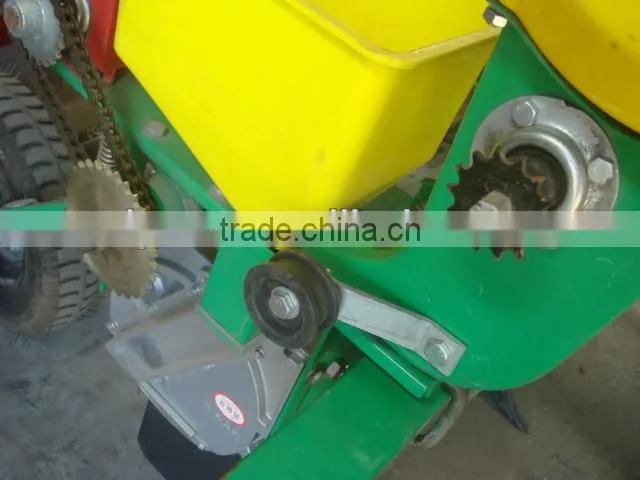

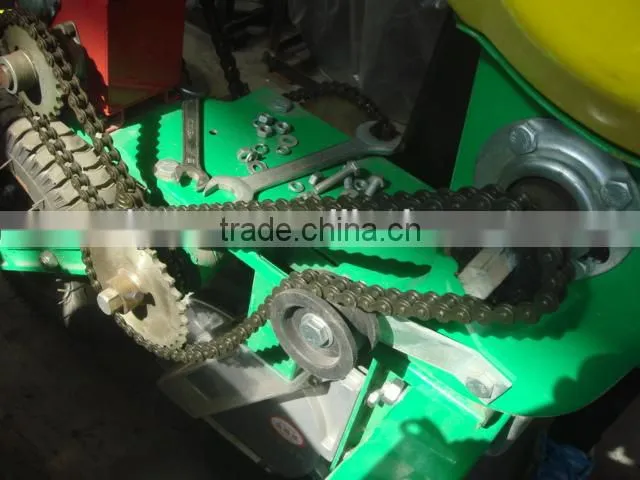

Feed outlet is driven by gear,There is an anti-reverse mechanism at the inside of driving gear to avoid troubles arising from machine reverse turning.
May adjust rows spacing by adjusting different driven gears.
Can pick out the whole disc cover when clear the seeds.
Seeds clearance is convenient and thoroughly
The machine have the characteristics of narrow trencing,moisture,and the fertilizers front ,side spreading is suitable the machine can match a wide range of tractors.
model |
2BYF-3 |
2BYF-4 |
2BYF-5 |
2BYF-6 |
|
Overall dimension (L*W*H)mm |
1230*1500*890 |
1230*1850*890 |
1230*2200*890 |
1230*2750*890 |
|
Weight (kg) |
145 |
190 |
240 |
360 |
|
Row spacing (mm) |
500-640 |
≥540 |
≥487 |
≥487 |
|
Sowing rows |
3 |
4 |
5 |
6 |
|
Furrowing depth (mm) |
60-80 |
||||
Sowing depth of fertilizer (mm) |
30-50 |
||||
Sowing depth of quantity (mm) |
22.50-35.25 |
||||
Seeds quantity(kg/mu) |
112.5 |
||||
Pure working efficiency (mu/hour) |
0.2-0.33 |
0.33-0.4 |
0.4-0.54 |
0.6-0.9 |
|
Required power (hp) |
12-25 |
15-40 |
25-50 |
40-70 |
|
Capacity of fertilizer tank(L) |
9*3 |
9*4 |
9*5 |
9*6 |
|
Capacity of seeds tank (L) |
8*3 |
8*4 |
8*5 |
8*6 |
|
|
Plant spacing (mm) |
18 teeth 36 teeth |
387 |
|||
22 teeth 36teeth |
317 |
||||
22 teeth 28teeth |
246 |
||||
