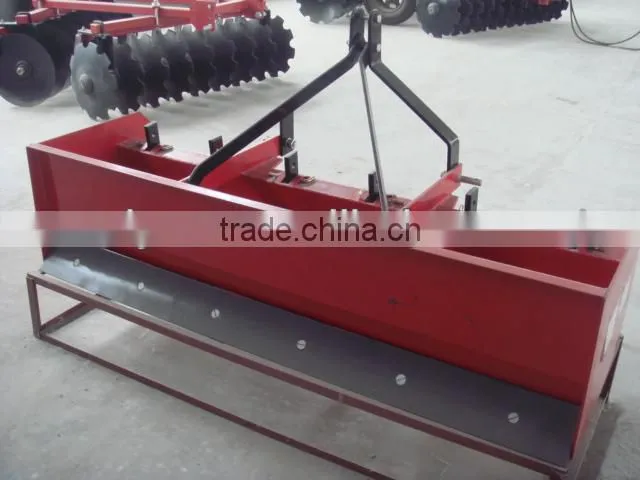

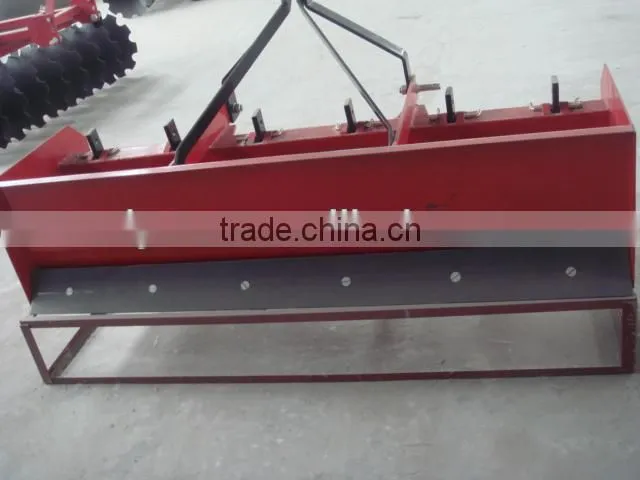

SBX-5 Tractor Mounted Land Scraper

FOB Price

USD $200 - $300 / Set

1 Set(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port Qing Dao CHina
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Other, other farm machine	Power Type:	Diesel
Power(W):	20-25hp	Certification:	CE	Warranty:	1 year
Use:	land grading, dirt work, snow removal, cleaning livestock pens	Brand Name:	YM	Model Number:	SBX
Weight:	135-260kg, 170kg	After-sales Service Provided:	Engineers available to service machinery overseas

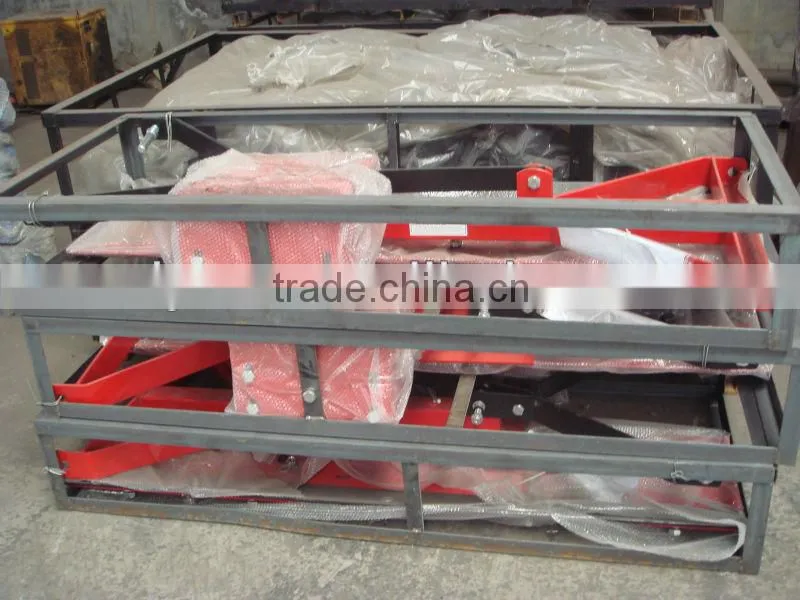

Packaging Details

iron-net box or as customer's require

Product Description

Specifications

Tractor Mounted Land Scraper:
ing width:1500mm;
2.total weight:175kg;
3.matched power:20-25hp

SBX-5 Land Scraper

Tractor Mounted Land Scraper:
ing width:1500mm;
2.total weight:170kg;
3.matched power:20-25hp

SBX series cabinet land scraper : Use scraper fitted between front and back rear wheels to unknit land , can lift, slope , revolve and extend . Flexible and accurate , easy to use .This series are used for construction of roadbed and road surface, side ditch, mixing road mixtures, removing snow, transporting grain materials ,maintenance of dirt roads and gravel roads , etc.

Item	SBX-4	SBX-5	SBX-6	SBX-7	SBX-8
Working width (mm)	1220	1530	1830	2135	2440
Overall depth (mm)	547
Matched power (hp)	18-25	20-25	25-40	30-40	35-45
Weight (kg)	135	170	206	229	258
Linkage	Standard three point mounted

Company Profile

Yucheng Yijia Machinery Co., Ltd.

Yucheng Yijia Machinery Co., Ltd. is a specialized manufacturer dealing with the design and production of agricultural machinery. We are a key company designated by the Ministry of Machinery Industry to produce hitching disc harrow, disc plough, blade, break shovel, and broadcast sowing machinery.

Our products are exported to the United States, Australia, France, Germany, Russia, Pakistan, Thailand, Africa and South America, more than 20 countries and regions. Our factory was promoted to be entitled as National 2nd-class Enterprise and got independent export rights. We own rich technical force, advanced equipment, excellent workshop and high prestige, and can supply consumers with reliable products and satisfactory service.

Our certificates and titles
1. A Class Enterprise of the National
2. Agricultural Machinery Spread License issued by the Ministry of Farming, Animal Husbandry and fishery of China
3. Production License of the whole National.
4. Certificate of Measuring and Inspection by National Technical Control Bureau
