Specifications
offset trailed heavy duty disc harrow for four wheel tractor1:matched power 75-120HP
2:Dia of disc:660mm
3:linkage: trailed

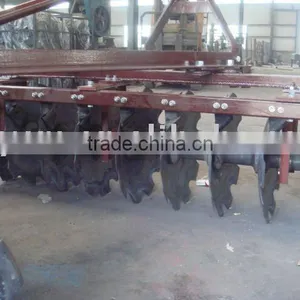

offset trailed heavy duty disc harrow for four wheel tractor
1BZ series hydraulic pressure offset heavy disc harrow has the high working efficiency, strong
capability into the soil , and after plough loosen soil . this series can highly adapt to the sticky heavy
soil , uncultivated field and those plots of many weeds . This harrow is made of square tubes welded
together which ensures simple structure and good rigidity .The harrow is also equipped with
hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the
production efficiency and lifetime of the harrow is dramatically improved .
Specifications
item |
unit |
1BZ-2.0 |
1BZ-2.2 |
1BZ-2.5 |
1BZ-3.0 |
1BZ-3.4 |
working width |
mm |
2000 |
2200 |
2500 |
3000 |
3400 |
Working depth |
mm |
200 |
||||
No. of disc |
pc |
18 |
20 |
24 |
28 |
32 |
Dia. Of disc |
mm |
660 |
||||
weight |
kg |
1150 |
1250 |
1350 |
1500 |
1650 |
linkage |
|
Trailed |
||||
matched power |
hp |
75-80 |
80-100 |
90-100 |
100-120 |
|
