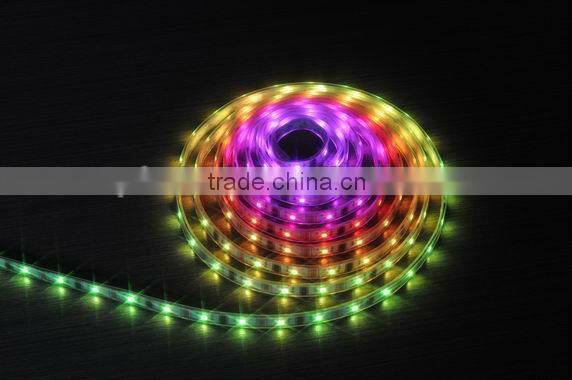

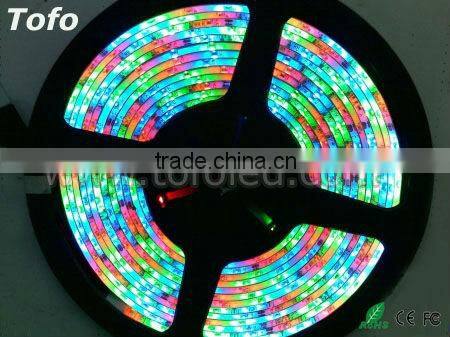

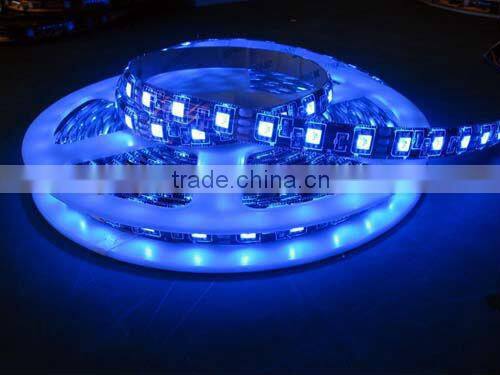

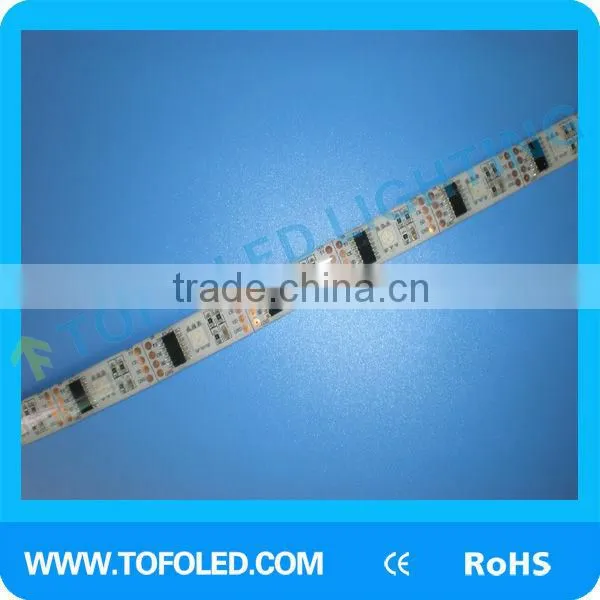

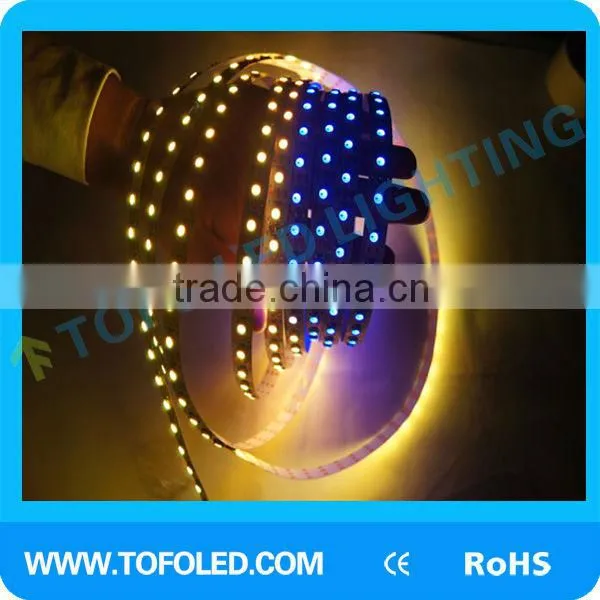

rgb color changing 5V WS2811 digital led strip light
Parameters:
| LED Type | 5050 SMD LED (non-Waterproof) |
| Color | RGB Horse Race |
| LED Quantity | 30 leds/Meter |
| Package | 5 Meters / Reel |
| View angle | 120° |
| Working Input Voltage | 5VDC |
| IC number | WS2811 IC(256 scale,8 bit) 1IC control 1LED |
| Working Tempreture | -20° to 50° |
| IC chip | WS2811 |
| PCB Background | white |
| Waterproof | IP65 waterproof by silicon coating or silicon tube |
Application
- Path&contour marking
- legend back lighting
- Illuminate sign
- Mood and special light
- Channel letter lighting
Features and Benefits:
- Control IC included, supporting numerous color-change effects;

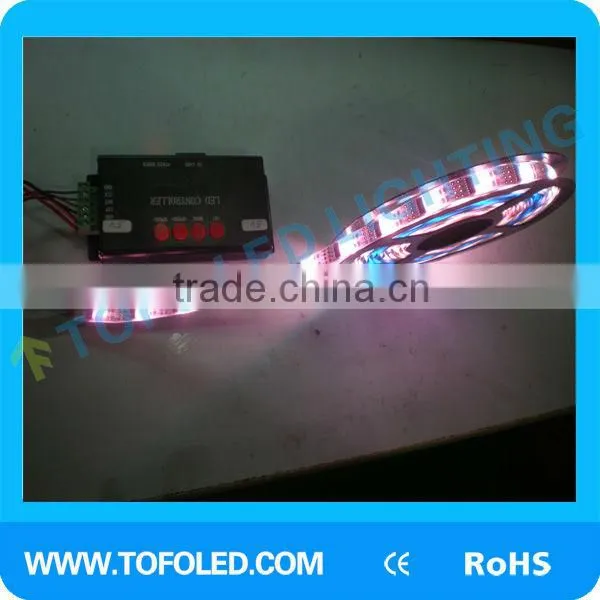

- "Plug-in" controller with remote control;
- Flexible PCB, 5V low voltage input;
- Every 2 Leds linear separable, custom-length available;
- Eco-green light, no UV, IR;
- Extremely long lifespan & lower power consumption;
Application:
1.Personal DIY home decoration.
2.Route instructions and exterior decorative outline
3.Backlit billboards,advertising signs,channel signal signs
4.Festive decorations,activities,venue set,exhibition decoration,hall decoration.
5.Hotels and other entertainment decorated KTV
Difference between NON-IP, IP65, IP67 AND IP68 waterproof LED Strip:
Non-waterproof -------
Regular FLEX LED Strip: SMD LEDs are mounted directly on the surface of the flexible PCB(Printed Circuit Board), With 3M tape on the back, easy installation for indoor use.
It has no resistance to liquid and should be installed in areas where water or other liquids cannot make contact with it.
Epoxy Resin covering(IP65) -----
LED strips dropped with Epoxy resin adhesive / PU gule to get water resistant coat on the surface,
widely used indoor and outdoor. It is ideal for bar areas however it should not be used in areas with heavy
waterfall. IP65 is extremely difficult to cut, solder and re-seal as the epoxy resin must first be scraped away carefully before being soldered.
Silicon tube waterproof(IP66) -------
LED Strips encapsulated with a Silicone(or PVC)jacket. It can reach water
proof class IP64. Easy to access solder points to rejoin.We don’t recommend underwater usage but it is
perfect for exterior environments. It is also easy to cut and re-seal as it comes with a mini sealing kit with every reel.
Silicon tube+epoxy(IP68) -------
High IP standard, PVC/ silicone tube and sealed with silicone & PU, PVC & EPOXY inside.
Widely used outdoor and under water
