Home > Products > LED PL Lamp > smd5050 13W G24 LED PL bulb to replace cfl bulb
smd5050 13W G24 LED PL bulb to replace cfl bulb
- 50000 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
LED Light Source: | LED | Type: | Corn Lights | Input Voltage(V): | 85-265V AC |
Lamp Power(W): | 13 | Lamp Luminous Flux(lm): | 1170-1250lm | Lamp Luminous Efficiency(lm/w): | 90 |
Color Temperature(CCT): | Other, Warm white, pure white,cold white | Working Lifetime(Hour): | 50000 | Lamp Body Material: | Aluminum Alloy |
Certification: | CE | Base Type: | G23 | Place of Origin: | Guangdong, China |
Brand Name: | TOFO | Model Number: | TF-PL-13W |
Product Description

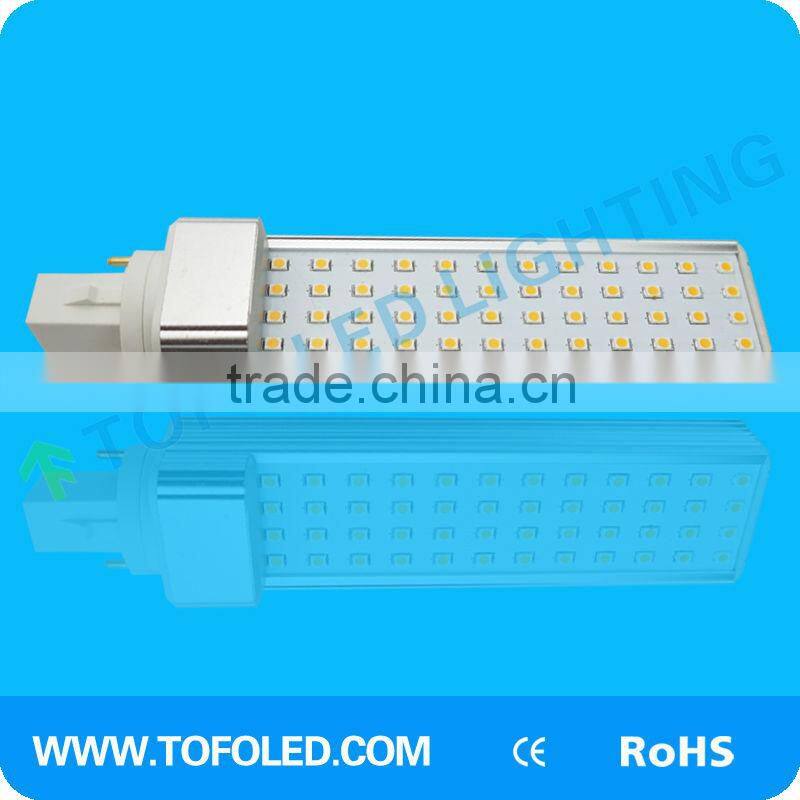

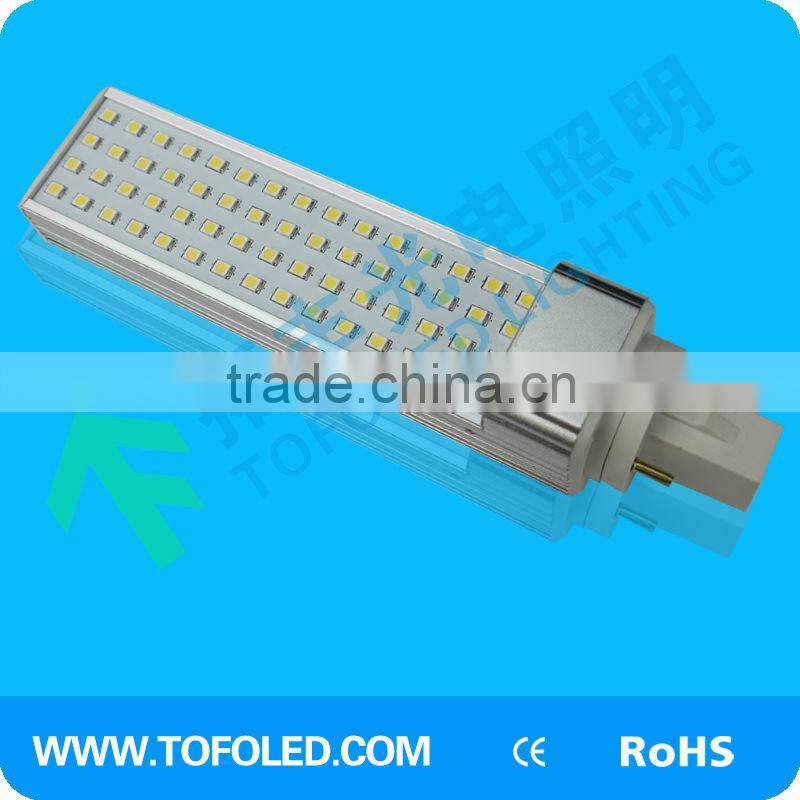

smd5050 13W G24 LED PL bulb to replace cfl bulb
Features
Extruded aluminum material crust disposed by oxide on the surface good for heat dissipation.
Constant voltage source and constant current source LED drive
- NO shadow and shatter-resistant, Beam angle as widely as 120°,widely used
- Less than 65°C for surface temperature with multiple heat dissipation
- High brightness of Epistar SMD, more than 85% efficiency
Specifications
Item No.
Parameter | TF-PL-6WA | TF-PL-8WA | TF-PL-10WA | TF-PL-13WA |
Power | 6W | 8W | 10W | 13W |
Input Voltage | AC 85-265V | |||
LED Qty | 28pcs | 36pcs | 48pcs | 60pcs |
Luminous | 500-540LM | 650-700LM | 850-900LM | 1140-1170LM |
LED Source | SMD3014/2835 | |||
Material | Aluminous | |||
Holder | E27/G24(2pins and 4pins) | |||
Size(mm) | E27 127(L)x35(W) | E27 127(L)x35(W) | E27 127(L)x35(W) | E27 127(L)x35(W) |
G24 121(L)x35(W) | G24 121(L)x35(W) | G24 121(L)x35(W) | G24 121(L)x35(W) | |
CRI | >70 | |||
Beam Angle | 120° | |||
Color Temperature | WW /NW/CW | |||
Lifespan | 50000hs | |||
Warranty | 3 years | |||
Color temperature: WW: Warm white NW: Nature white CW: Cool white |
Payment Term: T/T, 30% deposit, 70% balance be paid before shipment, L/C, Western Union, PayPal
Item No. Package Delivery time | PL-6W | PL-8W | PL-10W | PL-13W |
Qty/Ctn | 200PCS | 200PCS | 192PCS | 192PCS |
Net Weight | 24kg | 24kg | 24kg | 24kg |
Gross Weight | 25kg | 25kg | 25kg | 25kg |
Carton Size | 480*330*370mm(L x W x H) | |||
1-200PCS | 3-5 Working Day | |||
201-500PCS | 5-7 Working Day | |||
501-1000PCS | 8-12 Working Day | |||
1001-2000PCS | 13-15 Working Day |
Application and installation
- Good replacement for the traditional PL Lamp, suitable for window display in fashion shop
- Fashion show, notebook pc shop,hotel,entertainment place.
- E27 LED PL Lamp installation is easy, remove the traditional bulb, then connect 85-265V AC directly, without ballast, and put the E27 LED PL Lamp on as the following photos.
Usage Notice
- No ballast need, Any ballast should be removed before installation
- The LED PL Light is not water-proof
- The surface of the lamp temperature peak almost 65°C, do not touch the aluminum or any part while working
Contact Us
- Shenzhen Tofo LED Lighting Technology Co., Ltd.
- Contact nameLina Lee
- Phone86-755-27765619
- AddressChangfeng Industrial Zone, Dongkeng Town, Gongming Street, Guangming New District Shenzhen,Guangdong
