Help Center2G7 2GX7 SMD2835 LED PL Lamp
Related Products
-
Ultra Thin 4w SMD2835 2G7 LED PL LightUS$ 2 - 3MOQ: 50 Pieces -
G23/GX23/2G7/2GX7 Smd2835 LED PL LampNegotiableMOQ: 50 Pieces
-
High Quality Cheap Price 6w 2g7 LED PL BulbNegotiableMOQ: 50 Pieces
-
Ultra Thin 4w 5w 6w 8w G23 LED PL LampNegotiableMOQ: 50 Pieces
-
SMD2835 120degree Led Plc Light BulbNegotiableMOQ: 50 Pieces
Specifications
2G7 2GX7 SMD2835 LED PL Lamp1. 8w
2. SMD3014
3. Size: 234x27mm
4. 3years Warranty

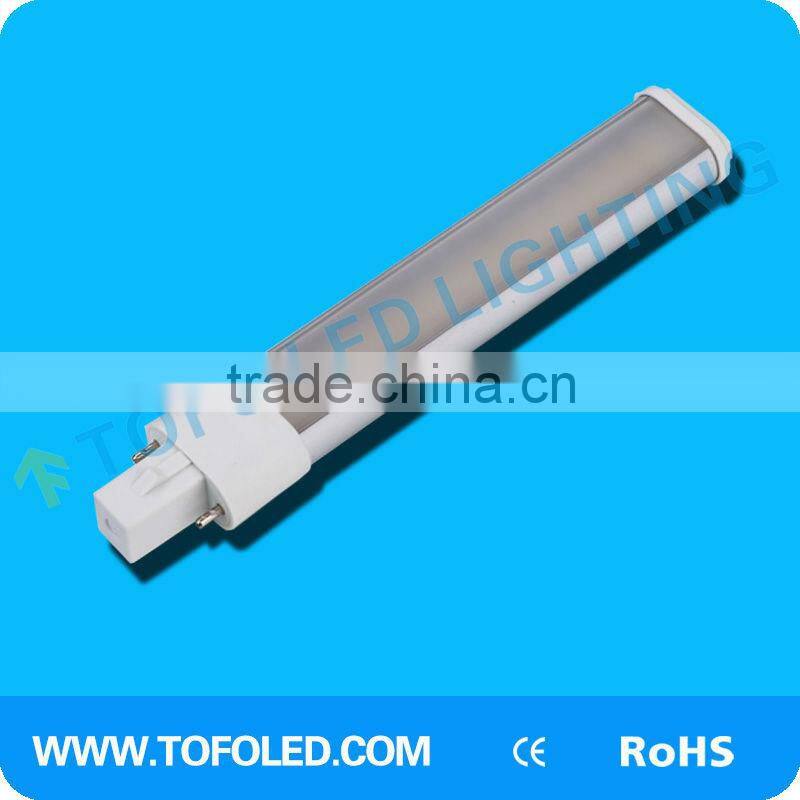

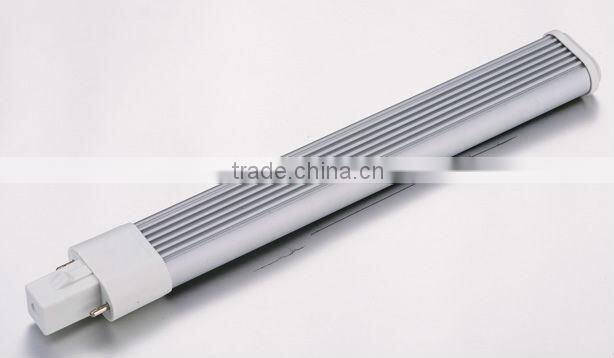

2G7 2GX7 SMD2835 LED PL Lamp
Features
Extruded aluminum material crust disposed by oxide on the surface good for heat dissipation.
Constant voltage source and constant current source LED drive
- NO shadow and shatter-resistant, Beam angle as widely as 120°,widely used
- Less than 65°C for surface temperature with multiple heat dissipation
- High brightness of Epistar SMD, more than 85% efficiency
Specifications
|
Item No.
Parameter |
TF- -S106H-1 |
TF-PL- S107H-2 |
TF-S108H-3
|
|
Power |
6W |
7W |
8W |
|
Input Voltage |
AC 85-265V |
|||
LED Qty |
80pcs |
84pcs |
84pcs |
|
Luminous |
350-450LM |
400-500LM |
500-560LM |
|
LED Source |
SMD3014 |
|||
Material |
Aluminum |
|||
Holder |
G23/GX23/2G7/2GX7 |
|||
Size(mm) |
165x27mm |
180x27mm |
234x27mm |
|
|
|
|
|
|
CRI |
>80 |
|||
Beam Angle |
180° |
|||
Color Temperature |
WW /NW/CW |
|||
Lifespan |
50000hs |
|||
Warranty |
3 years |
|||
Color temperature: WW: Warm white NW: Nature white CW: Cool white | ||||
Package &Trade Term
Payment Term: T/T, 30% deposit, 70% balance be paid before shipment, L/C, Western Union, PayPal
|
Item No. Package Delivery time |
PL-6W |
PL-7W |
PL-8W |
|
Qty/Ctn |
50pcs |
50pcs |
50pcs |
|
Net Weight |
2kg |
2.5kg |
3.0kg |
|
Gross Weight |
2.5kg |
3.0kg |
3.5kg |
|
Carton Size |
23*18*21 cm (L x W x H) |
|||
1-200PCS |
3-5 Working Day |
|||
201-500PCS |
5-7 Working Day |
|||
501-1000PCS |
8-12 Working Day |
|||
1001-2000PCS |
13-15 Working Day |
|||
Remarks:
1. Laser printing products and company information on the lamp (logo,spec.)
2. The color box and carton can be customized.
3. Take following measures for protecting lamps better:
3.1 There is EPE foam pad at Top of lamp in unit box.
3.2 There is paper set at bottom of lamp in unit box to fix and protact.
3.3 Bubble wrap shipping carton can be customized.
Application and installation
- Good replacement for the traditional PL Lamp, suitable for window display in fashion shop
- Fashion show, notebook pc shop,hotel,entertainment place.
- E27 LED PL Lamp installation is easy, remove the traditional bulb, then connect 85-265V AC directly, without ballast, and put the E27 LED PL Lamp on as the following photos.
Usage Notice
- No ballast need, Any ballast should be removed before installation
- The LED PL Light is not water-proof
- The surface of the lamp temperature peak almost 65°C, do not touch the aluminum or any part while working
