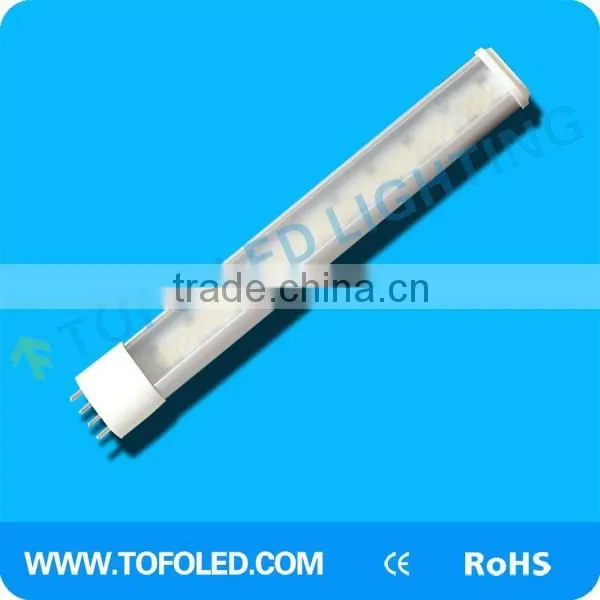

thin body frosted cover smd2835 g23 led pl lamp
Extruded aluminum material crust disposed by oxide on the surface good for heat dissipation.
Constant voltage source and constant current source LED drive
- NO shadow and shatter-resistant, Beam angle as widely as 120°,widely used
- Less than 65°C for surface temperature with multiple heat dissipation
- High brightness of Epistar SMD, more than 85% efficiency
Specifications
|
Item No.
Parameter |
TF- -S104H |
TF-PL- S105H |
TF-S106H
|
TF-S108H |
Power |
4W |
5W |
6W |
8W |
Input Voltage |
AC 85-265V |
|||
LED Qty |
6pcs |
8pcs |
12pcs |
16PCS |
Luminous |
350-450LM |
400-500LM |
500-560LM |
700~800LM |
LED Source |
SMD2835 |
|||
Material |
Aluminum |
|||
Holder |
G23/GX23/2G7/2GX7 |
|||
Size(mm) |
135x27mm |
165x27mm |
165x27mm |
180x27mm |
|
|
|
|
|
CRI |
>80 |
|||
Beam Angle |
180° |
|||
Color Temperature |
WW /NW/CW |
|||
Lifespan |
50000hs |
|||
Warranty |
3 years |
|||
Color temperature: WW: Warm white NW: Nature white CW: Cool white | ||||
Package &Trade Term
Payment Term: T/T, 30% deposit, 70% balance be paid before shipment, L/C, Western Union, PayPal
|
Item No. Package Delivery time |
PL-6W |
PL-7W |
PL-8W |
|
Qty/Ctn |
50pcs |
50pcs |
50pcs |
|
Net Weight |
2kg |
2.5kg |
3.0kg |
|
Gross Weight |
2.5kg |
3.0kg |
3.5kg |
|
Carton Size |
23*18*21 cm (L x W x H) |
|||
1-200PCS |
3-5 Working Day |
|||
201-500PCS |
5-7 Working Day |
|||
501-1000PCS |
8-12 Working Day |
|||
1001-2000PCS |
13-15 Working Day |
|||
Remarks:
1. Laser printing products and company information on the lamp (logo,spec.)
2. The color box and carton can be customized.
3. Take following measures for protecting lamps better:
3.1 There is EPE foam pad at Top of lamp in unit box.
3.2 There is paper set at bottom of lamp in unit box to fix and protact.
3.3 Bubble wrap shipping carton can be customized.
Application and installation
- Good replacement for the traditional PL Lamp, suitable for window display in fashion shop
- Fashion show, notebook pc shop,hotel,entertainment place.
- E27 LED PL Lamp installation is easy, remove the traditional bulb, then connect 85-265V AC directly, without ballast, and put the E27 LED PL Lamp on as the following photos.
Usage Notice
- No ballast need, Any ballast should be removed before installation
- The LED PL Light is not water-proof
- The surface of the lamp temperature peak almost 65°C, do not touch the aluminum or any part while working
FAQ:
-Question: What is the Minimum Order Quantity(MOQ)?
Answer: 1 pcs per model.
- Question: How much do I need to pay for your OEM service?
Answer: No need to pay extra cost for our OEM service if order qty over 500pcs. The OEM cost is already included in our prices.
- Question: May I buy samples from you?
Answer: Yes, samples available.
- Question: What’s the leading time? (How long do you need to prepare my goods?)
Answer: 1-2days for sample orders. 3-7days for mass production orders (based on different quantities).
- Question: How will you deliver my goods to me?
Answer: We always ship by air and sea. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers get their goods rapidly.
- Question: How long do I need to wait before my goods arrive?
Answer: 5-7 days for air transportation, 3-5 days for international express. 20-40 days for sea transportation.
- Question: Can you put my brand name (logo) on these products?
Answer: Yes, of course. OEM service is the most important part of our trade purpose.
- Question: What payment method do you accept?
Answer: T/T, L/C, Western Union, Money Gram, Escrow, etc.
- Question: What certificates do you have?
Answer: CE,ROHS,UL ,CUL.DLC,TUV,
- Question: What is your product quality?
Answer: Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard.
- Question: What is your waranty?
Answer: 3 to 5 years ,If the products have quality problem during this time ,we can repair or replace new product by free cost .
