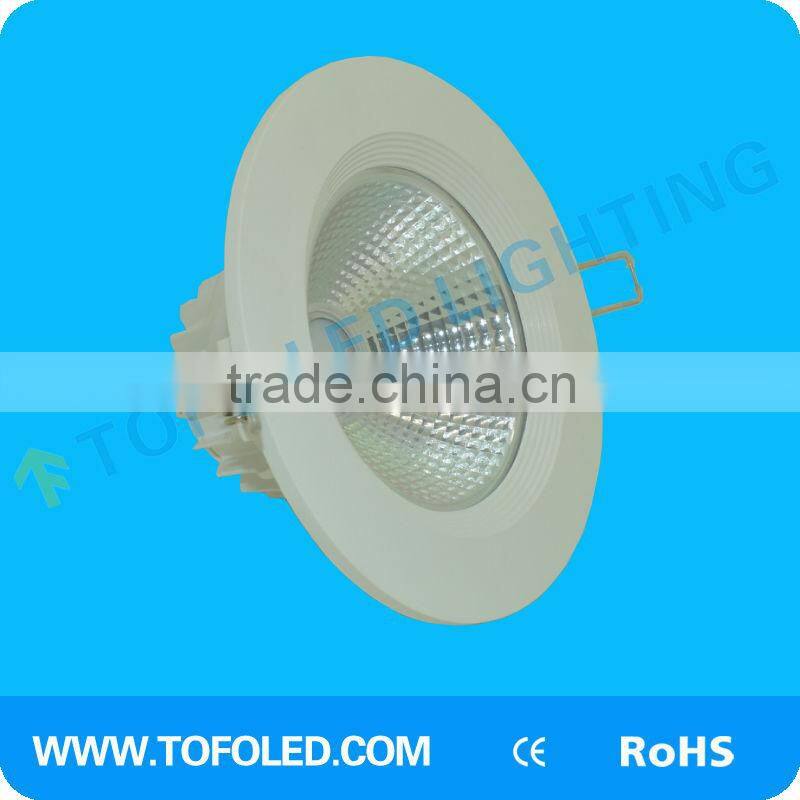

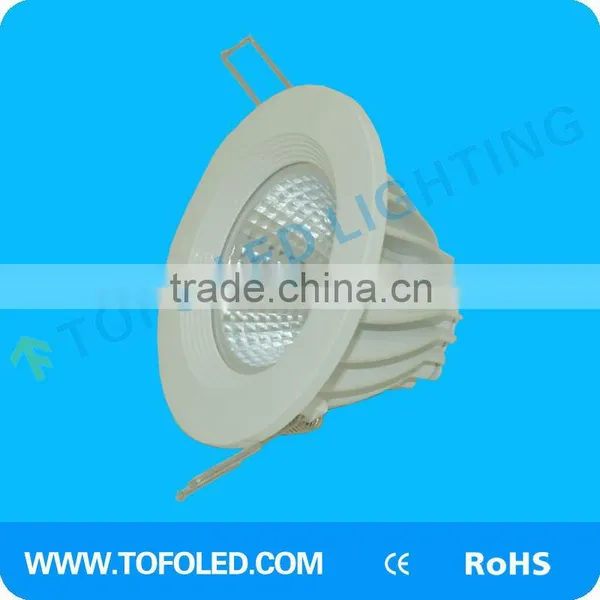

AC100-240V 10w Cob Led Downlights

AC100-240V 10w Cob Led Downlights thumbnail-1
AC100-240V 10w Cob Led Downlights photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
Samsung
Warranty(Years):
2
Input Voltage(V):
AC85V-260V
Contact Supplier Request Quote Chat Now
Shenzhen Tofo LED Lighting Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Samsung
Warranty(Years) 2
Input Voltage(V) AC85V-260V
Lamp Power(W) 7
Lamp Luminous Flux(lm) 700
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, 2700K~7000K
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP44
Certification CCC, CE
Model Number TF-DLS-7W
Place of Origin Guangdong, China
Brand Name TOFO

Specifications

downlighting
1. Power: 3~30W
2. Voltage: AC85V-260V
3. CCT: Warm white/pure white/cold white
4. SMD5630

 SMD5630 High brightness led down lighting





Parameters





1) Wide voltage: AC85-265V



2) Wattage: 3W,5W,7W, 9W, 12W,15W, 18W, 20W, 30W, etc.



3) Light source: SMD5630



4) Lumens: 100LM/W



5) Power Factor: >0.9



6) Color Temperture: 3000-3500K(warm white);4000-4500K(pure white);6000-6500K(cool white)



7) Beam Angle: 120°



8) Housing Material: Aluminum



9) Certification: CE, RoHS,



10) Warranty: 2 years



Features:





1) Super bright 5630 SMD LED chip, high color rendering index, long life span ;



2) Wide voltage and constant current design;



3) Fully aluminum housing, Well-design of thermal structure;



4) Solid State, shockproof save power more than 90% by ordinary bulbs



5) Much more energy-saving;



6) Pro-environment, no UV or other radiation;



7) Instant start, no flashing



8) Lifetime: 50,000hours



9) Certificate: CE,RoHS



Model Wattage Out size (mm) Cutout Size

Voltage

 Light Effiicency Beam Angle CCT
TF-DLS-3W 3w Dia95*H35 Dia80mm AC85-265V 90~100lm/w  120°  2700~7000K
TF-DLS-5W 5w Dia105*H50

Dia80~90mm

 AC85-265V   90~100lm/w 120° 2700~7000K
TF-DLS-7W 7w Dia115*H60

Dia80~90mm

 AC85-265V 90~100lm/w 120° 2700~7000K
TF-DLS-9W 9w Dia140*H40 Dia115mm AC85-265V 90~100lm/w 120° 2700~7000K
TF-DLS-12W 12w Dia135*H65 Dia115mm AC85-265V 90~100lm/w 120° 2700~7000K
TF-DLS-15W 15w Dia160*H65 Dia140mm AC85-265V 90~100lm/w 120° 2700~7000K
TF-DLS-18W 18w Dia180*H45 Dia150mm AC85-265V 90~100lm/w 120° 2700~7000K
TF-DLS-25W 25w Dia190*H65 Dia160mm AC85-265V 90~100lm/w 120° 2700~7000K
TF-DLS-30W 30w Dia230*H65 Dia200mm AC85-265V 90~100lm/w 120° 2700~7000K



AC100-240V 10w cob led downlightsAC100-240V 10w cob led downlightsAC100-240V 10w cob led downlightsAC100-240V 10w cob led downlights





Application:



1. Home and office lighting



2. Shopping mall lighting



3. Display case lighting



4. Under cabinet lighting



5. Art lighting



6. Board lighting



7. Back lighting, step lighting, light boxes



8. Cabinet and under counter lighting
