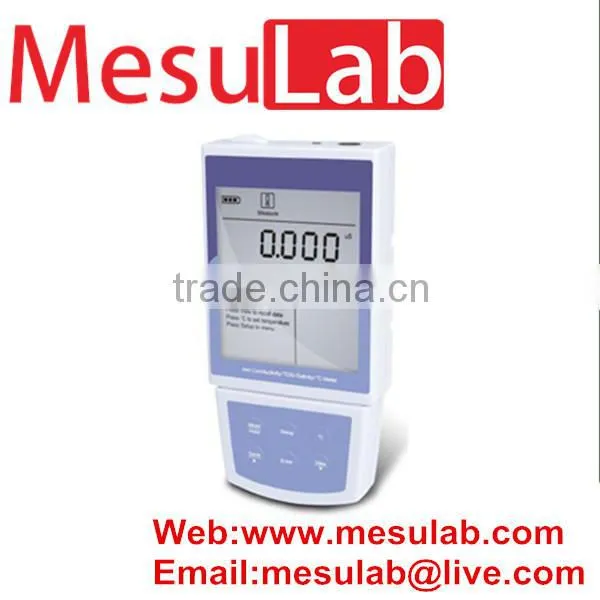

ME-520 Portable Conductivity Meter (with Temperarure)

Name: ME-520 Portable Conductivity Meter (with Temperarure)
Brand: MesuLab
SKU: 133442797
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

MesuLab

Model Number:

ME-520

Mesu Lab Instruments (Guangzhou) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name MesuLab

Model Number ME-520

Portable pH / mV Meter

520 conductivity and related measurements operate from a CPU for high accuracy measurements and data storage and output.

Features:

Automatic Calibration:

It’s capable of calibrating up to 5 points using standard solution. From Setup Menu, choose Calibration and press key to set

known conductivity value, immerse conductivity electrode into calibration solution, press ENTER key and meter is automatically calibrated.

Conductivity Auto-Ranging:

It have auto-range functions for measuring conductivity and total dissolved solids (TDS). Upon immersing conductivity

sensor into sample solution, the screen immediately displays the value in appropriate measurement range for accuracy.

Automatic Temperature Compensation:

Using the supplied temperature probe, the temperature value is displayed on the screen. The meters provides manual or

automatic temperature compensation mode for optimum accuracy under variable temperature conditions.

Adjustable Temperature Coefficient:

Various ions may have different temperature coefficients, this series can set the temperature coefficient between 0 and 3.9%

in degrees Centigrade for optimum accuracy.

Adjustable Cell Constant:

This series has three cell constants for measuring requirements. Once a cell constant has its calibration set, it is saved and

does not require re-calibration when switching electrodes.

Specifications:

Model	520	Cell Constant	K=0.1, 1.0, 10 adjustable.
Conductivity Range	0~20.00mS/cm (max. 200mS/cm)	Memory	64 data sets with date/time stamping.
Conductivity Accuracy	±0.5oF full scale	Output	USB
Temperature Range	0-100oC	Connector	6 pin
Temperature Accuracy	±1oC	Power Requirements	1x9V Battery
Calibration Points	1 point per range	Battery Life	Approx. 200 hours of continuous use
Temperature Compensation	0~50oC, Manual or Automatic	Dimensions & Weight	185(L)88(W)32(H)mm & 300g
Temperature Coefficient	0-3.9% per oC
