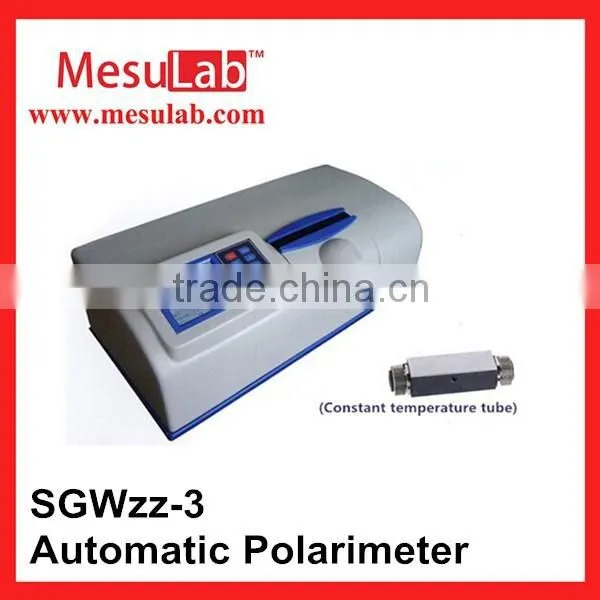

ME-SGWzz-3 The Sugar Industry Automatic Polarimeter

Name: ME-SGWzz-3 The Sugar Industry Automatic Polarimeter
Brand: MesuLab
SKU: 133442463
Availability: InStock

US$ 1 - 6,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

MesuLab

Model Number:

ME-SGWzz-3

Mesu Lab Instruments (Guangzhou) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name MesuLab

Model Number ME-SGWzz-3

ME-SGWzz-3 Automatic Polarimeter

Application:

The Polarimeter is an instrument used for determining the optical rotation of Substances.

In this way, the concentration, content, purity, etc of certain substances can be found out.

Therefore, the polarimeter has become one of the most useful instruments in laboratories of sugar industry, pharmaceutical

industry, oil refining, foodstuff industry, chemical industry, universities and scientific research field.

Characteristics:

1.Use UBS or RS232 and can be used for measuring specific rotation,optical rotation,sugar degree and concentration.

2.It offers automatic repetition-measurement for 6 times,and calculation of average value and means square root.

3.The automatic polarimeter uses Peltier principle to control the temperature.

4.It can be used for measurement of dark-colored sample.

5.To make users more convenient to manage&use every data testing result, the instruments with the function of calendar and

time.

6.Build-in memory chip,can save 160 group data

Specifications:

Model	SGWzz-3
Display	Touch Screen
Light Source	LED, wavelength 589.44nm.
Measurement Range	-89º~+89º
Minimum Reading	0.001º (0.01º Z)
Accuracy	±0.01(-15º«optical rotation«+15º). ±0.02(optical rotation<-15º, or optical rotation>+15º).
Temperature Control Range	15-30°C
Accuracy	+/-0.5°C
Repeatability	Sample transmittance>1%≤0.002º (0.006ºZ)
Constant Temperature Sample Tube&Volume	1pc 100mm&2ml
Dimension	850470380mm&37kg
