MP516 Bench Top Lab Dissolved Oxygen Tester

Name: MP516 Bench Top Lab Dissolved Oxygen Tester
Brand: MesuLab
SKU: 133442319

US$ 1 - 1,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

MesuLab

Model Number:

MP516

Mesu Lab Instruments (Guangzhou) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name MesuLab

Model Number MP516

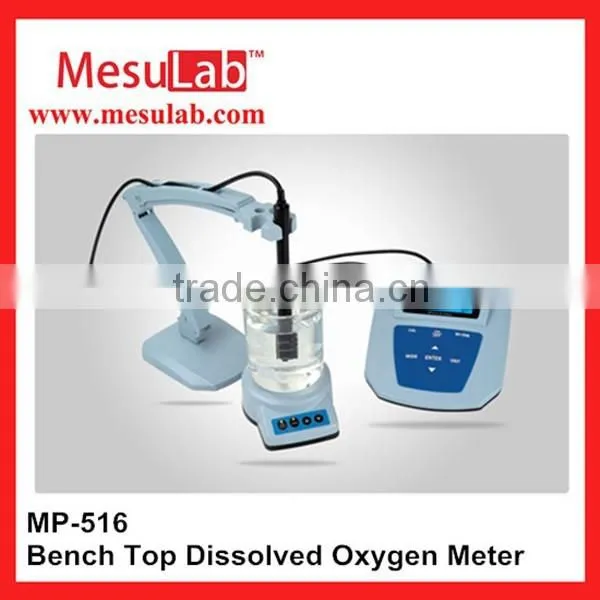

MP516 Bench Top Dissolved Oxygen Meter

1. Introduction:

1). With ATC, automatic salinity compensation and automatic air pressure compensation.

2). Has function of automatic temperature compensation and automatic salinity compensation

as well as automatic air pressure compensation inside meter to make DO measuring mode

has temperature, air pressure and salinity automatic compensation, easy to use, accurate to measure.

3). with the requirement of international GLP standards. Its features up to automatic calibration,

automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.

4). There are three different measurement modes: stable display mode; time measurement mode;

continuous measurement mode.

5). Electrode adopts combination diaphragm cap, assembling sensitive membrane with diaphragm

cap, which very convenient to replace the sensitive membrane. The user only needs to screw the

new membrane cap on the electrode.

6). Dust proof and waterproof meter meets IP54 standards. All sockets are seal protected by the

silica gel caps.

2. Specifications:

Model	MP516
Measuring range	(0 to 40.00) mg/L(ppm) (0 to 200.0) %
Resolution	0.1/0.01 mg/L(ppm) 1/0.1%
Accuracy	Meter: ±0.10 mg/L, connect meter with electrode: ±0.40 mg/L
Response time	≤30s (25°C, 90% response)
Residual current	≤0.1 mg/L
Temp compensation range	(0 to 45) °C (automatic)
Salinity compensation range	(0 to 45) ppt (automatic)
Air pressure compensation range	(80 to 105) kPa (automatic)
Automatic calibration	Air saturated by water; water saturated by air
Electrode type	Polarogram type
Temperature Measuring range	0 to 45°C
Temperature Resolution	0.1°C
Temperature Accuracy	±0.5°C
Data storage	600 groups
Power	DC9V/300mA
Communication connector	RS-232
Size and weight	160 190 70mm/880g
