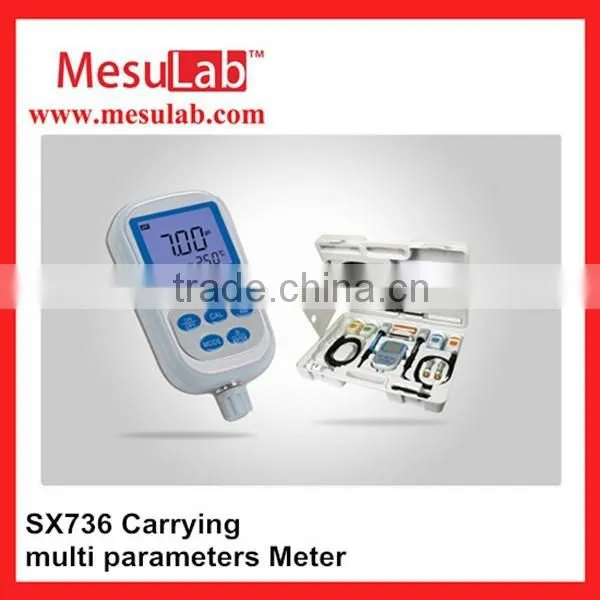

SX736 Portable Dissolved Oxygen / Conductivity / ph / 0rp / Resistivity / Salinity / Tds Meter

Name: SX736 Portable Dissolved Oxygen / Conductivity / ph / 0rp / Resistivity / Salinity / Tds Meter
Brand: Mesulab
SKU: 133442307

US$ 1 - 400 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Mesulab

Model Number:

SX736

Mesu Lab Instruments (Guangzhou) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Mesulab

Model Number SX736

Carrying multi parameters Meter

1. Introduction:

1. Special 8-pin waterproof connector which four different electrodes (pH, ORP, Conductivity, DO)

can be plugged into, ability of the meter to recognize automatically those electrodes.

2. Automatic calibration, automatic temperature compensation, automatic ranging, function setup,

automatic power-off , low voltage display, etc.

3. Data storage 100-400 groups, IP57 waterproof.

4. “Mobile Laboratory”—— meter, electrode, standard solution and other accessories are all in a portable case.

2. Specifications:

Data storage: 200 groups (content Series number, measure value, measure unit, temperature)

Power: Two AA batteries (1.5V *2)

Size and weight: meter:(65*120*31)mm/180g;Suitcase: (360*270*76)mm/1.6Kg

Working Environment temperature: 5 ~ 35 ℃(0.01grade)

Working Environmental humidity: ≤85%

IP rating: IP57 Dustproof and waterproof

Model		SX736
PH	Measuring range	(-2.00 ~ 19.99)pH
	Resolution	0.1/0.01 pH
	Accuracy	Meter:±0.01pH; Overall: ±0.02pH
	Input current	≤2×10-12 A
	Input impendance	≥1×1012 Ω
	Stability	±0.01 pH/3h
	Temp. compensation range	(0 ~ 100)℃(automatic)
ORP	Measuring range (mV/ORP/EH)	-1999mV ~ 0 ~ 1999mV
	Resolution	1mV
	Accuracy	Meter:±0.1% FS, Overall: ±15mV
Conductivity	Measuring range	Conductivity: (0.00~19.99)μS/cm (20.0~199.9)μS/cm (200~1999)μS/cm (2.00~19.99)mS/cm (20.0~199.9)mS/cm TDS: (0 ~ 100)g/L Salinity: (0 ~ 100)ppt Resistivity:(0 ~ 100)MΩ·cm
	Resolution	0.01/0.1/1μS/cm 0.01/0.1 mS/cm
	Accuracy	Meter:±1.0% FS, Overall:±1.5% FS
	Temp. compensation range	(0 ~ 50)℃(manual)
	Electrode constant	0.1 / 1 / 10 cm-1
	Benchmark temperature	25℃,20℃ and 18℃
Dissolved Oxygen	Measuring range	(0 ~ 40.00)mg/L(ppm) (0 ~ 200.0)%
	Resolution	0.1/0.01 mg/L(ppm) 1/0.1 %
	Accuracy	Meter:±0.10 mg/L, Overall:±0.40 mg/L
	Response time	≤30 s(25℃, 90%response)
	Residual current	≤0.1 mg/L
	Temp. compensation range	(0 ~ 45)℃(automatic)
	Salinity compensation range	(0 ~ 45)ppt(automatic)
	Atmospheric pressure compensation range	(66 ~ 200)kPa (manual)
	Automatic calibration	Air saturated by water; water saturated by air
	Electrode type	Polarogram type
