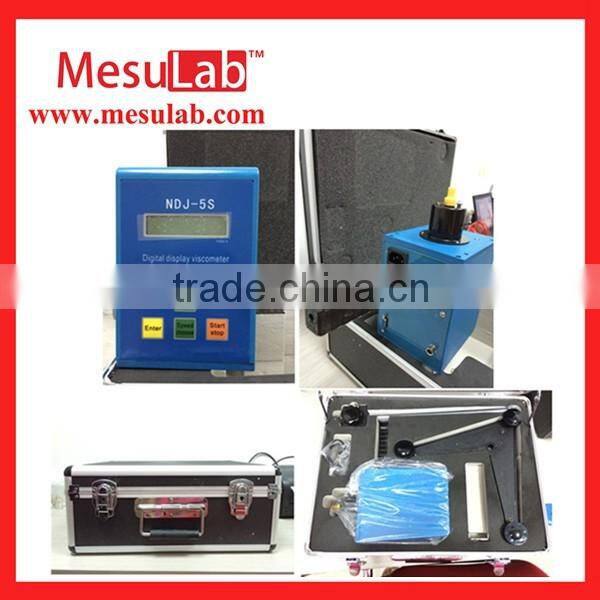

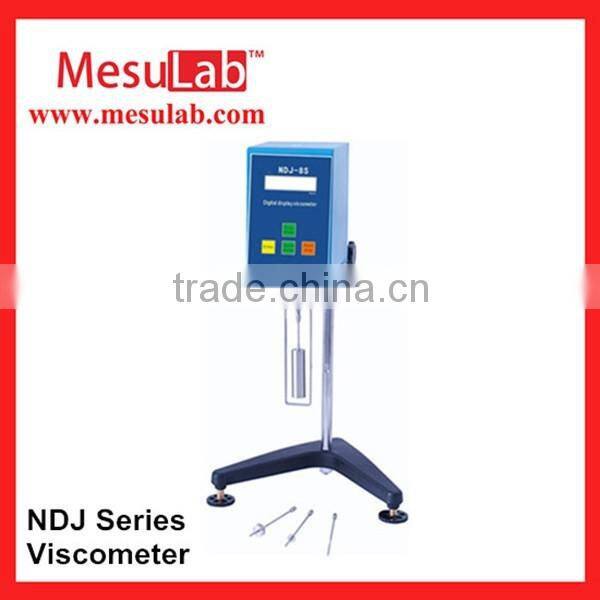

ME - NDJ Series Viscometer
Applications:
Widely used in all need to rapid determination of moisture in the industry, such as chemical, pharmaceutical,
textile, agriculture, forestry and agricultural, dairy, food, paper making, etc used for determination of drugs,
food, food, feed, resin, plastic, rubber, oil, minerals, seeds, dehydrated vegetables, starch, tea, tobacco, graphite,
paint, dyes and other items.
Feature:
(1). The measurement data is directly displayed on the LCD panel without secondary calculation.
(2). Optional temperature probe, the real time measurement by testing the temperature of the sample.
(3). Automatic scanning, the instrument can automatically recommend the best combination of rotor and the
rotating speed.
(4).Automatically display the selected combination can measure the rotational speed of rotor and the largest range
of viscosity.
(5). Optional data processing software, real-time record viscosity, speed, rotational speed or the rotor (shear rate)follow the difference of the temperature changes.
Technical Specifications:
Model | NDJ-5S | NDJ-8S |
Measuring Range | 0.1~100,000 mPa.s | 0.1~2,000,000 mPa.s |
Rotate Speed(r/min) | 6 / 12 / 30 / 60 | 0.3/0.6/1.5/3/6/12/30/60 |
Rotor | 1#,2#,3#,4#(Measuring<10 viscosity, needs to be equipped with 0# rotor) | |
Measuring Error(Newtonian liquid) | ±1% | |
Repeatability error(Newtonian liquid) | ±0.5% | |
Data Output | RS232C/USB | |
Power | 110V / 60Hz, 220V / 50Hz | |
Size & Net Weight | 300 *300 *450mm&7kg | |

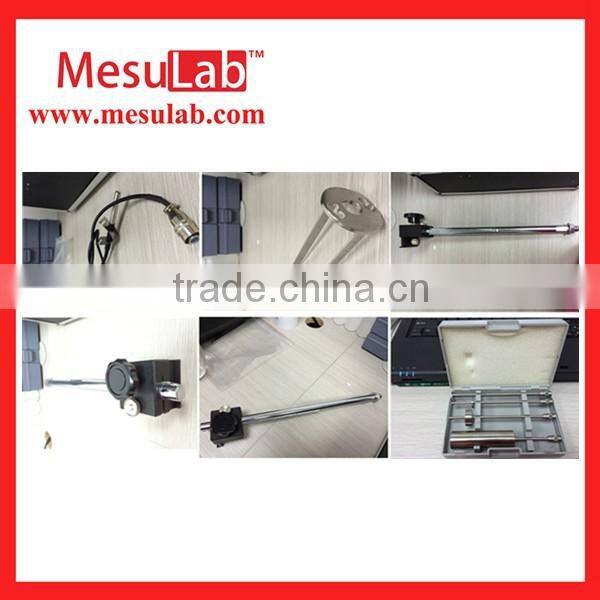

Items | Standard Accessories | Items | Optional Accessories |
1 | Main machine: 1 unit | 1 | Ultra-low viscosity adapter (0 # rotor) |
2 | Rotor protection frame: 1pc | 2 | Temperature probe |
3 | 1, 2, 3, 4 # rotor: 1set | 3 | Thermostatic cup |
4 | Manual : 1pc | 4 | CH1006N constant temperature water bath (10~100℃) |
5 | Metal Carrying Box 1 pc | 5 | DC0506N at low temperature water bath (-5~100℃) |
