NR110 Portable Colorimeter Spectrophotometer

Name: NR110 Portable Colorimeter Spectrophotometer
Brand: MesuLab
SKU: 133441689
Availability: InStock

US$ 1 - 3,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

MesuLab

Model Number:

ME-NR110

Mesu Lab Instruments (Guangzhou) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name MesuLab

Model Number ME-NR110

Power Electronic

Usage Auto Testing Machine

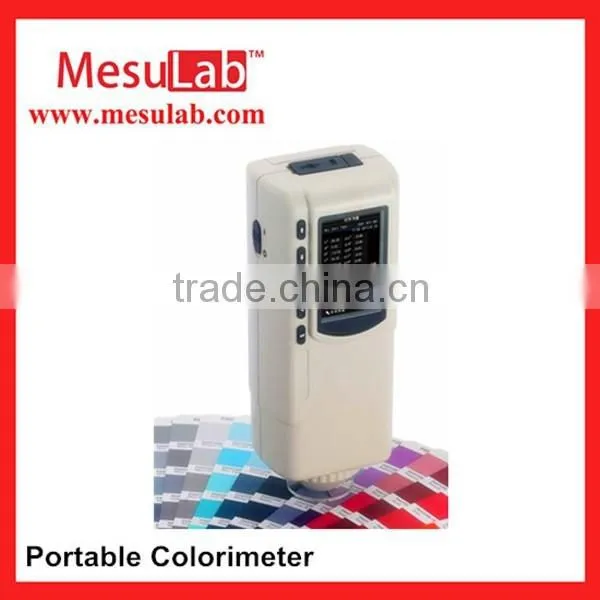

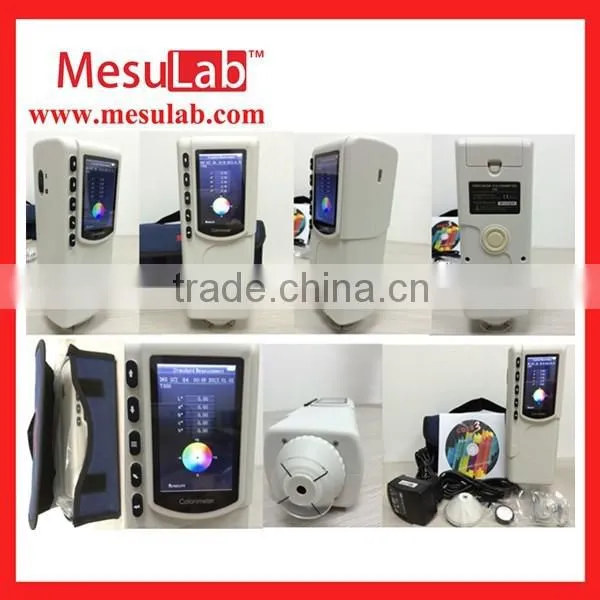

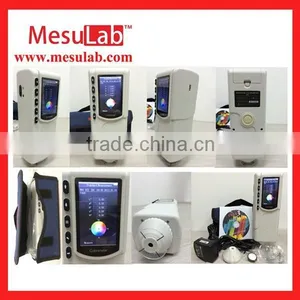

NR110 Portable colorimeter spectrophotometer

Application:

The colorimeter is widely used in plastic, metal, electronic, paint, ink, textile, garment, printing

and dyeing,food, medical, cosmetic, automotive, toy...industries. It with the below advantages:

Built-in white plate parameters: No need to calibrate each time which realize rapid measurement.

New Integrating Sphere Optical Path Design: Eliminating the stray light ℉ main optical path and

auxiliary optical path. Having the advantages ℉ the highest measurement stability and precision.

Equipped with rechargeable high-capacity Li-ion battery.

Configure CQCS3 s℉tware: Connect PC computer to realize more functions.

Cross Platform Measuring Aperture &Small Area Measuring Aperture

Specifications:

Illuminating/Viewing Geometry	8/d
Measuring Aperture	Φ4mm
Detector	Silicon photoelectric diode
L℃ating	Illuminating L℃ating/Cross L℃ating
Double Measurement End Face	Large stable end face and small concave-convex end face
Color Space	CIELabCh* CIELab* CIEXYZ
Color Difference Formula	Eab Lab ECh*
Light Source	D65
Light Source Device	LED blue light excitation
Errors Between Each Equipment	≤0.80E*ab
Storage	100pcs standards 20000pcs samples
Repeatability	Standard deviation within E*ab 0.08; Average ℉ 30 measurements ℉ standard white plate
Packing Dimension	450230370 mm & 2.5KG
Power source	Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life	5 years, more than 1.6 million measurements
Charging Time	8 hours--100% electricity
PC S℉tware	CQCS3 S℉tware
Printer (optional)	Miniature thermal printer
