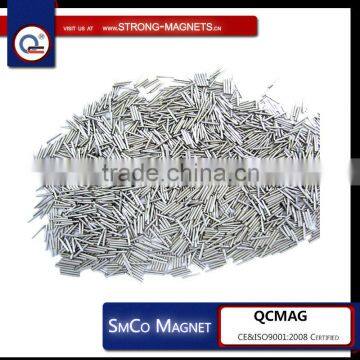

High SAMARIUM COBALT MAGNETS Magnetic Analyzer photo-2

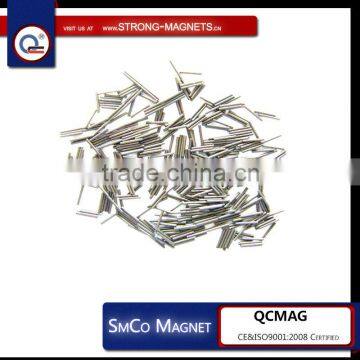

High SAMARIUM COBALT MAGNETS Magnetic Analyzer photo-3

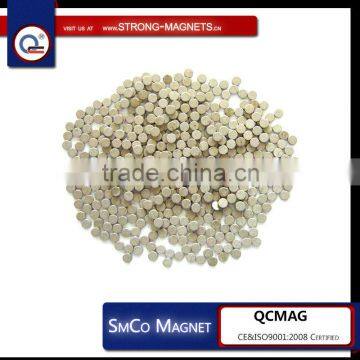

High SAMARIUM COBALT MAGNETS Magnetic Analyzer photo-4

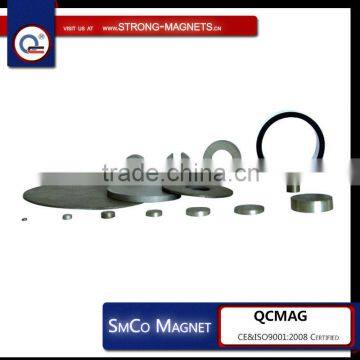

High SAMARIUM COBALT MAGNETS Magnetic Analyzer photo-5

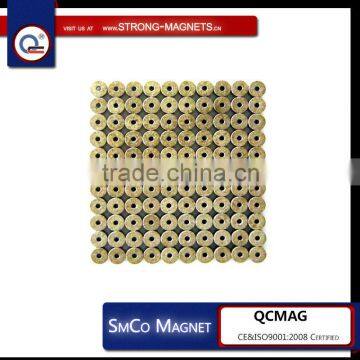

High SAMARIUM COBALT MAGNETS Magnetic Analyzer photo-6
US$ 1 - 1.5 MOQ: 500 Units
Key Specifications
Get Latest Price
Brand Name:
Strong-Magnets
Model Number:
JWU-345458
Type:
Permanent
Contact Supplier Request Quote Chat Now
Shanghai Strong Magnets Industrial And Commercial Company Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Strong-Magnets
Model Number JWU-345458
Type Permanent
Composite Rare Earth Magnet
Shape Other, AS YOU REQUIRE
Application Industrial Magnet

SAMARIUM COBALT MAGNETS for motors





  • Samarium–cobalt magnet, a type of rare earth magnet, is a strong permanent magnet made of an alloy of samarium and cobalt
  • In terms of magnetic strength, they are almost similar to NEO magnets but have superior temperature resistance and coercivity.
      • Difference between Neodymium and Smco Magnets:
    • Properties Neodymium Magnets Smco Magnets
      Remanence (T) 1–1.3 0.82–1.16
      Coercivity (MA/m) 0.875–1.99 0.493–1.59
      Relative permeability 1.05 1.05
      Temperature coefficient of remanence (%/K) −0.12 −0.03
      Temperature coefficient of coercivity (%/K) −0.55..–0.65 −0.15..–0.30
      Curie temperature (C) 320 800
      Density (g/cm3) 7.3–7.5 8.2–8.4
      CTE, magnetizing direction (1/K) 5.2×10−6 5.2×10−6
      CTE, normal to magnetizing direction (1/K) −0.8×10−6 11×10−6
      Flexural strength (N/mm2) 250 150
      Compressive strength (N/mm2) 1100 800
      Tensile strength (N/mm2) 75 35
      Vickers hardness (HV) 550–650 500–550
      Electrical resistivity (Ω·cm) (110–170)×10−6 86×10−6




  • We can supply in different shapes and sizes as per your need.





Application

  • High-end electric motors used in the more competitive classes in slotcar racing
  • Turbomachinery
  • Traveling-wave tube field magnets
  • Applications that will require the system to function at cryogenic temperatures or very hot temperatures (over 180C)
  • Applications in which performance is required to be consistent with temperature change
  • Benchtop NMR spectrometers
  • Guitar Pick ups
  • Samarium - cobalt magnet has a strong resistance to corrosion and oxidation resistance, usually do not need to be coated can be widely used in high temperature and poor working conditions

 Production

  1. Raw materials are melted in an induction furnace filled with argon gas.
  2. The mixture is cast into a mold and cooled with water to form an ingot.
  3. The ingot is pulverized and the particles are further milled to further reduce the particle size.
  4. The resulting powder is pressed in a die of desired shape, in a magnetic field to orient the magnetic field of the particles.
  5. Sintering is applied at a temperature of 1100 C–1250 C, followed by solution treatment at 1100C–1200 C and tempering is finally performed on the magnet at about 700C–900C.
  6. It then is ground and further magnetized to increase its magnetic properties.
  7. The finished product is tested, inspected and packed.









Magnetic properties table of Sintered SmCo magnets:



Material

Shanghai Strong Magnets   magnetic Properties table of Sintered SmCo

Grade

Br

Hcb

Hcj

BHmax

Density

Tw Max

Remark

kGs

mT

kA/m

kOe

kA/m

kOe

KJ/m3

MGOe

g/cm3

°C

SmCo16

8.3

830

640

8

1430

18

128

16

8.3

250

1:05

SmCo18

8.8

880

680

8.5

1430

18

144

18

8.3

250

SmCo20

9.2

920

700

8.7

1430

18

160

20

8.3

250

SmCo22

9.4

940

730

9.1

1450

18

176

22

8.3

250

SmCo24

9.8

980

730

9.1

1450

18

192

24

8.4

300

2:17

SmCo26

10.3

1030

760

9.5

1450

18

208

26

8.4

300

SmCo28

10.5

1050

780

9.7

1450

18.5

224

28

8.4

300

SmCo30

11

1100

810

10.1

1450

18.5

240

30

8.4

300

SmCo26M

10.3

1030

760

9.5

1100

15

208

26

8.4

300

SmCo28M

10.5

1050

780

9.7

1100

15

224

28

8.4

300

SmCo30M

11

1100

810

10.1

1100

15

240

30

8.4

300

SmCo28L

10.5

1050

550

6.9

700

8

224

28

8.4

250

SmCo30L

11

1100

550

6.9

700

8

240

30

8.4

250

SmCo24H

10

1000

720

9

2000

25

192

24

8.4

350

SmCo26H

10.3

1030

760

9.5

2000

25

208

26

8.4

350

SmCo28H

10.5

1050

770

9.6

2000

25

224

28

8.4

350

SmCo30H

10.8

1080

810

10.1

2000

25

240

30

8.4

350

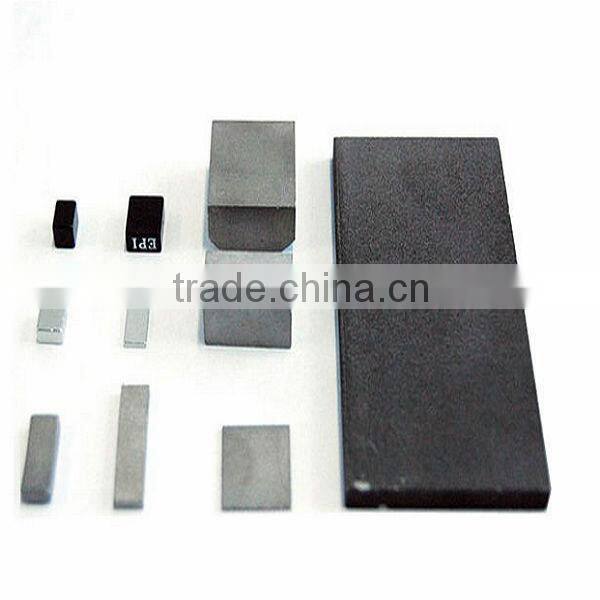

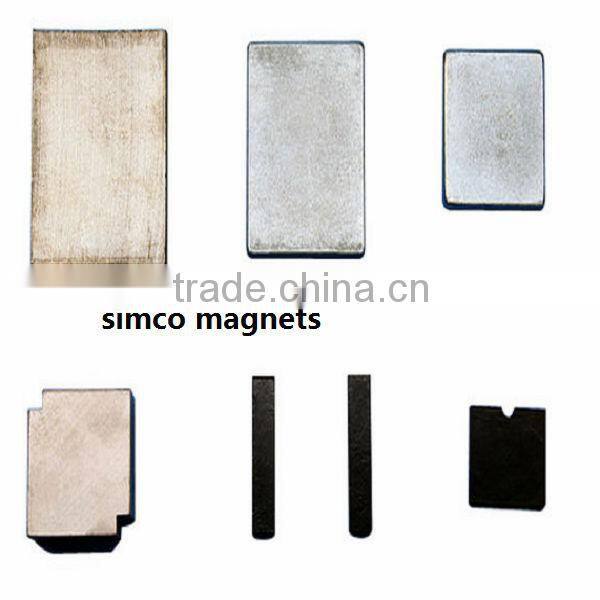

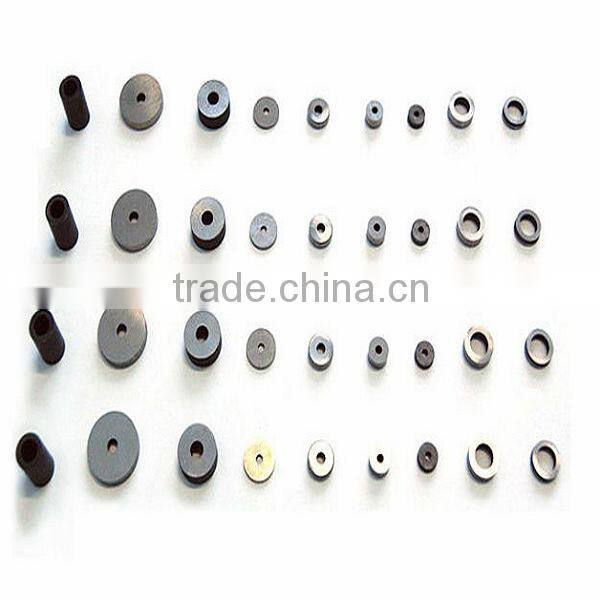

 high SAMARIUM COBALT MAGNETS magnetic analyzerhigh SAMARIUM COBALT MAGNETS magnetic analyzerhigh SAMARIUM COBALT MAGNETS magnetic analyzer



 Production Process





high SAMARIUM COBALT MAGNETS magnetic analyzer

FOR QUOTATION, PLEASE WRITE TO US WITH THE FOLLOWING INFORMATION:

  1. PRODUCT NAME
  2. GRADE
  3. SIZE
  4. SHAPE
  5. COATING
  6. ORDER QUANTITY

 WE HAVE SERVICE AND CUSTOMER CARE CENTRES IN FRANCE AND INDIA
