Descriptions
Features:
1) Propertities: Gs-7 ( Iso rolled), Gs-10 (Iso extruded),
Gs-10 ( semi-aniso rolled), etc.

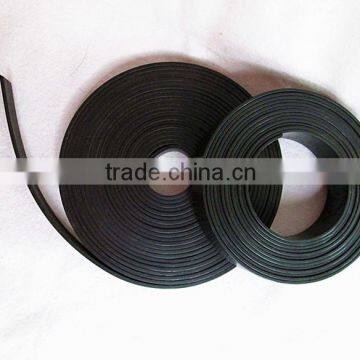

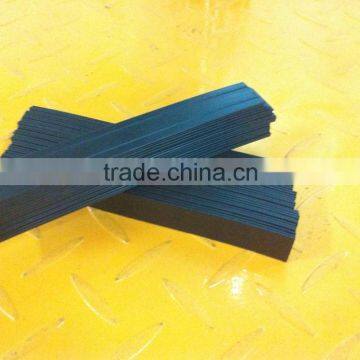

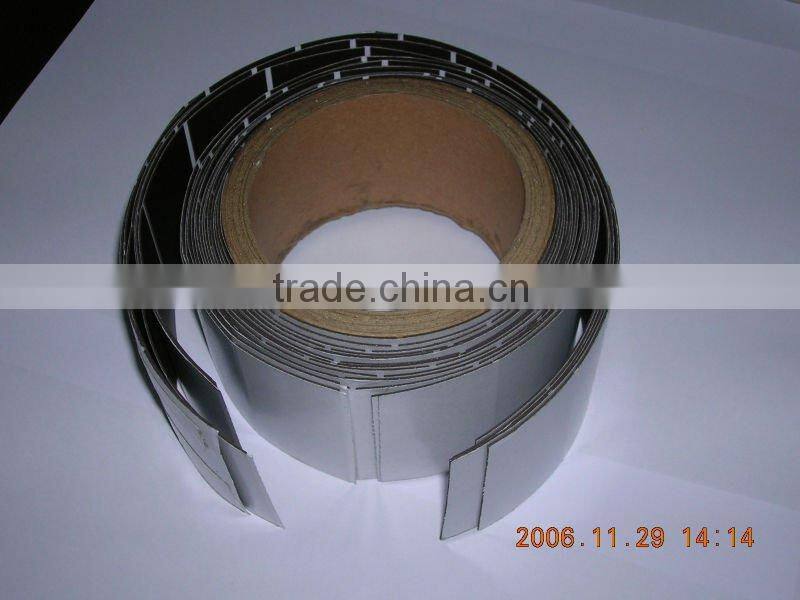

2) Shapes: strip, roll, block, etc.
3) Usage: micro-motor, fridge, disinfecting cupboard, toy, stationery, and etc.
4) Output: 100MT/month
5) Dimensions:
Max width: 620mm
Min thickness: 0.4mm
Max thickness: 7mm.....
Applications
Widely used in many fields, such as Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc.
Specifications
Magnetic property parameters of Ferrite
Grade Properties |
Enterprise standard |
QC Y30 |
QC Y35H-1 |
QC Y35H-2 |
QC Y35H-3 |
QC Y35H-4H |
MMPA |
|
C8 |
C8D |
C8B |
|
|
TDK |
|
FB4B |
|
FB4D |
FB4G |
|
Br (mT)(Gs) |
Type |
395(3950) |
405(4050) |
400(4000) |
415(4150) |
380(3800) |
min |
385(3850) |
395(3950) |
390(3900) |
405(4050) |
370(3700) |
|
Hcb (KA/m)(Oe) |
Type |
200(2500) |
255(3200) |
279(3500) |
235(2950) |
286(3600) |
min |
176(2200) |
251(3150) |
236(3300) |
223(2800) |
270(3400) |
|
Hcj (KA/m)(Oe) |
Type |
205(2570) |
263(3300) |
287(3600) |
243(3050) |
342(4300) |
min |
184(2300) |
255(3200) |
275(3450) |
231(2900) |
326(4100) |
|
(BH)max (KJ/m 3 ) (MGOe) |
Type |
29.0(3.7) |
31.2(3.9) |
30.4(3.87) |
32.8(4.1) |
27.2(3.4) |
min |
27.5(3.45) |
29.6(3.7) |
28.8(3.6) |
30.2(3.8) |
25.6(3.2) |
Grade Properties |
Enterprise standard |
QC Y38B |
QC Y38H |
QC Y40E |
QC Y40B |
QCY45E |
QCY45B |
MMPA |
|
C12 |
C9 |
|
|
|
|
TDK |
FB5B |
FB5H |
FB6E |
FB6B |
FB9H |
FB6N |
|
Br (mT)(Gs) |
Type |
420(4200) |
405(4050) |
380(3800) |
420(4200) |
430(4300) |
440(4400) |
min |
410(4100) |
395(3950) |
370(3700) |
410(4100) |
420(4200) |
430(4300) |
|
Hcb (KA/m)(Oe) |
Type |
263(3300) |
298(3750) |
290(3650) |
302(3800) |
330(4150) |
259(3250) |
min |
251(3150) |
287(3600) |
279(3500) |
290(3650) |
318(4000) |
247(3100) |
|
Hcj (KA/m)(Oe) |
Type |
267(3350) |
322(4050) |
398(5000) |
318(4000) |
398(5000) |
263(3300) |
min |
255(3200) |
311(3900) |
382(4800) |
307(3850) |
386(4850) |
251(3150) |
|
(BH)max (KJ/m 3 ) (MGOe) |
Type |
33.4(4.2) |
31.1(3.9) |
27.5(3.4) |
33.5(4.2) |
35.0(4.4) |
36.7(4.6) |
min |
31.8(4.0) |
29.5(3.7) |
25.6(3.2) |
32.6(4.0) |
33.5(4.2) |
35.1(4.4) |
Notes: Dimension unit: mm Material performance: Read the form of material properties.
Curie temperature:450oC Magnetizing force:10K Oe Appearance: Refer to GB9634-88 or MMPA Margin dimension tolerance: Outer diameter: ±2% Inner diameter: ±1.5% for grade AA products;±2% for other products. Height: ±0.10 while outer diameter≤100; ±0.15 while outer diameter > 100.
View more products pictures
Manufactory Photos
Buyer Guide
Grade, shape & size, tolerance, coating requirement, magnetize direction, quantity are necessary details for a good quotation. Please send us drawings to make things clear if the magnet would be particularly customized.
Trading Conditions
1. Sample:We can provide some samples to test.
2. Delivery date:Around 7~20 days after receipt the 30% payment in advance.
3. Shipment terms:there are two shipping methods, one is by sea, and another one is by express, including DHL, UPS, FedEx, TNT and so on.
4. Packing methods:demagnetize packing box (for Air and Express) and normal packing box for sea
Quality Assurance
To ensure the highest quality, R&D center and quality control center are founded. All of our products are manufactured Certificated CE & ISO9001:2008 quality standards.
Welcome to contact us if any help we can do for magnet requirement!
