Home > Metallurgy, Mineral & Energy > Magnetic Material > NdFeB Magnet > Industrial Lifting Magnets

Industrial Lifting Magnets

Name: Industrial Lifting Magnets
Brand: Strong-Magnets
SKU: 133435619

US$ 1 - 2 MOQ: 1000 Units

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Strong-Magnets

Model Number:

NdFeb

Contact Supplier Request Quote Chat Now

Shanghai Strong Magnets Industrial And Commercial Company Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Strong-Magnets

Model Number NdFeb

Type Permanent

Composite NdFeB Magnet

Shape Other, Numerous Shapes

Application Industrial Magnet

Specifications

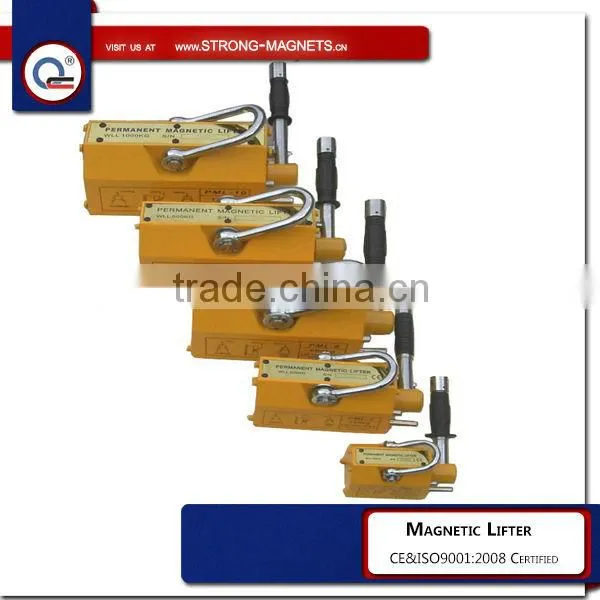

Industrial lifting magnets
Super Strong and Permanent
Manufactured in full compliance with ISO standards

Industrial lifting magnets

Descriptions

NdFeB (neodymium Iron Boron) magnet is the third generation of rare-earth permanent magnet, named “king magnet” for its great performance and competitive price.

It is widely used in modern industry and electronic technology.

Shape

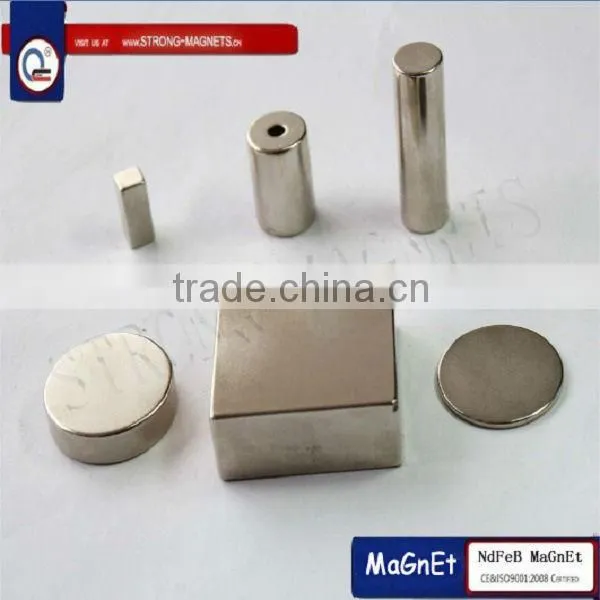

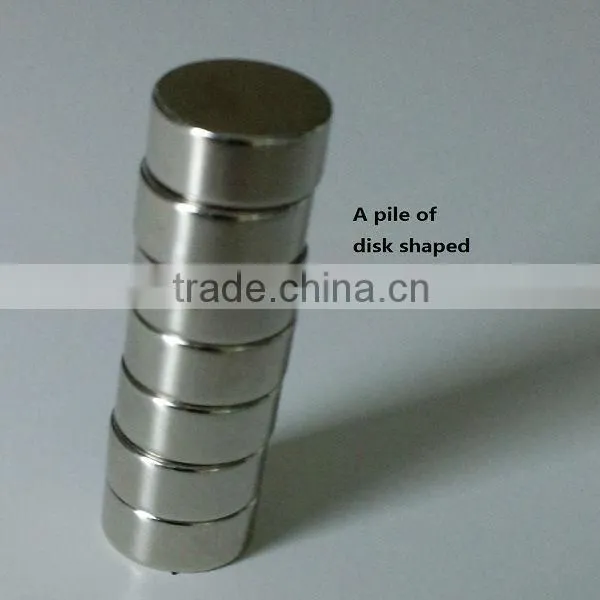

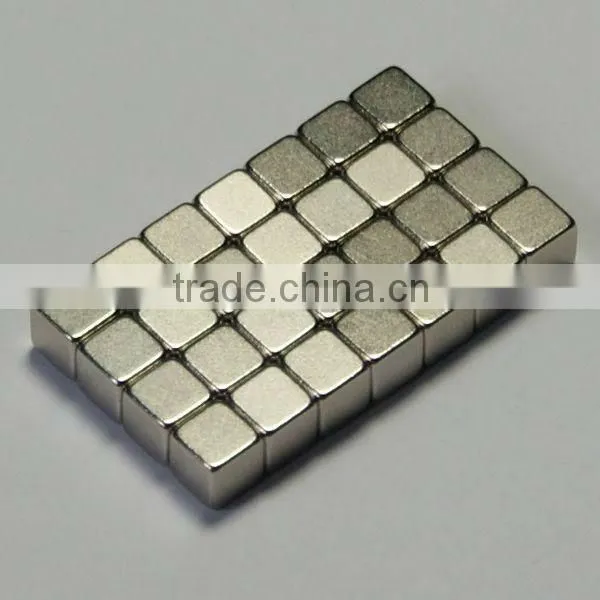

As you can see in the pictures below, we can produce magnets of various shapes.

Commonly used shapes include Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more.

Customized Design (Design proper magnets for clients specific requirements)

Grade

N33, N35, N38, N40, N42, N48, N50, N52 (M, H, SH, EH, UH,AH)

Coating:

Coating is an in alienable component of NdFeb magnets. It prevents these magnets from oxidation.

Widely used coatings are Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation

Performance range of products:

Surface Gauss>5000Gs

Br: 10.4 to 14.3KGs

Hcj: 11 to 35Koe

BHmax: 26 to 53MGOe

Working Temperature: 80°C-220°C

Applications:

Widely used in many fields, such as DC motors, rotors, sensors, wind turbines/wind generators, instruments, VCM, hard driver, loudspeakers, magnetic device&equipment, magnetic hooks, magnetic holder, magnet assemblies, magnetic filters, automobiles, magnetic coupling, MRI (Magnetic Resonance Imaging) and so on.

Specification:

Please choose a Grade from the table below

PROPERTIES OF VARIOUS NEODYMIUM MAGNETS

Material Type	Residual Flux Density	Coercive Force	Intrinsic Coercive Force (Hci)	Max.Energy Product
Material Type	(Br)	(Hc)	Intrinsic Coercive Force (Hci)	(BH)max
N35	11.7-12.1 KGs	>11.0 KOe	>12 KOe	33-35 MGOe
N38	12.2-12.6 KGs	>11.0 KOe	>12 KOe	36-38 MGOe
N40	12.6-12.9 KGs	>11.0 KOe	>12 KOe	38-40 MGOe
N42	13.0-13.2 KGs	>11.0 KOe	>12 KOe	40-42 MGOe
N45	13.3-13.7 KGs	>11.0 KOe	>12 KOe	43-45 MGOe
N48	13.8-14.2 KGs	>11.0 KOe	>12 KOe	45-48 MGOe
N50	14.1-14.5 KGs	>11.0 KOe	>11 KOe	48-50 MGOe
N52	14.5-14.8 KGs	>11.2 KOe	>11 KOe	49.5-52 MGOe
N35M	11.7-12.1 KGs	>11.4 KOe	>14 KOe	33-35 MGOe
N38M	12.2-12.6 KGs	>11.4 KOe	>14 KOe	36-38 MGOe
N40M	12.6-12.9 KGs	>11.4 KOe	>14 KOe	38-40 MGOe
N42M	13.0-13.3 KGs	>11.4 KOe	>14 KOe	40-42 MGOe
N45M	13.3-13.7 KGs	>11.4 KOe	>14 KOe	42-45 MGOe
N48M	13.6-14.2 KGs	>11.4 KOe	>14 KOe	45-48 MGOe
N50M	14.1-14.5 KGs	>11.4 KOe	>14 KOe	48-50 MGOe
N33H	11.4-11.7 KGs	>10.3 KOe	>17 KOe	31-33 MGOe
N35H	11.7-12.1 KGs	>10.8 KOe	>17 KOe	33-35 MGOe
N38H	12.2-12.6 KGs	>11.4 KOe	>17 KOe	36-38 MGOe
N40H	12.6-12.9 KGs	>11.4 KOe	>17 KOe	38-40 MGOe
N42H	13.0-13.3 KGs	>11.4 KOe	>17 KOe	40-42 MGOe
N45H	13.3-13.7 KGs	>11.4 KOe	>17 KOe	42-45 MGOe
N48H	13.6-14.2 KGs	>11.4 KOe	>16 KOe	45-48 MGOe
N30SH	10.8-11.2 KGs	>10.1 KOe	>20 KOe	28-30 MGOe
N33SH	11.4-11.7 KGs	>10.3 KOe	>20 KOe	31-33 MGOe
N35SH	11.7-12.1 KGs	>10.8 KOe	>20 KOe	33-35 MGOe
N38SH	12.2-12.6 KGs	>11.4 KOe	>20 KOe	36-38 MGOe
N40SH	12.6-12.9 KGs	>11.4 KOe	>20 KOe	38-40 MGOe
N42SH	13.0-13.3 KGs	>11.4 KOe	>20 KOe	40-42 MGOe
N45SH	13.3-13.7 KGs	>11.4 KOe	>19 KOe	43-45 MGOe
N28UH	10.4-10.8 KGs	>9.8 KOe	>25 KOe	26-28 MGOe
N30UH	10.8-11.2 KGs	>10.1 KOe	>25 KOe	28-30 MGOe
N33UH	11.4-11.7 KGs	>10.3 KOe	>25 KOe	31-33 MGOe
N35UH	11.7-12.1 KGs	>10.8 KOe	>25 KOe	33-35 MGOe
N38UH	12.2-12.6 KGs	>11.4 KOe	>25 KOe	36-38 MGOe
N40UH	12.6-12.9 KGs	>11.4 KOe	>25 KOe	38-40 MGOe
N28EH	10.4-10.8 KGs	>9.8 KOe	>30 KOe	26-28 MGOe
N30EH	10.8-11.2 KGs	>10.1 KOe	>30 KOe	28-30 MGOe
N33EH	11.4-11.7 KGs	>10.3 KOe	>30 KOe	31-33 MGOe
N35EH	11.7-12.1 KGs	>10.8 KOe	>30 KOe	33-35 MGOe
N38EH	12.2-12.6 KGs	>10.8 KOe	>30 KOe	36-38 MGOe

Manufacture base:

Quality Assurance:

To ensure the highest quality, R&D center and quality control center are founded. And, all of our products are manufactured based on the ISO9001:2008 quality standards.
