Lifting Electromagnet

Specifications

he specially designed magnetic circuit makes it be able to penetrate the air space of multi-layers and has enough attraction for

MW12 lifting electromagnet  Applications:

The product series is designed as strong permeable magnetic circuit which can penetrate several layers of airspace; suitable for lifting and transferring bundled bar materials as well as heavy duty steel ingots or steel moulds.

MW12 lifting electromagnet Features:

The specially designed magnetic circuit makes it be able to penetrate the air space of multi-layers and has enough attraction force towards the second-layer. It can handle unbundled billets or double-layer billets as well as large-sized ingots, ingot modules and bundled screw-thread steel.



MW12 lifting electromagnet  Main technical data(rated voltage DC-220V, TD-60%)

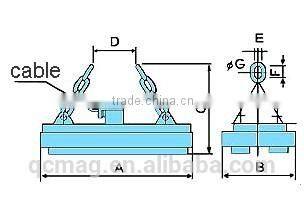

Model	Overall dimension (mm)							Mass (kg)	Current (A)	Power (kw)	Example for lifting capacity four units
	A	B	C	D	E	F	G				Bar material Diameter  ( mm )	Single bundle diameter  (mm)	Length (m)	Weight per bundle  (T)	Bundle amount for lifting
MW12-11590L/G	1150	890	800	300	160	90	28	1450	32	7	16-51	300	9-12	2	3
MW12-14090L/G	1400	870	900	400	160	90	28	1700	41	9	16-51	300	9-12	2	4
MW12-70100L/G	700	1000	800	300	160	90	28	1250	20	4.5	10-32	300	9-12	2.5	2
MW12-10090L/G	1000	900	800	310	160	90	28	1400	30	6.5	10-32	300	9-12	2.5	3
MW12-11090L/G	1100	900	900	300	160	90	28	1500	32	7	9-32	300	9-12	3	3
MW12-15090L/G	1495	924	1045	650	210	120	30	2200	39	8.6	12-40	250-300	9-12	3	4
MW12-180100L/G	1800	1060	1450	650	210	120	30	2500	50	10.2	12-40	300-360	9-12	3	4
