Home > Metallurgy, Mineral & Energy > Magnetic Material > NdFeB Magnet > Ring Y30 Ferrite Magnet

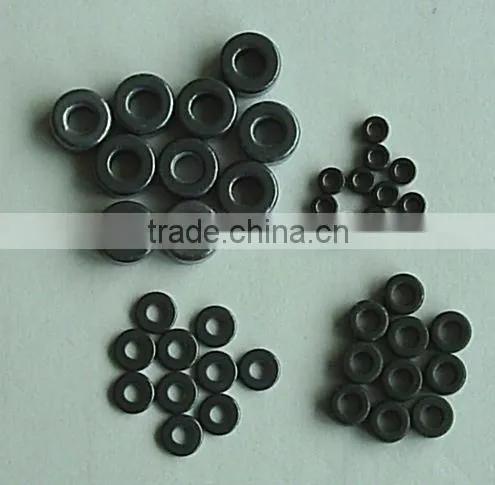

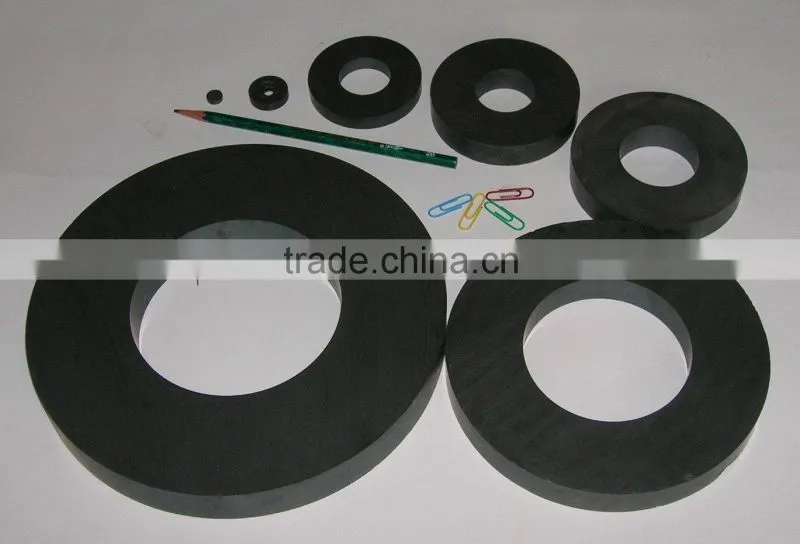

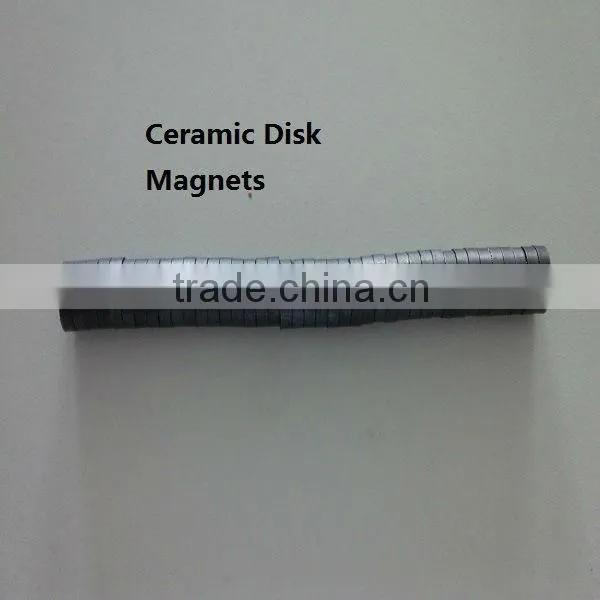

Ring Y30 Ferrite Magnet

Name: Ring Y30 Ferrite Magnet
Brand: QC-Strong- Magnets
SKU: 133435271
Availability: InStock

Negotiable MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

QC-Strong- Magnets

Model Number:

QC- Ferrite-Y1

Contact Supplier Request Quote Chat Now

Shanghai Strong Magnets Industrial And Commercial Company Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name QC-Strong- Magnets

Model Number QC- Ferrite-Y1

Type Permanent

Composite Ferrite Magnet

Shape Other, Different shapes as customer request

Application Industrial Magnet

Specifications

Y30 ferrite magnet
1. Best Magnet at cheapest price
2. Hard and brittle
3. Regular Grade: Y10/Y25/Y30/Y30BH/Y33/Y35

Ferrite magnets

Applications

Widely used in many fields, such as Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc.

Buyer Guide

Grade, shape & size, tolerance, coating requirement, magnetize direction, quantity are necessary details for a good quotation.

Please send us drawings to make things clear if the magnet would be particularly customized.

Trading Conditions

1. Sample: We can provide some samples to test.

2. Delivery date: Around 7~20 days after receipt the 30% payment in advance.

3. Shipment terms: there are two shipping methods, one is by sea, and another one is by express, including DHL, UPS, FedEx, TNT and so on.

4. Packing methods: demagnetize packing box (for Air and Express) and normal packing box for sea

Specifications:

Grade Properties	Enterprise standard	QC Y30	QC Y35H-1	QC Y35H-2	QC Y35H-3	QC Y35H-4H
	MMPA		C8	C8D	C8B
	TDK		FB4B		FB4D	FB4G
Br (mT)(Gs)	Type	395(3950)	405(4050)	400(4000)	415(4150)	380(3800)
Br (mT)(Gs)	min	385(3850)	395(3950)	390(3900)	405(4050)	370(3700)
Hcb (KA/m)(Oe)	Type	200(2500)	255(3200)	279(3500)	235(2950)	286(3600)
Hcb (KA/m)(Oe)	min	176(2200)	251(3150)	236(3300)	223(2800)	270(3400)
Hcj (KA/m)(Oe)	Type	205(2570)	263(3300)	287(3600)	243(3050)	342(4300)
Hcj (KA/m)(Oe)	min	184(2300)	255(3200)	275(3450)	231(2900)	326(4100)
(BH)max (KJ/m 3 ) (MGOe)	Type	29.0(3.7)	31.2(3.9)	30.4(3.87)	32.8(4.1)	27.2(3.4)
(BH)max (KJ/m 3 ) (MGOe)	min	27.5(3.45)	29.6(3.7)	28.8(3.6)	30.2(3.8)	25.6(3.2)

Grade Properties	Enterprise standard	QC Y38B	QC Y38H	QC Y40E	QC Y40B	QCY45E	QCY45B
	MMPA		C12	C9
	TDK	FB5B	FB5H	FB6E	FB6B	FB9H	FB6N
Br (mT)(Gs)	Type	420(4200)	405(4050)	380(3800)	420(4200)	430(4300)	440(4400)
Br (mT)(Gs)	min	410(4100)	395(3950)	370(3700)	410(4100)	420(4200)	430(4300)
Hcb (KA/m)(Oe)	Type	263(3300)	298(3750)	290(3650)	302(3800)	330(4150)	259(3250)
Hcb (KA/m)(Oe)	min	251(3150)	287(3600)	279(3500)	290(3650)	318(4000)	247(3100)
Hcj (KA/m)(Oe)	Type	267(3350)	322(4050)	398(5000)	318(4000)	398(5000)	263(3300)
Hcj (KA/m)(Oe)	min	255(3200)	311(3900)	382(4800)	307(3850)	386(4850)	251(3150)
(BH)max (KJ/m 3 ) (MGOe)	Type	33.4(4.2)	31.1(3.9)	27.5(3.4)	33.5(4.2)	35.0(4.4)	36.7(4.6)
(BH)max (KJ/m 3 ) (MGOe)	min	31.8(4.0)	29.5(3.7)	25.6(3.2)	32.6(4.0)	33.5(4.2)	35.1(4.4)

View More Pictures:

View the Factory Pictures:

Quality Assurance

To ensure the highest quality, R&D center and quality control center are founded. All of our products are manufactured Certificated CE & ISO9001:2008 quality standards.

Welcome to contact us if any help we can do for magnet requirement!
