Home > Metallurgy, Mineral & Energy > Magnetic Material > NdFeB Magnet > Shanghai Strong Magnets Ferrite Magnet for Water Pumps

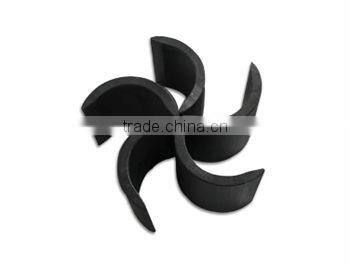

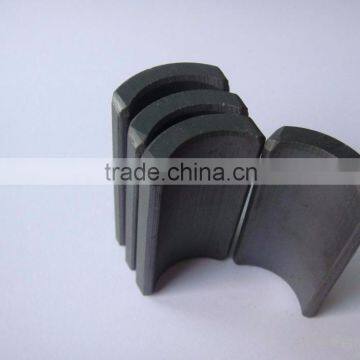

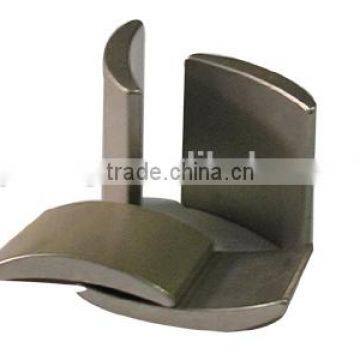

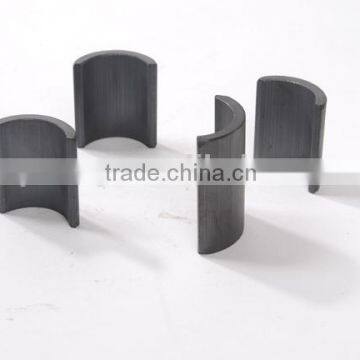

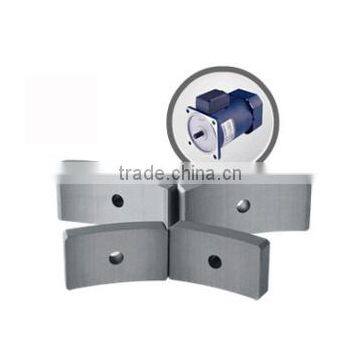

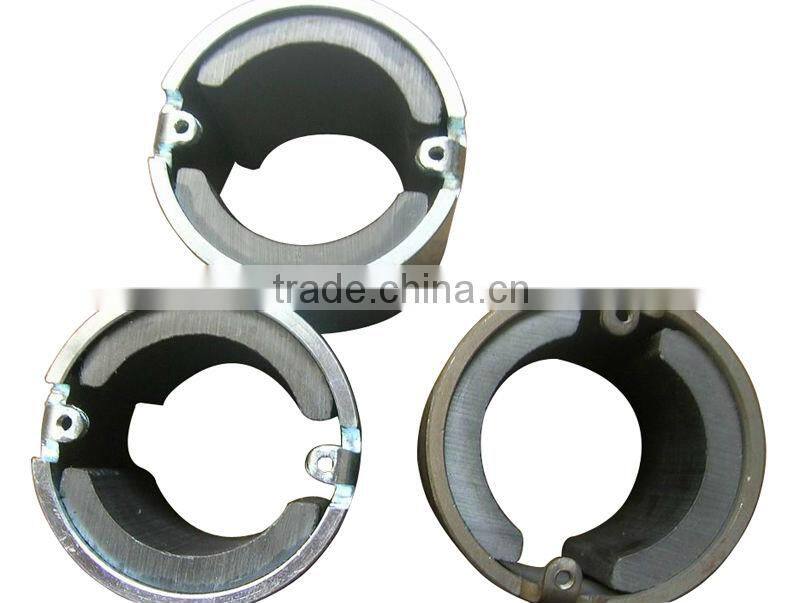

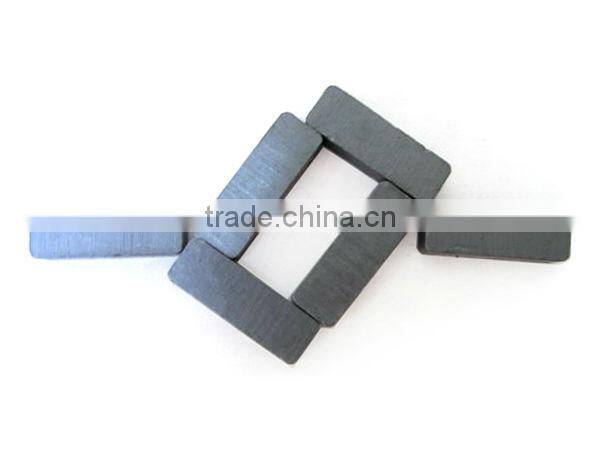

Shanghai Strong Magnets Ferrite Magnet for Water Pumps

Name: Shanghai Strong Magnets Ferrite Magnet for Water Pumps
Brand: QC-Strong Magnets
SKU: 133435183
Availability: InStock

Shanghai Strong Magnets Ferrite Magnet for Water Pumps thumbnail-1

Shanghai Strong Magnets Ferrite Magnet for Water Pumps thumbnail-2

Shanghai Strong Magnets Ferrite Magnet for Water Pumps thumbnail-3

Shanghai Strong Magnets Ferrite Magnet for Water Pumps thumbnail-4

Shanghai Strong Magnets Ferrite Magnet for Water Pumps thumbnail-5

Shanghai Strong Magnets Ferrite Magnet for Water Pumps thumbnail-6

Shanghai Strong Magnets Ferrite Magnet for Water Pumps photo-1

Shanghai Strong Magnets Ferrite Magnet for Water Pumps photo-2

Shanghai Strong Magnets Ferrite Magnet for Water Pumps photo-3

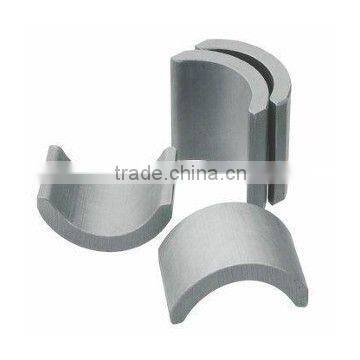

Shanghai Strong Magnets Ferrite Magnet for Water Pumps photo-4

Shanghai Strong Magnets Ferrite Magnet for Water Pumps photo-5

Shanghai Strong Magnets Ferrite Magnet for Water Pumps photo-6

US$ 0.1 - 1 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

QC-Strong Magnets

Model Number:

QC-ferrite-1-P, Y30,Y35H-1,Y35H-2,Y35H-3,Y35H-4H,Y38B,Y38H,Y40E,Y40B,Y45E,Y45B

Contact Supplier Request Quote Chat Now

Shanghai Strong Magnets Industrial And Commercial Company Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name QC-Strong Magnets

Model Number QC-ferrite-1-P, Y30,Y35H-1,Y35H-2,Y35H-3,Y35H-4H,Y38B,Y38H,Y40E,Y40B,Y45E,Y45B

Type Permanent

Composite Ferrite Magnet

Shape Coil

Custom shaped bonded ferrite magnet

Descriptions

A low cost alternative to other magnetic materials, offers relatively high operating temperatures and good resistance to corrosion & demagnetization. However, it has lower energy levels (Br) and is brittle in nature.

Ferrite magnet block 1) Strong magnetic force 2) High intrinsic coercive force 3) Wide application

Ferrite magnet block

Magnetic Feature:

1) Material: SrO OR BaO and Fe2o3

2) Grade:Y10T,Y20,Y25,Y30,Y30BH,Y35,C1,C5,C8,C8B,C9,C10,C11 and so on.

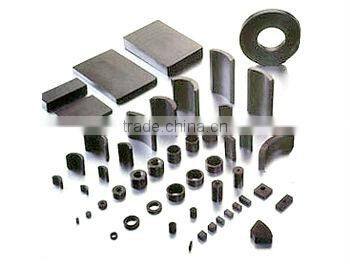

3) Shape: ring,block,disc,bar and so on;

4) Size: according to customers' request;

5) According to customer's request .We can supply different size magnetic hook.

6) Good quality with competitive price and best delivery date.

7) Application: sensors,motors, rotors, wind turbines,wind generators, loudspeakers,magnetic holder, filters automobiles and so on.

8) Certificate: ISO9001:2000, SGS test report

Applications

Widely used in many fields, such as Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc.

Specifications

Magnetic property parameters of Ferrite

Grade Properties	Enterprise standard	QC Y30	QC Y35H-1	QC Y35H-2	QC Y35H-3	QC Y35H-4H
	MMPA		C8	C8D	C8B
	TDK		FB4B		FB4D	FB4G
Br (mT)(Gs)	Type	395(3950)	405(4050)	400(4000)	415(4150)	380(3800)
Br (mT)(Gs)	min	385(3850)	395(3950)	390(3900)	405(4050)	370(3700)
Hcb (KA/m)(Oe)	Type	200(2500)	255(3200)	279(3500)	235(2950)	286(3600)
Hcb (KA/m)(Oe)	min	176(2200)	251(3150)	236(3300)	223(2800)	270(3400)
Hcj (KA/m)(Oe)	Type	205(2570)	263(3300)	287(3600)	243(3050)	342(4300)
Hcj (KA/m)(Oe)	min	184(2300)	255(3200)	275(3450)	231(2900)	326(4100)
(BH)max (KJ/m 3 ) (MGOe)	Type	29.0(3.7)	31.2(3.9)	30.4(3.87)	32.8(4.1)	27.2(3.4)
(BH)max (KJ/m 3 ) (MGOe)	min	27.5(3.45)	29.6(3.7)	28.8(3.6)	30.2(3.8)	25.6(3.2)

Grade Properties	Enterprise standard	QC Y38B	QC Y38H	QC Y40E	QC Y40B	QCY45E	QCY45B
	MMPA		C12	C9
	TDK	FB5B	FB5H	FB6E	FB6B	FB9H	FB6N
Br (mT)(Gs)	Type	420(4200)	405(4050)	380(3800)	420(4200)	430(4300)	440(4400)
Br (mT)(Gs)	min	410(4100)	395(3950)	370(3700)	410(4100)	420(4200)	430(4300)
Hcb (KA/m)(Oe)	Type	263(3300)	298(3750)	290(3650)	302(3800)	330(4150)	259(3250)
Hcb (KA/m)(Oe)	min	251(3150)	287(3600)	279(3500)	290(3650)	318(4000)	247(3100)
Hcj (KA/m)(Oe)	Type	267(3350)	322(4050)	398(5000)	318(4000)	398(5000)	263(3300)
Hcj (KA/m)(Oe)	min	255(3200)	311(3900)	382(4800)	307(3850)	386(4850)	251(3150)
(BH)max (KJ/m 3 ) (MGOe)	Type	33.4(4.2)	31.1(3.9)	27.5(3.4)	33.5(4.2)	35.0(4.4)	36.7(4.6)
(BH)max (KJ/m 3 ) (MGOe)	min	31.8(4.0)	29.5(3.7)	25.6(3.2)	32.6(4.0)	33.5(4.2)	35.1(4.4)

Notes:
Dimension unit: mm
Material performance: Read the form of material properties.

Curie temperature:450oC Magnetizing force:10K Oe
Appearance: Refer to GB9634-88 or MMPA
Margin dimension tolerance:
Outer diameter: ±2%
Inner diameter: ±1.5% for grade AA products;±2% for other products. Height: ±0.10 while outer diameter≤100; ±0.15 while
outer diameter > 100.

View more products pictures

Manufactory Photos

Buyer Guide

Grade, shape & size, tolerance, coating requirement, magnetize direction, quantity are necessary details for a good quotation. Please send us drawings to make things clear if the magnet would be particularly customized.

Trading Conditions

1. Sample:We can provide some samples to test.

2. Delivery date:Around 7~20 days after receipt the 30% payment in advance.

3. Shipment terms:there are two shipping methods, one is by sea, and another one is by express, including DHL, UPS, FedEx, TNT and so on.

4. Packing methods:demagnetize packing box (for Air and Express) and normal packing box for sea

Quality Assurance

To ensure the highest quality, R&D center and quality control center are founded. All of our products are manufactured Certificated CE & ISO9001:2008 quality standards.
