Home > Products > spiral wrap > China factory cable wire tidy
China factory cable wire tidy
- 10 Ton / Tons per Month
- Tianjin or according to customer
- T/T L/C D/P D/A
Product Details
Place of Origin: | Hebei, China | Brand Name: | HAO |
Product Description
cable wire tidy can be used in excavator,paver,roller,loader,pumping machinery and also some other molding equipment.
Its function is to enhance the wear resistance an ultraviolet resistance of hydraulice hose,in various harsh environment protection of hydrarlic hose.
Product name | cable wire tidy |
Material | PP, PE, PA |
Producing way | Extrusion |
Hardness | 85A-90A |
Temperature resistance | -40°C-120°C |
Tensile Strength | 25MPa at normal temperature, 30MPa at -40 °C |
Impact Strength | 35KJ/sqm at normal temperature, 5KJ/sqm at -40 °C |
Inner diameter | 8mm-200mm |
Outer diameter | 10mm-300mm |
Shape | convex surface and flat surface |
Color | any color |
Application | Mainly installed in the hydraulic hose, wire and cable products external. |
Craft: | Best Vulcanization and Microwave courting |
Packaging |
(1) 2 meters/root discharge a layer and two layers are separated by the thin cardboard in a carton (200*40*20mm). (2) Length per customer's requirement in one roll. (3) According to customer requirements. |
Specification:
Part Number | Size (ID) | Wall Thickness(mm) | Width(mm) | Bundle Diameter Range(mm) | |
mm | inch | ||||
DY-08 | 8 | 5/16" | 1.1 | 7.0 | 8-12 |
DY-10 | 10 | 3/8" | 1.1 | 10.0 | 9-11 |
DY-12 | 12 | 1/2" | 1.1 | 12.0 | 11-14 |
DY-14 | 14 | 11/20" | 1.5 | 13.0 | 13-16 |
DY-16 | 16 | 5/8" | 1.5 | 15.5 | 15-18 |
DY-18 | 18 | 3/4" | 1.8 | 16.0 | 17-20 |
DY-20 | 20 | 4/5" | 1.8 | 16.0 | 19-22 |
DY-22 | 22 | 43/50" | 2.0 | 19.5 | 20-26 |
DY-25 | 25 | 1" | 2.0 | 22.5 | 25-29 |
DY-28 | 28 | 1-1/10" | 2.0 | 23.0 | 28-32 |
DY-30 | 30 | 1-9/50" | 2.0 | 23.0 | 30-35 |
DY-32 | 32 | 1-1/4" | 2.2 | 23.5 | 32-38 |
DY-35 | 35 | 1-19/50" | 2.2 | 24.0 | 35-40 |
DY-38 | 38 | 1-1/2" | 2.5 | 28.0 | 38-40 |
DY-40 | 40 | 1-29/50" | 2.5 | 28.0 | 39-42 |
DY-42 | 42 | 1-13/20" | 2.5 | 28.0 | 42-49 |
DY-45 | 45 | 1-39/50" | 3.0 | 28.0 | 45-52 |
DY-50 | 50 | 2" | 3.0 | 28.0 | 50-60 |
DY-60 | 60 | 2-1/2" | 3.0 | 28.0 | 60-74 |
DY-74 | 74 | 2-9/10" | 4.0 | 46.5 | 70-85 |
DY-80 | 80 | 3-3/20" | 4.5 | 48.5 | 80-85 |
DY-88 | 88 | 3-1/2" | 4.5 | 50.0 | 85-98 |
DY-100 | 100 | 4" | 4.5 | 57.0 | 95-135 |
DY-130 | 130 | 5" | 4.5 | 50.0 | 130-155 |
DY-150 | 150 | 6" | 5.0 | 50.0 | 150-175 |

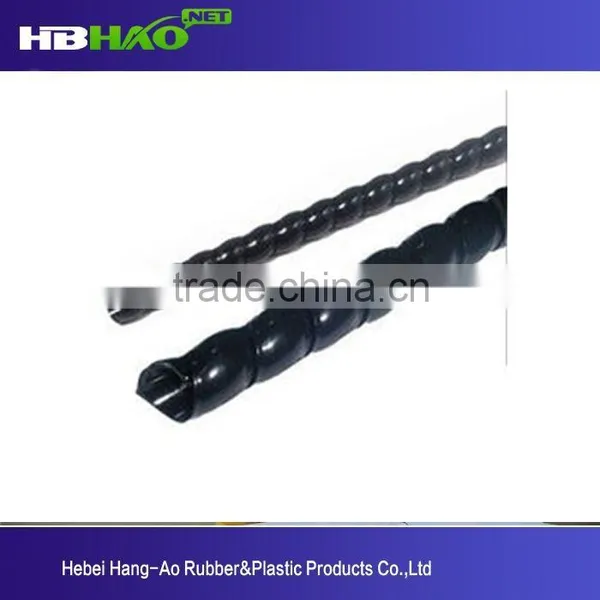

The pictures are just samples of cable wire tidy . We can manufacture as customer's drawings or requirements.
We are factory.
For the same product, we have lower price.
For the same service, we are more reliable.
We can produce the cable wire tidy as your requirements.
If you have any questions, please contact with us, and we will reply ASAP.
