Leadsun LS-70KV/0.5mA High Voltage Power Supply Laser Testing

Leadsun LS-70KV/0.5mA High Voltage Power Supply Laser Testing thumbnail-1
Leadsun LS-70KV/0.5mA High Voltage Power Supply Laser Testing thumbnail-2

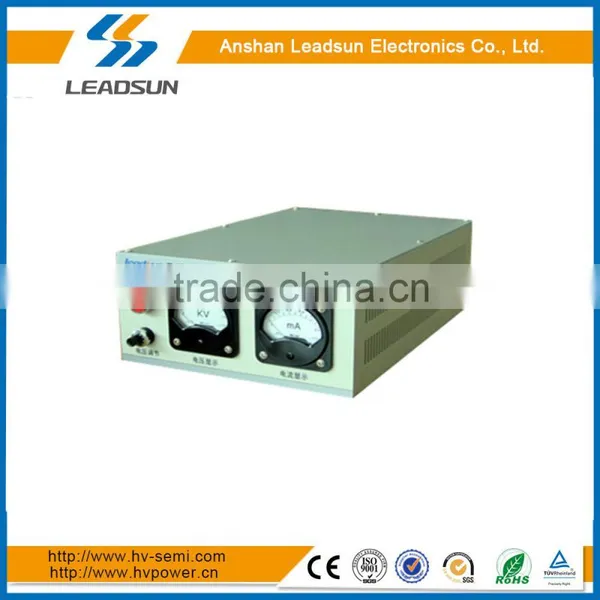

Leadsun LS-70KV/0.5mA High Voltage Power Supply Laser Testing photo-1

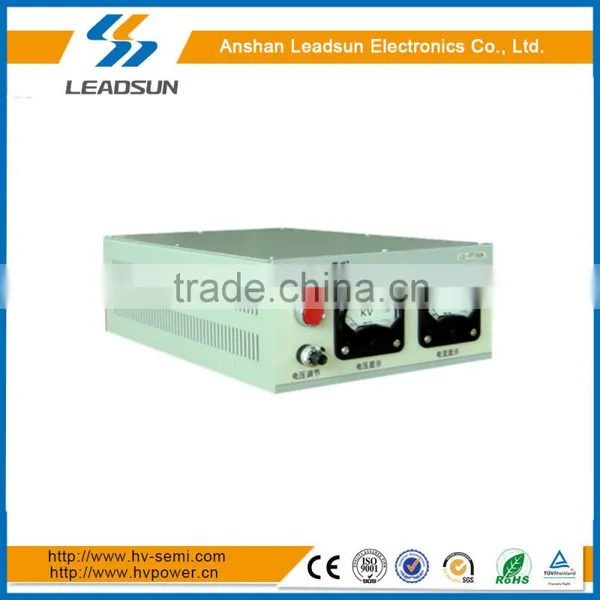

Leadsun LS-70KV/0.5mA High Voltage Power Supply Laser Testing photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
Leadsun
Model Number:
LS-70KV/0.5mA
Contact Supplier Request Quote Chat Now
Anshan Leadsun Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name Leadsun
Model Number LS-70KV/0.5mA
Input Voltage 220V
Output Voltage 70KV
Output Power 35W
Output Frequency 60kHz
Output Current 0.5mA
Product Description

High Frequency High Voltage Power Supply

LS-70KV/0.5mA Specifications

Items
Parameters
Remarks
Input voltage
220V AC
Wave less than 10%
Rated power
35W
Full load, output Umax, Imax
Rated output voltage
70KV
Rated output current
0.5mA
Relative voltage control accuracy
1.5%
Uo=80%*Umax
Absolute voltage control accuracy
3%
Uo=80%*Umax
Voltage/temperature coefficient
20V/1K
Voltage program accuracy
Better than 5%
Voltage output range
0 ~ 70KV adjustable
Direct high voltage out put, no panel control
Output limiting current
0.5mA
Control response time
Better than 50mS
Ambient temperature
-20 ~ 50℃
Ambient humidity
10%-90% no atomization
Cooling
Air cooling
Starting
Soft start
Constant voltage control mode
Phase shift PWM
Current contro; mode
Constant current of average value
Peak value testing
Within 100nS overlanding, cut off and restart automatically
Working Frequency
60kHz
Exchanging frequency
Better than 70%
Output voltage from 50%-75%,
efficienc 80%-90%
Voltage regulation rate
1%
Dimension
480*133*500mm (3U)
L*B*H
Current voltage program mode
By potentiometer
Related Products
Packing & Shipping

Packing:1 in wooden box

Certifications
Patent
No.
Industrial waste gas treatment of high frequency high voltage power supply
ZL 2013 2 0269785.3
EHV adjustable ventilation load device
ZL 2012 2 0096537.9
High frequency high power pulse laser power supply
ZL 2012 2 0099007.x
Combined PCB high-voltage load device
ZL 2012 2 0098995.6
High frequency voltage multiplier assembly
ZL 2012 2 0099008.4
Dry type high frequency high voltage transformer
ZL 2012 2 0098417.2
Power resistive load test device
ZL 2012 20096569.9
High power high voltage plug
ZL 2012 2 2299106.8

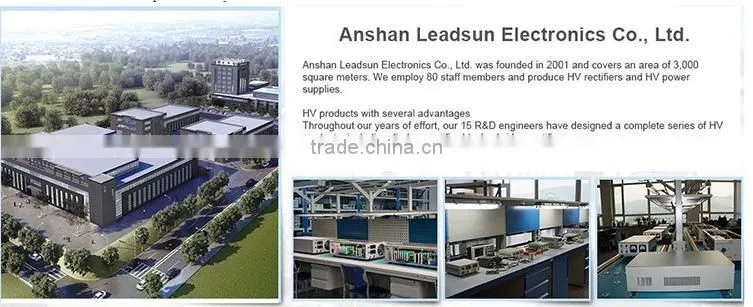

Campony & Services

·Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports

 including design,operation, adjustment and failure analysis.
·Leadsun has latest standard product assembly series, including worldwide popular product series, and special cusomized

 series. There are thousands of types and models for your choosing
·Leadsun technical center record every order and product characteristics; sales department focus on market development

 tendency, will supply you full service.
·leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success.

 We keep focusing on product innovation and development to stay ahead in the industry.
·Year 2014, Leadsun will move to new industrial cener,new platform, new hope,dream starts here.
