Leadsun 2CL20KV/0.2A High Voltage Rectifier Blocks High Voltage Generator

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Port Dalian
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China	Brand Name	Leadsun
Model Number	2CL200KV0.2A	Type	Silicon Controlled Rectifier
Application	Other, electrostatic cleaning	Package Type	Throught Hole
Peak Repetitive Reverse Voltage	200.0V	Peak Non-Repetitive Reverse Voltage	220.0V

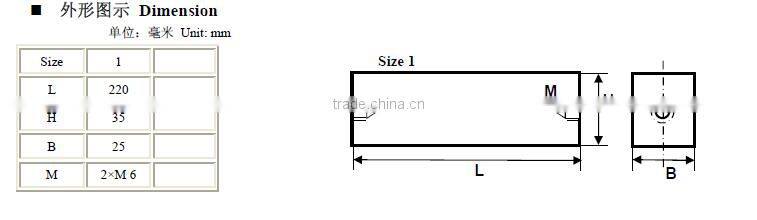

Mean On-State Current	0.2A	Dimensions	2203525mm

Product Description

Product Descripition

Leadsun 2CL20KV/0.2A high voltage rectifier blocks High voltage generator

High voltagerectifier blocks using high reliable mesa structure and diffusion craftwork, epoxy resin molded in compact structure.

Feature:

Avalance characteristic

More sizes available

Vacuum molded, non-corrosive epoxy resin case

Tj: -40℃~+120℃

Application:

High voltage rectifier used in electrostatic cleaning

High voltage testing equipment

General purpose high voltage rectifier

Extreme (Absolute Maximum Rating)

Item	Symbol	Unit	Conditions	Voltage
Repetitive Peak Reverse Voltage	VRRM	KV	Ta=25℃ IR=0.2μA	200.0
Peak working Reverse Voltage	VRWM	KV	Ta=25℃ IR=0.2μA	200.0
Non-Repetitive Peak Reverse Voltage	VRSM	KV	Ta=25℃ IR=0.2μA	220.0
Average Forward Current	Io	A	50HZ Half-sine Wave, Resistance load @Tbreak=50℃	0.2
Surge Forward Output Current	IFSM	A	0.01S @ Half-Sine Wave 50HZ	4.0
Operating Ambient Temperature	Ta	℃		-40~120
Junction and Storage Temperature	Tstg	℃		-40~120

Electrical Characteristics (Ta=25℃)

Forward Peak Voltage	VFM	V	@Ta=25℃ IF=0.2A	240.0
Peak Reverse Current	IRRM1	μA	@Ta=25℃ VRM=VRRM	5.0
Peak Reverse Current	IRRM2	μA	@Ta=100℃ VRM=VRRM	75.0

Related Products

Packing & Shipping

Packing: 200 pcs in one bag, 25 bags in one carton

Certifications

Patent	No.
Industrial waste gas treatment of high frequency high voltage power supply	ZL 2013 2 0269785.3
EHV adjustable ventilation load device	ZL 2012 2 0096537.9
High frequency high power pulse laser power supply	ZL 2012 2 0099007.x
Combined PCB high-voltage load device	ZL 2012 2 0098995.6
High frequency voltage multiplier assembly	ZL 2012 2 0099008.4
Dry type high frequency high voltage transformer	ZL 2012 2 0098417.2
Power resistive load test device	ZL 2012 20096569.9
High power high voltage plug	ZL 2012 2 2299106.8

Campony & Services

·Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports

including design,operation, adjustment and failure analysis.
·Leadsun has latest standard product assembly series, including worldwide popular product series, and special cusomized

series. There are thousands of types and models for your choosing
·Leadsun technical center record every order and product characteristics; sales department focus on market development

tendency, will supply you full service.
·leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success.

We keep focusing on product innovation and development to stay ahead in the industry.
·Year 2014, Leadsun will move to new industrial cener,new platform, new hope,dream starts here.
